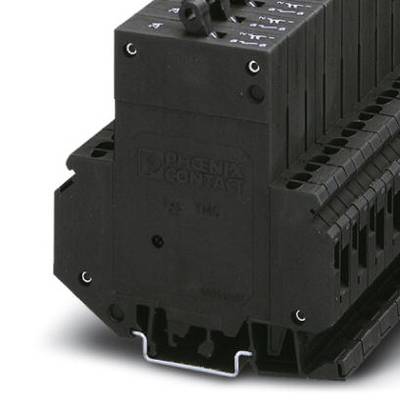

Phoenix Contact 0915069 TMC 2 M1 120 10,0A RCCB 250 V AC 10 A 3 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 3 pc(s))
Total (€ 117.37 / piece)
€
Highlights & Details
Thermomagnetic device circuit breaker TMC 2 M1 120 10,0A
- Industrial packaging with 3 pcs.
Technical specifications
- Connection
Screw terminal
- Switching voltage
250 V AC
- Switching current (max.)
10 A
- Factory colour
Black
- Width
12.5 mm
- Type
TMC 2 M1 120 10,0A
- Content
3 pc(s)
- Dim
(L x W) 83.5 mm x 12.5 mm
- Industrial packaging
Yes
- RoHS-compliant
- Length
83.5 mm
- Switch/button features
thermal
- Switching voltage
250 V
- Switching current
10 A
- Connection
Screw connection
- Product type
RCCB
Documents & Downloads
Datasheet
Datasheet 457002 Phoenix Contact 0915069 TMC 2 M1 120 10,0A RCCB 250 V AC 10 A 3 pc(s)
User & Safety Instructions
User & Safety Instructions 457002 Phoenix Contact 0915069 TMC 2 M1 120 10,0A RCCB 250 V AC 10 A 3 pc(s)
Description
Thermomagnetic circuit breaker, 2-pos., normal blow, 1 N/O contact and 1 N/C contact, with universal foot for mounting on NS 32 or NS 35
Hints
Special order, no right of withdrawal.
