Buy Phoenix Contact 1868076 Screw terminal 4.00 mm² Number of pins 2 1 pc(s)

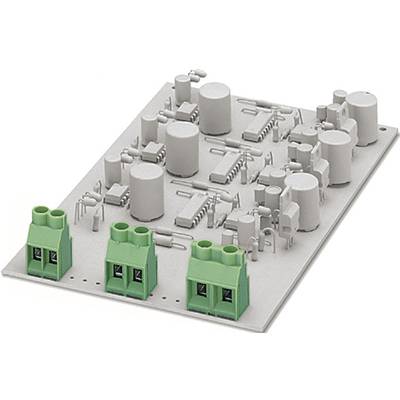

Electronic circuit with multiple components, including numerous cylinders and green terminals on a rectangular circuit board.

Image similar

Product type

Screw terminal

7.62 mm

Pins per row

Number of pins

Connection

Screw terminal

Datasheet (PDF)

Show alternatives

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 2.09 / piece)

€

Report legal concerns

Highlights & Details

Screw terminal block

Content 1 pc(s)

Technical specifications

Type: MKDS 5/ 2-7,62

Product type: Screw terminal

Features: + extractor sleeve

CS: 7.62 mm

No. of rows: 1

Pins per row: 2

Number of pins: 2

Series: MKDS

Min. stripping length: 8 mm

Stripping length (max.): 8 mm

Connection: Screw terminal
Print

Nominal current: 32 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 32 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 4.00 mm²

Cross section (inflexible) (max.): 6.00 mm²

AWG (min.): 24

Connector orientation: Parallel (to the PCB)

AWG max.: 10

Contact material: Tin plated

Wire protection: Yes

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 1868076

Industrial packaging: Yes

Content: 1 pc(s)

Nominal voltage: 630 V

Width: 26.60 mm

Height: 19.05 mm

Length: 15.24 mm

Type: MKDS 5/ 2-7,62

Pins: 2

Connection: -
