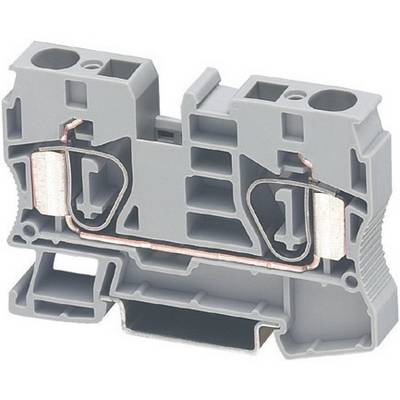

Phoenix Contact 3036110 ST 10 Tension Spring Feed-through Terminal ST Grey
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
16 mm²
Nominal current - rounded value
57 A
Datasheet (PDF)
96 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.35
10
7% = € 0.25
€ 3.10
25
10% = € 0.35
€ 3.00
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.35 / piece)
€
Highlights & Details
Phoenix Contact 3036110 ST 10 Tension Spring Feed-through Terminal ST Grey
- ST 10
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
24
- AWG max.
8
- Clamp width
10.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
1000 V
- Stripping length (max.)
18 mm
- Manufacturer part #
3036110
- Content
1 pc(s)
- Industrial packaging
No
- Type
ST 10
- Dim
(L x W x H) 71.5 x 10.2 x 50.3 mm
- Width
10.2 mm
- Height
50.3 mm
- Length
71.5 mm
- Weight
0.03
- Flammability rating
V0
- Nominal current (details)
57 A
- Connector cross section
flexible wires 0.2 x 10 mm² · rigid wires 1.5 -16 mm² mm²
- Connection
-
Documents & Downloads
Datasheet
Datasheet 744702 Phoenix Contact 3036110 ST 10 Tension Spring Feed-through Terminal ST Grey
User & Safety Instructions
User & Safety Instructions 744702 Phoenix Contact 3036110 ST 10 Tension Spring Feed-through Terminal ST Grey
Description
ST tension spring feed-through terminals have a space-saving design and provide optimum handling. The front connection on the ST series means that there is additional room between the cable channels for wiring. The double bridge shaft allows individual chain bridging using plug jumpers.
