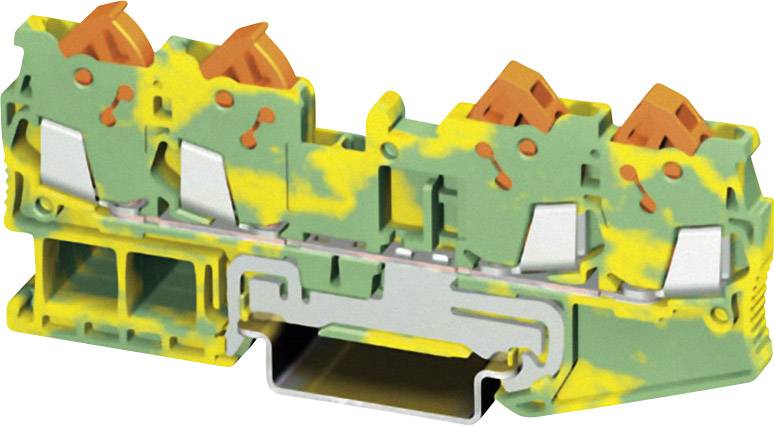

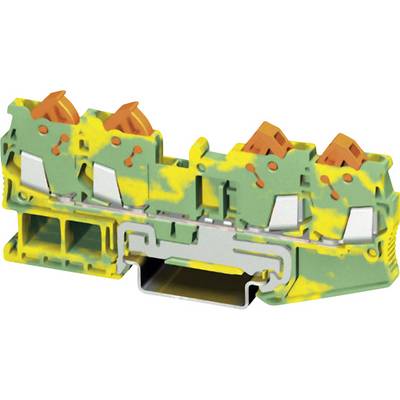

Phoenix Contact 3205093 Triple port PG terminal 5.2 mm Quick-connect Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Connection
Quick-connect
Cross section (flexible) (min.)
0.25 mm²
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (min.)
0.25 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
5
6% = € 0.41
€ 6.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€
Technical specifications
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
24
- AWG max.
16
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
4
- Factory colour
Green
Yellow
- Nominal current - rounded value
- Manufacturer part #
3205093
- Content
1 pc(s)
- Industrial packaging
No
- Type
QTC 1,5-QUATTRO-PE
- Dim
(L x W x H) 94 x 5.2 x 39.3 mm
- Width
5.2 mm
- Height
39.3 mm
- Length
94 mm
- RoHS-compliant
- Insulation
PA
- Insulation material
PA
- Flammability rating
V0
- Connection
-
- Product type
Triple port PG terminal
Documents & Downloads
Datasheet
Datasheet 743979 Phoenix Contact 3205093 Triple port PG terminal 5.2 mm Quick-connect Green, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 743979 Phoenix Contact 3205093 Triple port PG terminal 5.2 mm Quick-connect Green, Yellow 1 pc(s)
Description
Check the current rating of supporting rails.
