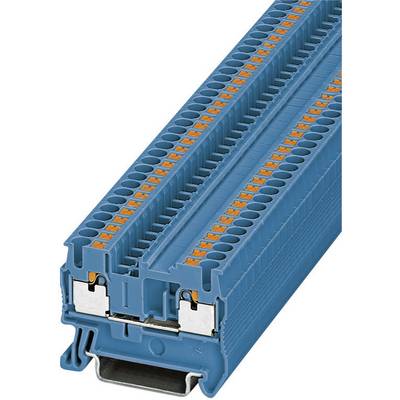

Phoenix Contact PT 2,5 BU 3209523 Continuity Number of pins: 2 0.14 mm² 2.5 mm² Blue 1 pc(s)
EAN:
Part number:
Item no:
Connection
Quick-connect
Cross section (flexible) (min.)
0.14 mm²
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (min.)
0.14 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.08
10
7% = € 0.08
€ 1.00
25
11% = € 0.12
€ 0.96
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.08 / piece)
€
Highlights & Details
Push-In Durchgangs terminals PIT
- PT 2,5 BU
Technical specifications
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3209523
- Content
1 pc(s)
- Industrial packaging
No
- Type
PT 2,5 BU
- Dim
(L x W x H) 48.5 x 5.2 x 35.3 mm
- Width
5.2 mm
- Height
35.3 mm
- Length
48.5 mm
- Weight
0.01
- Material
Polyamide
- Nominal current (details)
24 A
- Flammability rating
V0
- Connection
-
- Product type
Continuity
Documents & Downloads
Datasheet
Datasheet 733325 Phoenix Contact PT 2,5 BU 3209523 Continuity Number of pins: 2 0.14 mm² 2.5 mm² Blue 1 pc(s)
User & Safety Instructions
User & Safety Instructions 733325 Phoenix Contact PT 2,5 BU 3209523 Continuity Number of pins: 2 0.14 mm² 2.5 mm² Blue 1 pc(s)
Description
The Push-In Durchgangs terminals PIT are specially suitable for the direct tool-free wiring of conductors with strands cover or fixed conductors. The terminal point of any type can be opened by screw driver and with the help of actuator push buttons.
