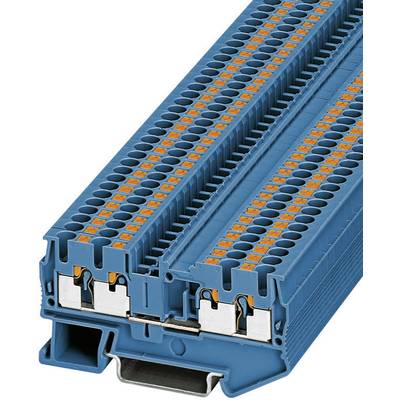

Phoenix Contact 3209581 Continuity 5.2 mm Quick-connect Blue 1 pc(s)
EAN:
Part number:
Item no:
Connection
Quick-connect
Cross section (flexible) (min.)
0.14 mm²
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (min.)
0.14 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
10
7% = € 0.11
€ 1.39
25
11% = € 0.16
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.50 / piece)
€
Technical specifications
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
4
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3209581
- Content
1 pc(s)
- Industrial packaging
No
- Type
PT 2,5-QUATTRO BU
- Dim
(L x W x H) 72.2 x 5.2 x 35.3 mm
- Width
5.2 mm
- Height
35.3 mm
- Length
72.2 mm
- Material
Polyamide
- Nominal current (details)
24 A
- Flammability rating
V0
- Connection
-
- Product type
Continuity
Documents & Downloads
Datasheet
Datasheet 733408 Phoenix Contact 3209581 Continuity 5.2 mm Quick-connect Blue 1 pc(s)
User & Safety Instructions
User & Safety Instructions 733408 Phoenix Contact 3209581 Continuity 5.2 mm Quick-connect Blue 1 pc(s)
Description
The Push-In Durchgangs terminals PIT are specially suitable for the direct tool-free wiring of conductors with strands cover or fixed conductors. The terminal point of any type can be opened by screw driver and with the help of actuator push buttons.
