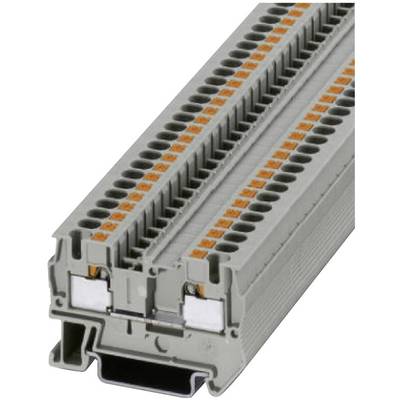

Phoenix Contact 3211757 Continuity 6.2 mm Quick-connect Grey 1 pc(s)
EAN:
Part number:
Item no:
Connection
Quick-connect
Cross section (flexible) (min.)
0.2 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
0.2 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
1895 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.08
10
7% = € 0.08
€ 1.00
25
11% = € 0.12
€ 0.96
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.08 / piece)
€
Technical specifications
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3211757
- Content
1 pc(s)
- Industrial packaging
No
- Type
PT 4
- Dim
(L x W x H) 56 x 6.2 x 35.3 mm
- Width
6.2 mm
- Height
35.3 mm
- Length
56 mm
- Weight
0.0094 kg
- Material
Polyamide
- Nominal current (details)
32 A
- Flammability rating
V0
- Connection
-
- Product type
Continuity
Documents & Downloads
Datasheet
Datasheet 734297 Phoenix Contact 3211757 Continuity 6.2 mm Quick-connect Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 734297 Phoenix Contact 3211757 Continuity 6.2 mm Quick-connect Grey 1 pc(s)
Description
The Push-In Durchgangs terminals PIT are specially suitable for the direct tool-free wiring of conductors with strands cover or fixed conductors. The terminal point of any type can be opened by screw driver and with the help of actuator push buttons.
