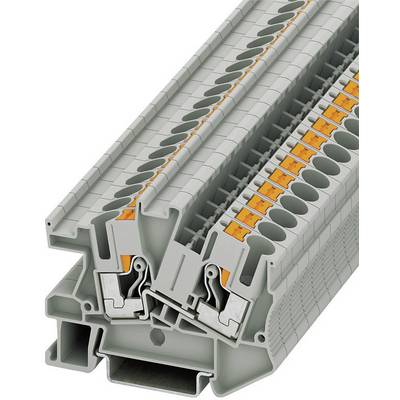

Phoenix Contact 3213972 Terminal 8.2 mm Quick-connect Grey 1 pc(s)
EAN:
Part number:
Item no:
Connection
Quick-connect
Cross section (flexible) (min.)
0.5 mm²
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (min.)
0.5 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
105 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
10
7% = € 0.11
€ 1.39
25
11% = € 0.16
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.50 / piece)
€
Highlights & Details
Installation terminal PTI 6
- PTI 6
Technical specifications
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
10
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
800 V
- Stripping length (max.)
12 mm
- Manufacturer part #
3213972
- Content
1 pc(s)
- Industrial packaging
No
- Type
PTI 6
- Dim
(L x W x H) 66 x 8.2 x 48.5 mm
- Width
8.2 mm
- Height
48.5 mm
- Length
66 mm
- RoHS-compliant
- Flammability rating
V0
- Product type
Terminal
