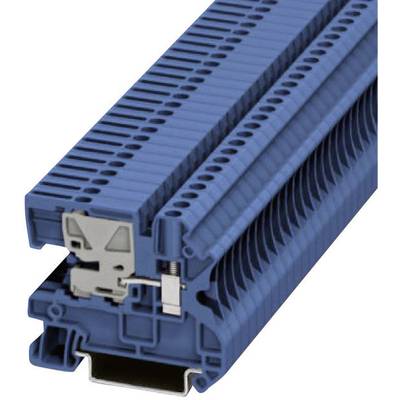

Phoenix Contact 3245024 N terminal Multicolour 1 pc(s)
EAN:
Part number:
Item no:
Cross section (flexible) (min.)
0.14 mm²
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (min.)
0.14 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
Technical specifications
- Load current 32 A in 4 mm² conductor cross section
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- AWG max.
10
- Factory colour
Multicolour
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
250 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3245024
- Content
1 pc(s)
- Type
UTN 4
- Width
6.2 mm
- Nominal voltage (details)
250 V
- Nominal current (details)
32 A
- Connection
-
- Product type
N terminal
