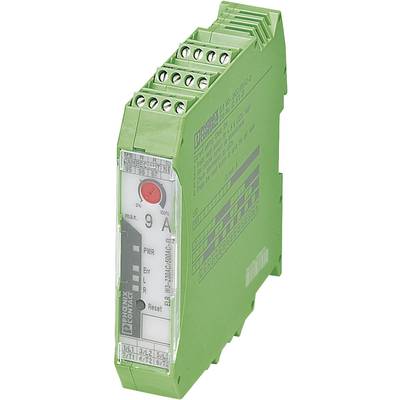

Phoenix Contact ELR W3-230AC/500AC-9I Reversing contactor 230 V AC 9 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reversing contactor
Nominal voltage
230 V AC
Current load
9 A
Connection
Screw terminal
Type
ELR W3-230AC/500AC-9I
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 168.06 / piece)
€ 189.08
-11 %
€
Highlights & Details
"4-in-1" Semi conductor-Reversing contactor CONTACTRON
- Reverse movement/clockwise rotation /motor protection / emergency 4 rifle and 1 thermo element 75% less space required - only 22.5 mm wide.
Technical specifications
- Input power: (by UN 24 V/DC/230 V/AC) Typ. 3/7 mA
- Product type
Reversing contactor
- Type
ELR W3-230AC/500AC-9I
- Nominal voltage
230 V AC
- Control voltage (min.)
85 V AC
- Control voltage (max.)
253 V AC
- Control voltage range
85 - 253 V AC
- Switching voltage (min.)
42 V AC
- Switching voltage (max.)
550 V AC
- Current load
9 A
- Connection
Screw terminal
IP20
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Width
99 mm
- Height
22.5 mm
- Depth
114.5 mm
- Dim
(W x H x D) 99 x 22.5 x 114.5 mm
- Content
1 pc(s)
- Type
Reversing contactor
- Type
ELR W3-230AC/500AC-9I
- Ambient temperature
-25 - +70 °C
- Operating voltage
230 V AC
22.5
107 mm
114 mm
1
1
1.5-9 A
TRUE
92-92 V
92-92 V
IP20
Screw connection
AC
Documents & Downloads
Datasheet
Datasheet 503876 Phoenix Contact ELR W3-230AC/500AC-9I Reversing contactor 230 V AC 9 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 503876 Phoenix Contact ELR W3-230AC/500AC-9I Reversing contactor 230 V AC 9 A 1 pc(s)
Description
These 3 phase electronische tack load relay with power montioring incorporating4 functions in the right protection, left protection, motor protection relay and NOT-FROM-protection categories till 3 to switching, tack and protection from motors till 4KW. This simplifying installation considerably and saves lot of space of the mounting rail. The almost wear-free switching increases the lifespan by 10 times and also the plant availability. Programming of the rated current is only possible after pressing the RESET button for 6 seconds - a subsequent alteration or manipulation by unauthorized persons is nearly impossible. The semiconductor-reversing contactor can be driven directly over the SPS and dispose over remote -signal contacts.
Left -/Right operation : Simple activation,inclusive of interlocking circuit.
Motorprotection:comfortable protection through the electronic motor protection relays with automatic and remote -reset -function (wirestrap automatic after 20 min ,RESET -TASTER or extern Taster).
EMERGENCY STOP: Built-in safety feature allows the use in safety applications.
Left -/Right operation : Simple activation,inclusive of interlocking circuit.
Motorprotection:comfortable protection through the electronic motor protection relays with automatic and remote -reset -function (wirestrap automatic after 20 min ,RESET -TASTER or extern Taster).
EMERGENCY STOP: Built-in safety feature allows the use in safety applications.
Hints
Security level measure SIL 3 (IEC 61508-1), PL e (ISO 13849) and category 3 (EN 954-1). The devices ELR ... I are suitable among others for use in chemical and petrochemical sector.
