Buy Phoenix Contact 2866271 Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)

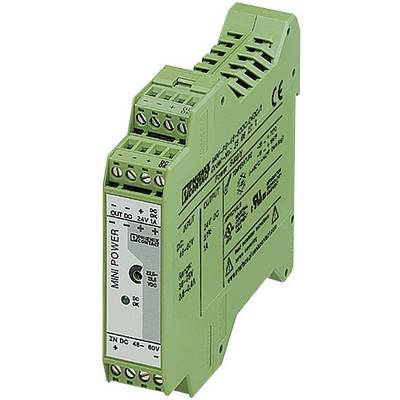

Green electronic module with connectors and label 'MINI POWER'. Used for industrial power supply.

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 234.45 / piece)

€

Report legal concerns

Highlights & Details

Phoenix Contact 2866271 Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)

Modular housing for single appearance in the MSR technology
28.5 V DC / 1 A
24 W
Input 1-phase
Input voltage range 36 - 75 V DC
Connection (components): Screw terminal

Technical specifications

Nominal input voltage: 36 V/DC
48 V/DC
72 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 36 V DC

Output voltage: 24 V DC

Input voltage: 36 - 75 V DC

Input voltage (max.): 75 V DC

Max. output current: 1 A

Output current (max.) - rounded: 1 A

: 24 W

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 22.5 x 99 x 107 mm

Weight: 240 g

Output voltage (max.): 28.5 V DC

Output voltage (min.): 22.5 V DC

Manufacturer part #: 2866271

Content: 1 pc(s)

Width: 22.5 mm

Height: 99 mm

Type: MINI-PS-48-60DC/24DC/1

Depth: 107 mm

: 24 W

Connections: Screw/plug terminals

Output current (details): 1 A

: 22.5

: 99 mm

: 107 mm

: 99 mm

: FALSE

: DC

: Screw connection

: TRUE

: IP20

: Other

Variants(All information is without VAT, plus shipping costs)

Power

Input voltage (max.)

Output voltage (nominal)

Output voltage

Nominal input voltage

No. of outputs

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 2866271 Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:511775

This article

24 W

75 V DC

24 V DC

36 V/DC

1 x

1 A

36 V DC

Phoenix Contact 2866336 Rail mounted PSU (DIN) 24 V DC 3.8 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:104116

240 W

264 V AC

24 V DC

115 V/AC

1 x

3.8 A

85 V AC

Phoenix Contact 2866446 Rail mounted PSU (DIN) 24 V DC 1.3 A 31.2 W No. of outputs:1 x Content 1 pc(s)

Item no:511654

31.2 W

264 V AC

24 V DC

115 V/AC

1 x

1.3 A

85 V AC

Phoenix Contact 2938837 Rail mounted PSU (DIN) 24 V DC 4 A 96 W No. of outputs:1 x Content 1 pc(s)

Item no:511680

96 W

264 V AC

24 V DC

115 V/AC

1 x

4 A

85 V AC

Phoenix Contact MINI-PS-12-24DC/24DC/1 Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:511763

24 W

32 V DC

24 V DC

12 V/DC

1 x

1 A

10 V DC

Phoenix Contact 2904595 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)

Item no:511787

15 W

264 V AC

5 V DC

115 V/AC

1 x

3 A

85 V AC

Phoenix Contact 2938743 Rail mounted PSU (DIN) 15 V DC, -15 V DC 1 A 15 W No. of outputs:2 x Content 1 pc(s)

Item no:511799

15 W

264 V AC

15 V DC

± 15 V DC

115 V/AC

2 x

1 A

85 V AC

Phoenix Contact MINI-PS-100-240AC/10-15DC/8 Rail mounted PSU (DIN) 8 A 96 W No. of outputs:1 x Content 1 pc(s)

Item no:514790

96 W

264 V AC

10 - 15 V DC

115 V/AC

1 x

8 A

85 V AC

Phoenix Contact 2320018 Rail mounted PSU (DIN) 2 A No. of outputs:1 x Content 1 pc(s)

Item no:514792

24 V AC

5 - 15 V DC

12 V/DC

1 x

2 A

12 V AC

Phoenix Contact 2320021 Rail mounted PSU (DIN) 48 V DC 0.7 A No. of outputs:1 x Content 1 pc(s)

Item no:514793

24 V AC

48 V DC

12 V/DC

1 x

700 mA

12 V AC

Documents & Downloads

Datasheet

Datasheet 511775 Phoenix Contact 2866271 Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 511775 Phoenix Contact 2866271 Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)

Description

The Phoenix Contact MINI-PS-48-60DC/24DC/1 power supply has an especially narrow width of just 22.5 mm. A reliable starting of heavy loads is ensured by a power reserve of up to 100% - the POWER BOOST The high operational reliability is also ensured in complex global networks MINI POWER also works in areas where static voltage dips are concerned, transient failures of the supply voltage or phase failure. Large capacitors ensure mains buffering of more than 20 ms under full load.
