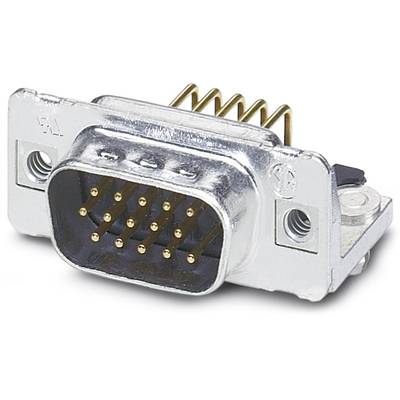

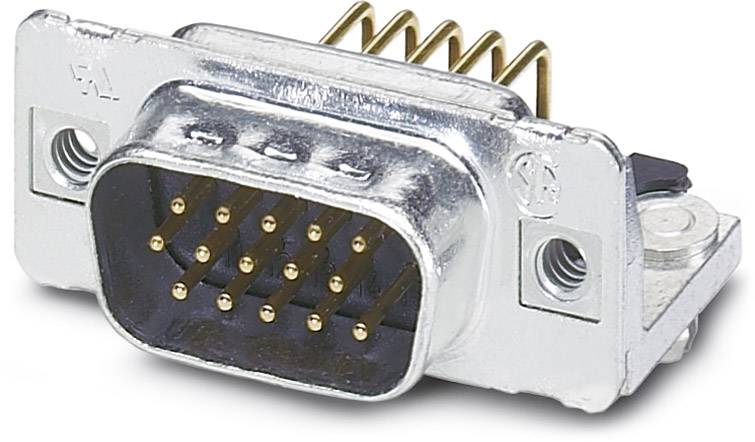

Phoenix Contact VS-09-ST-DSUB-HD-ER 1655098 D-SUB pin strip 90 ° Number of pins: 15 Soldering 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 13.45 / piece)
€
Only 9 Set(s) available
Highlights & Details
D-SUB contact insert VS-09-ST-DSUB-HD-ER
- D-SUB pin strip
- Number of pins: 15
Technical specifications
- Content
10 pc(s)
- Industrial packaging
Yes
- Connection
Soldering
- Manufacturer part #
1655098
- Type
VS-09-ST-DSUB-HD-ER
- Number of pins
15
- Connector type
Plug, horizontal mount
- Connection angle
90°
- RoHS-compliant
- Product type
D-SUB pin strip
Documents & Downloads
Datasheet
Datasheet 773399 Phoenix Contact VS-09-ST-DSUB-HD-ER 1655098 D-SUB pin strip 90 ° Number of pins: 15 Soldering 10 pc(s)
User & Safety Instructions
User & Safety Instructions 773399 Phoenix Contact VS-09-ST-DSUB-HD-ER 1655098 D-SUB pin strip 90 ° Number of pins: 15 Soldering 10 pc(s)
Description
D-SUB contact insert, shell size 1, with 15 signal contacts, contact type pin, for PCB assembly, angled, fixing with 4-40 UNC thread and solder pins, for panel mounting frame VS-09-...
Hints
Special order, no right of withdrawal.
