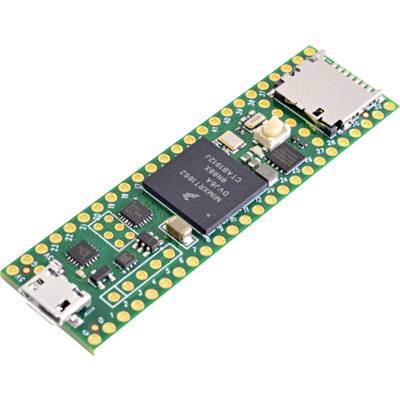

PJRC TEENSY 4.1-L Microcontroller Teensy 4.1 Lock
EAN:
Part number:
Item no:
142 Piece(s)
Sales and shipping:
Number
Total (€ 40.33 / piece)
€
Highlights & Details
Teensy 4.1 micro-controller with "LOCK - FUNCTION"
- ARM CORTEX M7 (600 MHZ)
- 7936 KB Flash memory
- 1024 KB RAM
- USB host port
- LOCK function for firmware
Technical specifications
- ARM Cortex-M7 at 600MHz
- 1024K RAM (512K is tightly coupled)
- 128Mb Flash (64K reserved for recovery & EEPROM emulation)
- USB host port
- 2 additional Flash memory slots
- 3 can-bus (1 with can FD)
- 2 I2S digital audio
- 1 S/PDIF Digital Audio
- 1 SDIO (4 bit) native SD
- 3 SPI, all with 16 word FIFO
- 3 I2C, all with 4 byte FIFO
- 7 Serial, all with 4 byte FIFO
- 32 general-purpose DMA channels
- 31 PWM pins
- 40 digital pins, all interrupt-compatible
- 14 analogue pins, 2 ADCs on the chip
- Cryptographic acceleration
- Random number generator
- RTC for date/time
- Programmable FlexIO
- Pixel processing pipeline
- Peripheral cross-trigger
- Ethernet PHY
- MicroSD card slot
- Power management on/off
- Operating voltage 3.3 to 5V
1024 kB
- Clock speed
600 MHz
- Memory capacity
1024 kB
- Processor cores (No.)
1 x
- Length
61 mm
- Width
18 mm
- Power supply (LOV)
via USB
via DC in
- Output voltage
3.3 V
- Product type
Microcontroller
- MC layout
32-bit
- Interfaces
I²C
I²S
CAN
SDIO
Ethernet
Analogue and digital
Documents & Downloads
Datasheet
Datasheet 3389798 PJRC TEENSY 4.1-L Microcontroller Teensy 4.1 Lock
User & Safety Instructions
User & Safety Instructions 3389798 PJRC TEENSY 4.1-L Microcontroller Teensy 4.1 Lock
Description
The Teensy 4.1 is a powerful micro-controller, fitted with a 600 MHz ARM Cortex-M7 processor, which is characterized by its enormous computing power and versatility.
This version has an integrated Ethernet port for reliable and fast network connections, Ideal for IoT and industrial applications.
In addition, the lock function offers the possibility to permanently protect the firmware against reading and unauthorized access, as a result of which the Teensy 4.1 is especially suitable for security-critical projects and the protection of intellectual property.
This text is machine translated.
This version has an integrated Ethernet port for reliable and fast network connections, Ideal for IoT and industrial applications.
In addition, the lock function offers the possibility to permanently protect the firmware against reading and unauthorized access, as a result of which the Teensy 4.1 is especially suitable for security-critical projects and the protection of intellectual property.
This text is machine translated.
Scope of delivery
- Microcontroller
- Info card
