PQ Plus UMD 707RCM All-purpose tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 844.54 / piece)
€
Highlights & Details

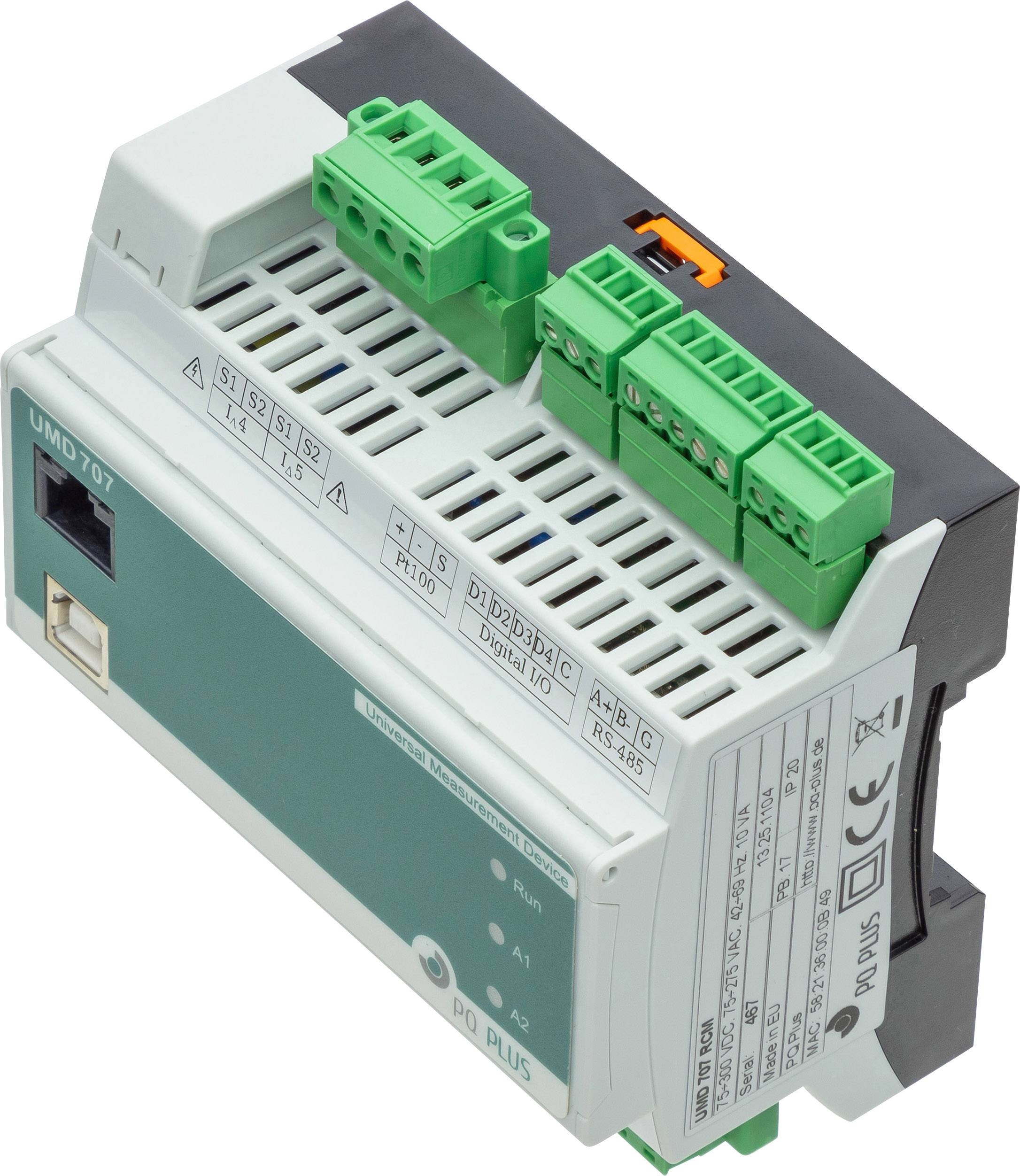

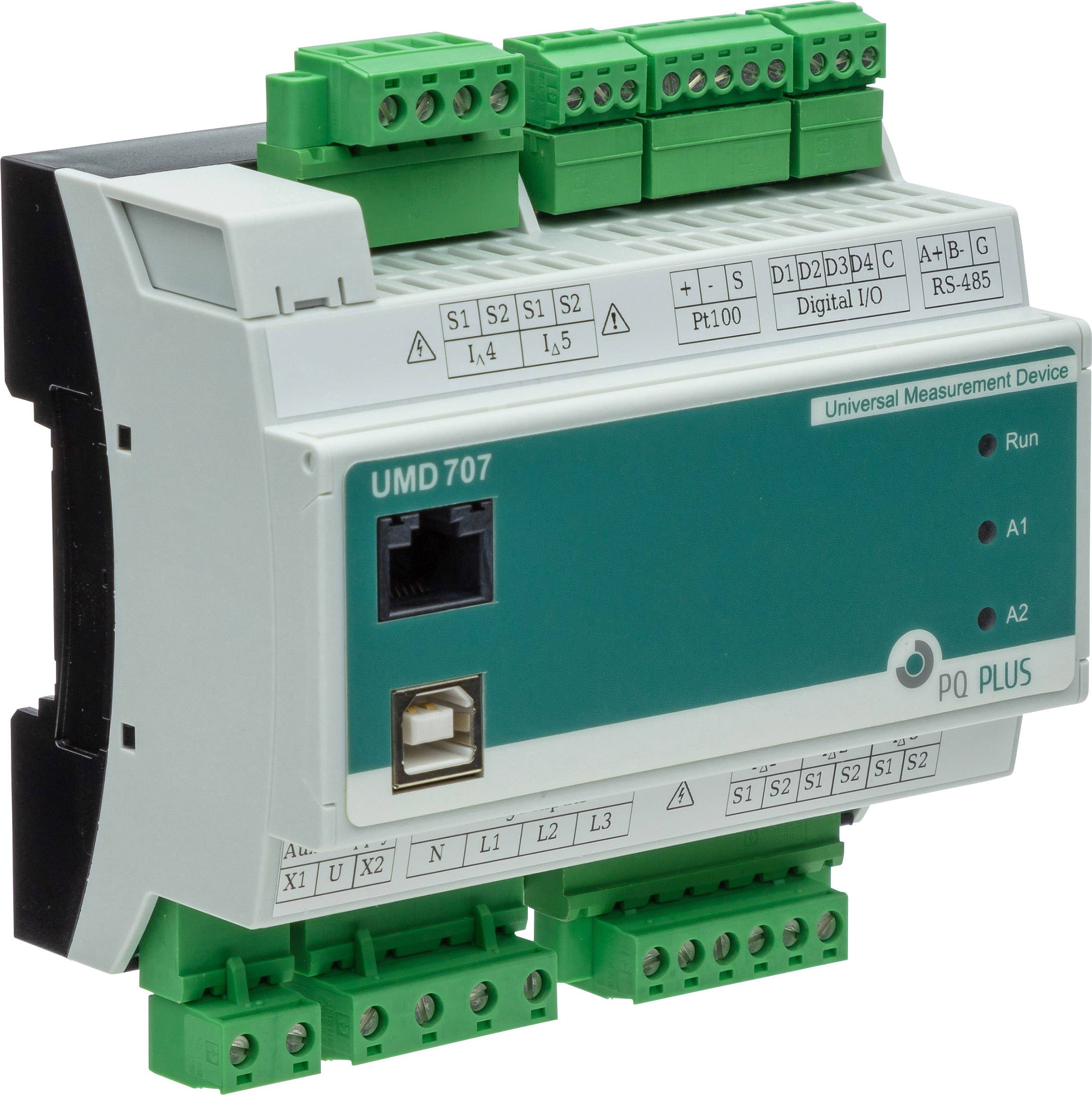

UMD 707RCM Universal measuring device-top hat rail mounting
- Interfaces: RS485, Ethernet, front USB
- 4 digital inputs/outputs
- LCD
- Storage: 512 MB
- 3 voltage, 5 differential current inputs
- 1 PT100 input
- Harmonic for each order 1 - 128 for U/I.
- In conjunction with PQ S module: Measurement and recording of power quality according to DIN EN 50160
Technical specifications
- Product type
All-purpose tester
- Type
UMD 707RCM
IP20
- Dim
(L x W x H) 58 x 107 x 90 mm
- Reading category
CAT III 300 V
- Width
107 mm
- Height
90 mm
- Length
58 mm
Documents & Downloads
Datasheet
Datasheet 2143168 PQ Plus UMD 707RCM All-purpose tester
User & Safety Instructions
User & Safety Instructions 2143168 PQ Plus UMD 707RCM All-purpose tester
Description
The UMD 707RCM is a compact high-end fault current measuring device for mounting on the DIN rail. It measures 5-channel fault currents (type A) and voltage quality (harmonics up to 128. Harmonic; voltage dips 40 μsec). The measurement is carried out via the RCM-CT fault current transformers. The device has a large 512 MB memory. The device can be accessed via the Ethernet interface and live measured values can be viewed via the web browser via the associated web server. This means that Internet protocols such as NTP can also be read in. PLC systems and building control systems can be easily controlled
Connect Modbus TCP. Digital inputs/outputs and a serial RS485 interface are integrated. The GO firmware module enables oscilloscope functions for voltage and sets trigger signals for limit value events. There is also a PT100 input.
This text is machine translated.
Connect Modbus TCP. Digital inputs/outputs and a serial RS485 interface are integrated. The GO firmware module enables oscilloscope functions for voltage and sets trigger signals for limit value events. There is also a PT100 input.
This text is machine translated.
Features
- Measurement:
- VOLTAGE (ULL; ULN) U1; U2; U3, UN, U12; U23; U31 CL. 0.05
- Current Idiff cl.0.05, power active/reactive power import/export per phase L1; L2; L3; per tariff T1; T2; T3
- Effective power P1; P2; P3; PN; 3P Import; Export terminal 0.1
- Reactive power Q1, Q2, Q3; QN; 3Q Cl. 1
- Apparent power S1; S2 ; S3; SN; 3S Cl. 0.2
- Harmonic distortion power D1; D2; D3; DN
- Power factor cos phi PF1, PF2, PF3; PFN, PF, cos phi1, cos phi2, cos phi3 cl. 0.5
- Symmetry yes
- Harmonic voltage THDU1; THDU2; THDU3; THDUN; THDU12; THDU23; THDU31 Cl. 1
- Harmonic current THDI1; THDI2; THDI3; THDIN class 1
- Harmonic for order 1. To 128. For U/I.
- Distortion factor U1fh; U2fh; U3fh; Unfh; I1fh; I2fh; I3fh; Inph
- Frequency 40...70 Hz Cl. 0.02
- Active work 4 quadrants Measurement Import/Export per phase; per tariff; total Cl. 0.2 s.
- Reactive work 4 quadrants Measurement Import/Export per phase; per tariff; total Cl. 2
- Flicker P st; P it cl. 2
- Data logger:
- Memory (Flash) ULN; ULL; I; P; Q; S; D; THDU; THDI; f; UFH; Status I/O.
- Energy active/reactive power import/export per phase L1; L2; L3; per tariff T1; T2; T3
- Voltage dips option: PQ S.
- Oscillogram function Option: Go
- Other functions:
- Logic alarms
- Limit values for overshoot/undershoot
- Digital I/O 4 digital inputs/outputs, 100 V AC/DC, 100 mA;analogueue I/O 1x PT100
- Memory 512 MB Flash
- Recording interval sec; min; h; days; month; year
- Communication:
- RS485 Modbus
- Ethernet 100 MBit/s
- USB
- Electric connection
- SUPPLY VOLTAGE U:85...275 V AC U:20...50 V AC / 20...75 V DC
- Power consumption 10 VA/5 W.
- Overvoltage category CAT III 300 V
- Measuring ranges:
- Measurement voltage 5..1470 V AC
- Overload 2.21 kV LN/1s 1300 V AC U//N continuous
- Impedance 3.9 MOhm
- INPUT SIGNAL X/1//5 A; RCM
- Overcurrent 3x in (max. 70 A/1s)
- Sampling rate 28.8 kHz
- Ambient conditions:
- Temperature range operation T:-20°C...60°C.
- Temperature range bearing T:-30°C...88°C.
- Electromagnetic compatibility
- Radiation EN 61000-4-2...-3...-4...-5...-6...-11
- Irradiation EN 55011 Cl. A, EN 55022 Cl. A
- Protection class: IP20
- Dimensions:
- WxHxD (mm) 107x90x58
Scope of delivery
- UMD 707RCM
- ENVIS Basic
