ProCar DIN-installation standard socket Max. load capacity=16 A Steckdose 12 V, 24 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
3
5% = € 0.41
€ 7.14
5
8% = € 0.58
€ 6.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€
Only 9 Piece(s) available
Highlights & Details

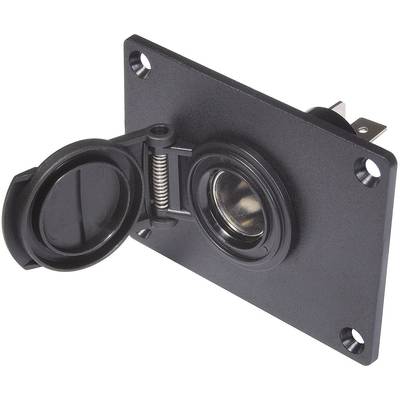

DIN-installation standard socket
- TUV-tested according to DIN EN ISO 4165
- T-flat plug connection 6.3 mm
- Mounting plate and cover
- This text is machine translated.
Technical specifications
- Design type
Steckdose
- Connection
6.3 mm blade terminal
- Operating voltage
12 V
24 V
- Max. load capacity
16 A
- Dim
(L x W) 60 mm x 45 mm
- Depth
45.9 mm
- Length
60 mm
- Width
45 mm
- Inside diameter
12 mm
- No. standard connectors
1 x
- Features
Mounting plate
- Connection A
Blade terminal
- Output
Connector
- Mounting type
Recess-mount
- Temperature range
-40, +80 °C
- Product type
Standard socket
Documents & Downloads
Datasheet
Datasheet 2112754 ProCar DIN-installation standard socket Max. load capacity=16 A Steckdose 12 V, 24 V
User & Safety Instructions
User & Safety Instructions 2112754 ProCar DIN-installation standard socket Max. load capacity=16 A Steckdose 12 V, 24 V
Description
Scope of delivery
- Screws included
