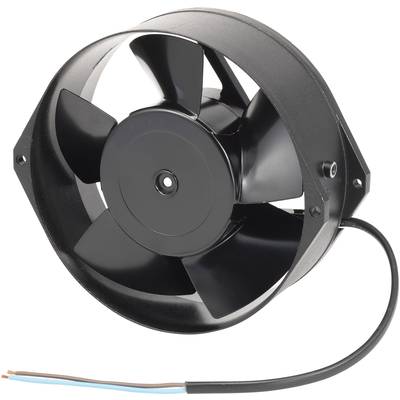

PROFAN Technology P21755HBL-ES Axial fan 230 V AC 382 m³/h (L x W x H) 172 x 151 x 55 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
26 W
Type of bearing
Ball bearing
Air flow rate
382 m³/h
Datasheet (PDF)
521 Piece(s) (Only while stocks last)
Sales and shipping:
Number
Total (€ 38.65 / piece)
€
Technical specifications
- Material (rotor): Steel
- Product type
Axial fan
- Type
P21755HBL-ES
- Nominal voltage
230 V AC
- Min. operating voltage
150 V AC
- Max. operating voltage
250 V AC
- Operating voltage
150 - 250 V AC
- Max. current consumption
110 mA
26 W
- Type of bearing
Ball bearing
- Rotational speed
2750 U/min
- Noise emission (max.)
55 dB
- Air flow rate
382 m³/h
- Connection
Open end cable
- Cable length
31.00 cm
- Factory colour
Black
- Material
Aluminium (die-cast)
20000 h
- Weight
984 g
- Min. temperature
-10 °C
- Max. temperature
+70 °C
- Length
172 mm
- Width
151 mm
- Height
55 mm
- Dim
(L x W x H) 172 x 151 x 55 mm
Documents & Downloads
Datasheet
Datasheet 1408552 PROFAN Technology P21755HBL-ES Axial fan 230 V AC 382 m³/h (L x W x H) 172 x 151 x 55 mm
User & Safety Instructions
User & Safety Instructions 1408552 PROFAN Technology P21755HBL-ES Axial fan 230 V AC 382 m³/h (L x W x H) 172 x 151 x 55 mm
Description
Hints
Indications at 50 Hz.
