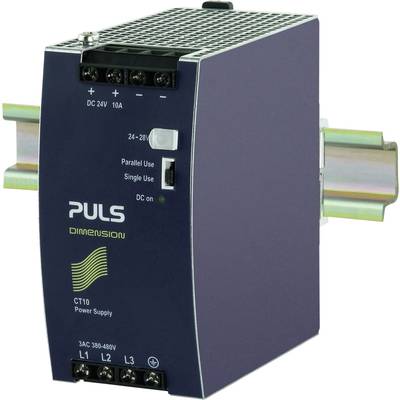

PULS DIMENSION CT10.241 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
17 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 335.29 / piece)
€
Highlights & Details
DIMENSION CT10 DIN rails power supply
- 28 V DC/ 10 A
- 240 W
- Input3 -phase
- Input voltage range 323 - 552 V AC
- Connection (components): Screw terminal
Technical specifications
- Nominal input voltage
400 V/AC
- Type
DIN rail power supply
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
380 V AC
- Output voltage
24 V DC
- Input voltage
323 - 552 V AC
- Input voltage (max.)
480 V AC
- Max. output current
10 A
- Output current (max.) - rounded
10 A
240 W
- Phases
3
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(W x H x D) 62 x 124 x 117 mm
- Weight
750 g
- Output voltage (max.)
28 V DC
- Output voltage (min.)
24 V DC
- Manufacturer part #
CT10.241
- Content
1 pc(s)
- Width
62 mm
- Height
124 mm
- Max. temperature
+70 °C
- Type
DIMENSION CT10.241
- Depth
117 mm
240 W
- Connections
Screw terminal
- Output current (details)
10 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 512793 PULS DIMENSION CT10.241 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions 512793 PULS DIMENSION CT10.241 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)
Description
Cost-efficient power supply with no compromises in quality, reliability, size, and power reserves.
This text is machine translated.
This text is machine translated.
Features
- Two- or three phase input
- AC / DC wide input range
- 20% power reserve (power boost)
- Adjustable output voltage
- Active Switching current limiting
- Full output of -25 till +60 °C
- Large screw terminals
