Buy PULS QS40.241 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)

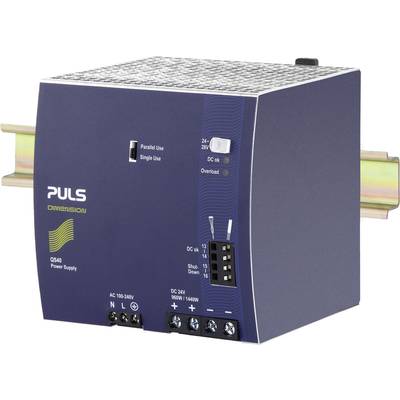

A blue switched-mode power supply from PULS, model QS40, mounted on a DIN rail. It shows connection options and status indicators.

Datasheet (PDF)

6 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 626.05 / piece)

€

Only 6 Piece(s) available

Report legal concerns

Highlights & Details

QS40.241; 1-phase input, 24V, 40A

100-240V wide-range input, active PFC
Efficiency up to 94,6%, parallel mode for load sharing
Negligibly low input inrush current
50% Power reserves available up to 4s
Full output power between -25 and +60°C
DC-OK Contact Shut-down input

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC

Type: DIN rail power supply

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 24 V DC

Inputs: 1

Input voltage: 115/230 V AC

Input voltage (max.): 240 V AC

Max. output current: 40 A

Output current (max.) - rounded: 40 A

: 960 W

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 125 x 124 x 127 mm

Weight: 1900 g

Output voltage (max.): 28 V DC

Output voltage (min.): 24 V DC

Manufacturer part #: QS40.241

Content: 1 pc(s)

Width: 125 mm

Height: 124 mm

Max. temperature: +70 °C

Min. temperature: -25 °C

Type: DIMENSION

Depth: 127 mm

Connections: Screw terminals

Output current (details): 40 A

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

PULS QS40.241 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:1169045

This article

960 W

Screw terminal

240 V AC

24 V DC

115 V/AC

40 A

100 V AC

PULS CPS20.121 Rail mounted PSU (DIN) 12 V DC 30 A 450 W No. of outputs:1 x Content 1 pc(s)

Item no:1169043

450 W

Screw terminal

240 V AC

12 V DC

115 V/AC

30 A

100 V AC

PULS CPS20.361 Rail mounted PSU (DIN) 36 V DC 13.3 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1169044

480 W

Screw terminal

240 V AC

36 V DC

115 V/AC

13.3 A

100 V AC

PULS QS40.481 Rail mounted PSU (DIN) 48 V DC 20 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:1169046

960 W

Screw terminal

240 V AC

48 V DC

115 V/AC

20 A

100 V AC

PULS UB20.241 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1169047

480 W

Screw terminal

30 V DC

24 V DC

26 V DC

115 V/AC

20 A

22.5 V DC

PULS QS5.241-A1 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:1169048

120 W

Spring-loaded terminal

240 V AC

24 V DC

115 V/AC

5 A

100 V AC

PULS QS10.241-A1 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:1169049

240 W

Spring-loaded terminal

240 V AC

24 V DC

115 V/AC

10 A

100 V AC

PULS QS20.241-C1 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1169050

480 W

Spring-loaded terminal

240 V AC

24 V DC

115 V/AC

20 A

100 V AC

PULS QT20.241-C1 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1169051

480 W

Spring-loaded terminal

480 V AC

24 V DC

115 V/AC

20 A

380 V AC

PULS CPS20.241-C1 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1169057

480 W

Screw terminal

240 V AC

24 V DC

115 V/AC

20 A

100 V AC

Documents & Downloads

Datasheet

Datasheet 1169045 PULS QS40.241 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1169045 PULS QS40.241 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)

Description

The outstanding features of the DIN-rail power supply QS241 of the DIMENSION series are the extremely high degree of efficiency and compact design by synchronous, a bridge free PFC-switching and other unique development details can be achieved. A large power reserve of 150% and built-in large output capacitors support the run-heavy loads such as DC motors or capacitive loads. In many cases it enables the use of a device from a lower power class, which saves space and money. The high immunity to transients and surges as well as low electromagnetic interference emissions make the use in almost any environment possible. The built-in input fuse, as well as the inrush current of almost zero simplify installation and use. The diagnosis is through the DC-OK relay, a green DC-OK-LED and the red overload LED easier. Thanks to an extensive international approval package for a variety of applications, this device is suitable for almost any application.

This text is machine translated.
