16234511 RolloTron Comfort DuoFern UW 1800 Rademacher DuoFern Wireless Belt winder Flush mount
EAN:
Part number:
Item no:
Belt winder ROLLOTRON Comfort DuoFern
Highlights & Details
- Remote controlled by DuoFern transmitter
- Ventilation and sun position can be set individually
- Easy approach from intermediate positions
Technical specifications
- Nominal power: approx. 70 W
- Standby consumption: 0.6 W.
- Nominal torque: approx. 10 Nm
- Short-time operation: 4 min
- Overrun< 0.4 U
- II protection rating
- Max. Switching times: 16
- Power reserve (in case of power failure): approx. 8 h
- Transmission frequency 434.5 MHz
- Max. Tractive output:45 kg
- Belt width: 23 mm
- Winding capacity: 7.6 m (6.2 m) at 1.0 mm belt-tape thickness (1.3 mm)
- Zul. shutter surface: approx. 6 m² at 4 kg/m² and approx. 3m² at 7 kg/m²
- Series
Rademacher DuoFern
Alexa
- Transfer Standard (Smart Home)
Manufacturer-specific
- Power supply (LOV)
mains-powered
10 mW
- Data transfer (Smart Home)
Wireless
- Frequency
434 MHz
- Mounting type
Flush mount
- Weight
0
n.rel.
- Data exchange
Bidirectional (bi)
- Hub
Not required, optional for remote access
- Operating voltage
230 V / AC
- Product type
Belt winder
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1078814 16234511 RolloTron Comfort DuoFern UW 1800 Rademacher DuoFern Wireless Belt winder Flush mount
Description

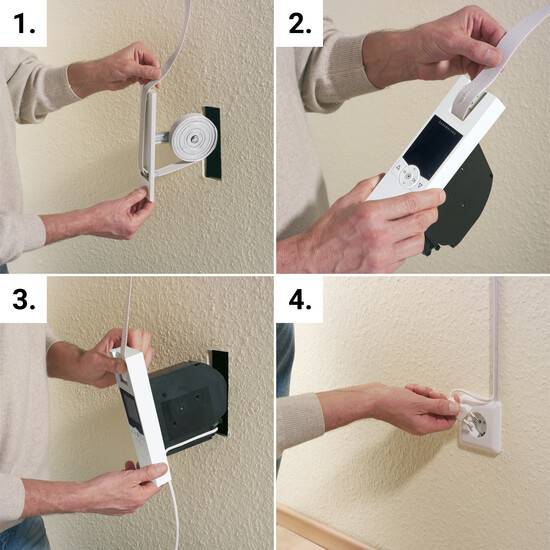

The RolloTron Comfort DuoFern" is an electronic belt take-up reel for flush mounting and can be used universally, because it fits in every common winder boxes from 36 mm width. It is characterised by a quick and simple installation. Assembly and commissioning are performed in about 10 minutes. The operation is carried out via a power plug connection to the 230 V power supply. It is the successor to the Comfort Duo Remote model from the 9800 series of rademacher. The new ROLLOTRON Comfort DuoFern" appears in a modern design with a large, backlit display with contrast setting. He has an installation wizard and has an integrated interface for fast and easy integration into the DuoFern radio system. It is remote controlled by DuoFern transmitter. It can be used as central control automatic commands to the logged-in DuoFern recipients. It has extensive automatic functions such as the daily, weekly, weekend and Astro-program as well as the random function. The ventilation and sun position is freely selectable. Even a simple approach from intermediate positions is possible. The Summer/winter time conversion is done automatically and against unintentional can operate a key lock can be set. The soft start/soft stop function allows for smooth running with high comfort. A sunlight/twilight control is available as an accessory with the S/D-Sensor.
This text is machine translated.
This text is machine translated.
Features
- Automatic mode can be selected in 3 speed levels
- Can be used as a central control for automatic commands logged-in DuoFern receiver
- Installation assistant
- Extensive automatic functions: Random function, Day/Week/weekend- / Astro-program
- Sun/twilight function possible with S/T sensor
- Automatic summer-/winter time changeover.
- Illuminated, large display with contrast setting, key lock
- Permanent data storage even in case of power failure.
Scope of delivery
- Belt winder
- Connection cable
- User manual.
