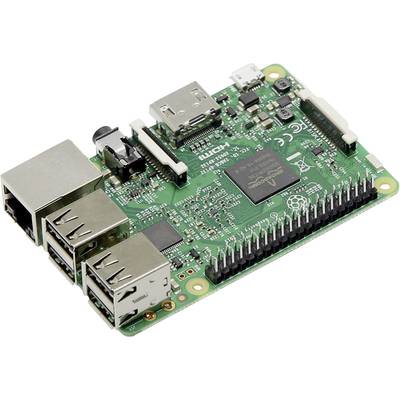

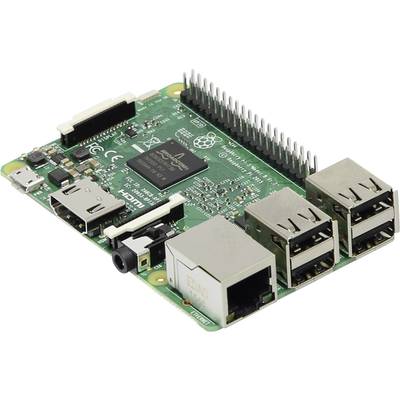

Raspberry Pi® RP-3B Raspberry Pi® 3 B 1 GB 4 x 1.2 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
2871 Piece(s)
Sales and shipping:
Number
Total (€ 34.74 / piece)
€
Highlights & Details
Raspberry Pi® 3 Model B
- Raspberry Pi® 3 with a ARM Cortex A8 64-bit processor (4x 1.2 GHz)
- Wide range of uses: mini PC, server, controller
- Onboard WiFi b/g/n and Bluetooth Low Energy 4.1
- Supports Windows 10 IoT
- Versatile and expandable
Technical specifications
- Type
Raspberry Pi® 3 B
- SoC
Broadcom BCM2837
- Processor
ARM Cortex-A53
- Processor cores (No.)
4 x
- GPU
Broadcom Video Core IV
1 GB
- Clock speed
1.2 GHz
- Memory type
DDR2
- Operating system (Version)
w/o OS
- Internal ports
CSI (camera)
DSI (display)
GPIO (40-pin)
- External ports
4x USB 2.0
LAN (10/100)
3.5 mm jack
HDMI™
micro SD
micro USB (current)
- Wi-Fi
b/g/n
- Bluetooth
4.1
- Power supply (LOV)
via USB
- Output voltage
5 V DC
- Output current
2.5 A
- Length
85 mm
- Width
56 mm
- Height
17 mm
- Motherboard slots
GPI0 port
DSI display
CSI camera
- CPU
ARM Cortex-A53 (4x 1.2 GHz)
- Graphics card
Dual Core VideoCore IV
- Weight
0.10
- Product type
SBC
Documents & Downloads
Datasheet
Datasheet 1419716 Raspberry Pi® RP-3B Raspberry Pi® 3 B 1 GB 4 x 1.2 GHz
User & Safety Instructions
User & Safety Instructions 1419716 Raspberry Pi® RP-3B Raspberry Pi® 3 B 1 GB 4 x 1.2 GHz
Conformity certificate
Conformity certificate 1419716 Raspberry Pi® RP-3B Raspberry Pi® 3 B 1 GB 4 x 1.2 GHz
Description
Raspberry Pi® 3 is a powerful successor to the extremely popular credit card–sized single-board computer. This 3rd-generation Raspberry comes with a high-performance ARM Cortex A7 4x 1.2 GHz quad core processor. This upgrade gives the Pi® 3 way more bite when it comes to a wide range of applications. Also features Wi-Fi and Bluetooth Low Energy to facilitate networking. Pi® 3 board layout and connectivity match Pi® 2 Model B and Pi® B+.
Raspberry Pi® 3 features four USB 2.0 ports, a LAN connection and a HDMI™ output enabling quick hook-up and straightforward operation.
Moreover, versability is one of the Raspberry Pi® 3 strong points. Use it as a mini PC in your living room, play back videos in Full HD via the HDMI™ output, or interconnect the Pi® 3 to other PCBs via the GPIO port to assemble more complex controllers.

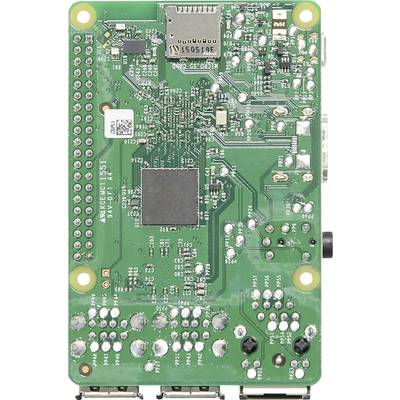

Raspberry Pi® 3 boots and stores data via a microSD card slot on the back side of the PCB. Power supply via micro-USB.
Raspberry Pi® 3 vs. Raspberry Pi® 2 Model B
- ARM Cortex A8 4x 1.2 GHz quad core processor (Raspberry Pi® 2 - ARM Cortex A7 4x 900 MHz CPU)
- Onboard BCM43143 Wi-Fi (Raspberry Pi® 2 - no Wi-Fi)
- Onboard Bluetooth Low Energy (BLE) (Raspberry Pi® 2 - no Bluetooth)
Raspberry Pi® 3 features four USB 2.0 ports, a LAN connection and a HDMI™ output enabling quick hook-up and straightforward operation.
Moreover, versability is one of the Raspberry Pi® 3 strong points. Use it as a mini PC in your living room, play back videos in Full HD via the HDMI™ output, or interconnect the Pi® 3 to other PCBs via the GPIO port to assemble more complex controllers.
Raspberry Pi® 3 boots and stores data via a microSD card slot on the back side of the PCB. Power supply via micro-USB.
Raspberry Pi® 3 vs. Raspberry Pi® 2 Model B
- ARM Cortex A8 4x 1.2 GHz quad core processor (Raspberry Pi® 2 - ARM Cortex A7 4x 900 MHz CPU)
- Onboard BCM43143 Wi-Fi (Raspberry Pi® 2 - no Wi-Fi)
- Onboard Bluetooth Low Energy (BLE) (Raspberry Pi® 2 - no Bluetooth)
Features
- Broadcom BCM2837 ARM Cortex A8 (Cortex A53) 64-bit quad core 4x 1.2 GHz processor
- Dual Core VideoCore IV Multimedia co-processor with a OpenGL ES 2.0 , OpenVG, 1080p30 H.264 high-profile decoder
- 1 GB LPDDR2 RAM
- Supports ARM GNU/Linux and Windows 10 IoT
- BCM43143 WiFi b/g/n
- Bluetooth Low Energy 4.1 (BLE)
- Video outputs: HDMI™
- Audio outputs: 3.5 mm jack, HDMI
- Onboard micro-SD card slot
- Onboard RJ45 (10/100 Ethernet)
- Data storage via microSD card slot
- 4x USB 2.0
- Power supply via micro-USB port (up to 2.4 A)
