Reely Raptor 6S Brushless 1:8 RC model car Electric Buggy 4WD RtR 2,4 GHz
EAN:
Part number:
Item no:
97 Piece(s)
Sales and shipping:
Number
Total (€ 500.00 / piece)
€
Highlights & Details
1:8 Electric Buggy Raptor 6S 4WD RtR
- As well as brutal 6S brushless drive

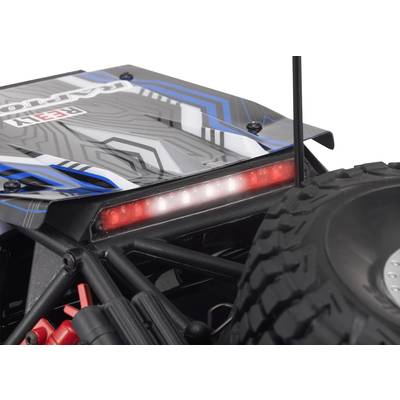

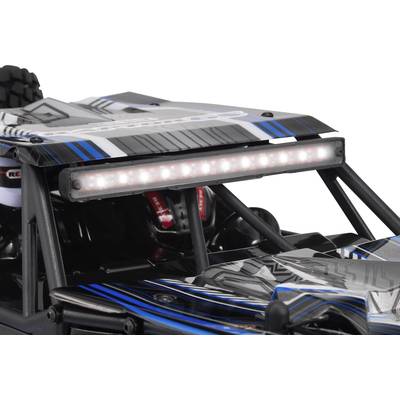

- Super-bright LED-light bar front and rear
- Waterproof 15 kg servo
Technical specifications
- LED bar ( front&rear)
- With roll-cage
- Power by: 3 x 3S
- "6S high performance tyre"
- Motor type
Brushless
- Motor type
6 S 4274 KV 2000
- Dim
(L x W x H) 540 x 340 x 220 mm
- Weight
4580 g
- Age category
14 years and over
- Height
220 mm
- Length
540 mm
- Width
340 mm
- Engine type
Electric
- Model craft type
Buggy
- Scale
1:8
- Remote control
GT2 Evo
- Model
Raptor
- Speed (max.)
100 km/h
- Drive
4WD
- Frequency
2,4 GHz
- Model version
RtR
- Ground clearance
45 mm
- Wheelbase
362 mm
- Track width
284 mm
- Tyre Ø
135 mm
- rear
135 mm
- Tyre width
56 mm
- Product type
RC model car
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1688017 Reely Raptor 6S Brushless 1:8 RC model car Electric Buggy 4WD RtR 2,4 GHz
Information
Information 1688017 Reely Raptor 6S Brushless 1:8 RC model car Electric Buggy 4WD RtR 2,4 GHz
Conformity certificate
Conformity certificate 1688017 Reely Raptor 6S Brushless 1:8 RC model car Electric Buggy 4WD RtR 2,4 GHz
Spare part list
Spare part list 1688017 Reely Raptor 6S Brushless 1:8 RC model car Electric Buggy 4WD RtR 2,4 GHz
Description

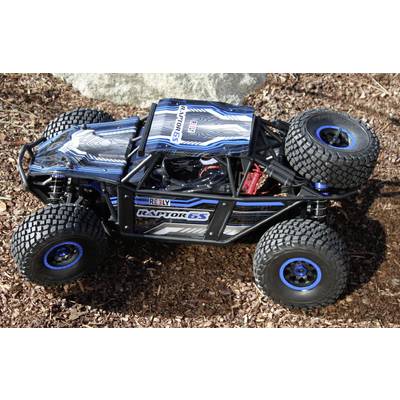

The weapon! Raptor!If you are looking for a new challenge, you are exactly the right one for this vehicle. The tremendous power and speed of the Raptor will teach you this fear. The installed materials such as aluminum, steel and Reinforced-plastic are necessary for the vehicle to withstand this enormous force. The built-in electronic components are waterproof, so that you can move this power range in any weather situation. A wide LED light bar provides for perfect illumination of the track at dusk.Experience the speed noise of up to 100 km/h!
This text is machine translated.
This text is machine translated.
Features

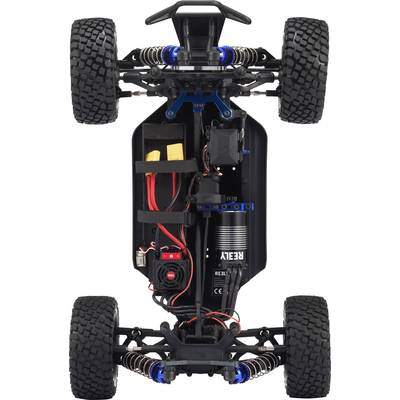

- Aluminum chassis with lateral plastic mud guards
- Body with great details, such as tank lid, fire extinguisher, flag, complete spare tires, driver and co-driver figure, etc.
- Roll bar
- Aluminium steering
- 5 mm aluminum damper bridges
- Pivot ball suspension
- Servo saver
- Robust off-road suspension
- Reinforced plastic parts, such as arm, gearboxes, etc.
- Hardened Steel-Main cog wheel
- Heavy Duty Front CVD drive shaft
- Ball bearings all around
- Reinforced chassis at the front and rear
- Motor mounting screw comfortably from above
- Massive M4 motor attachment screws
- Big Bore aluminum threaded oil pressure shock absorbers adjustable via knurled screws and piston rod protection
- Damper Hoodie
- Sealed differentials filled with silicone oil (7,000 CPS differential front and rear, 10,000 cps central differential)
- Spiral-toothed differential gears with special alloy
- Stabilizer front and rear
- Super-bright LED-light bar front and rear

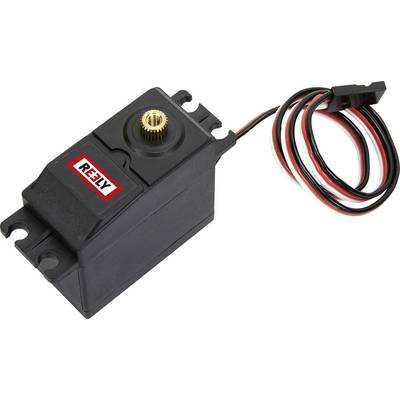

- Waterproof 15 kg steering servo with metal gears and Alu-Servoarm
- 150 A Waterproof electronic speed control with XT-90 connector system
- Universal rechargeable battery holder with Velcro fasteners
- Dust- and splashproof on/off switch
- Special bonded and reinforced 6 S high-performance tire with stable tire inlays.

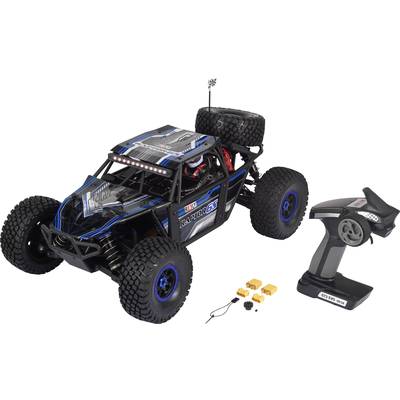

Scope of delivery
- Model car
- Remote control system
- Additional high-speed motor pinion (14 teeth)
- Binding plug
- Printed instructions for the vehicle
- Instructions on CD for remote control system.
Hints
Only with the additionally supplied 14-tooth sprocket is the maximum speed of 100 km/h can be achieved. The use of this motor pinion we recommend that only experienced pilots. Caution: braking distance, this will increase enormously. In addition, a higher load on the components. The vehicle is also capable of 4S (2 x 2S).
