Buy Rigol DP2031 Bench PSU (adjustable voltage) 0 - 32 V DC 0 - 3 A 222 W USB , LAN, RS232 No. of outputs 3 x

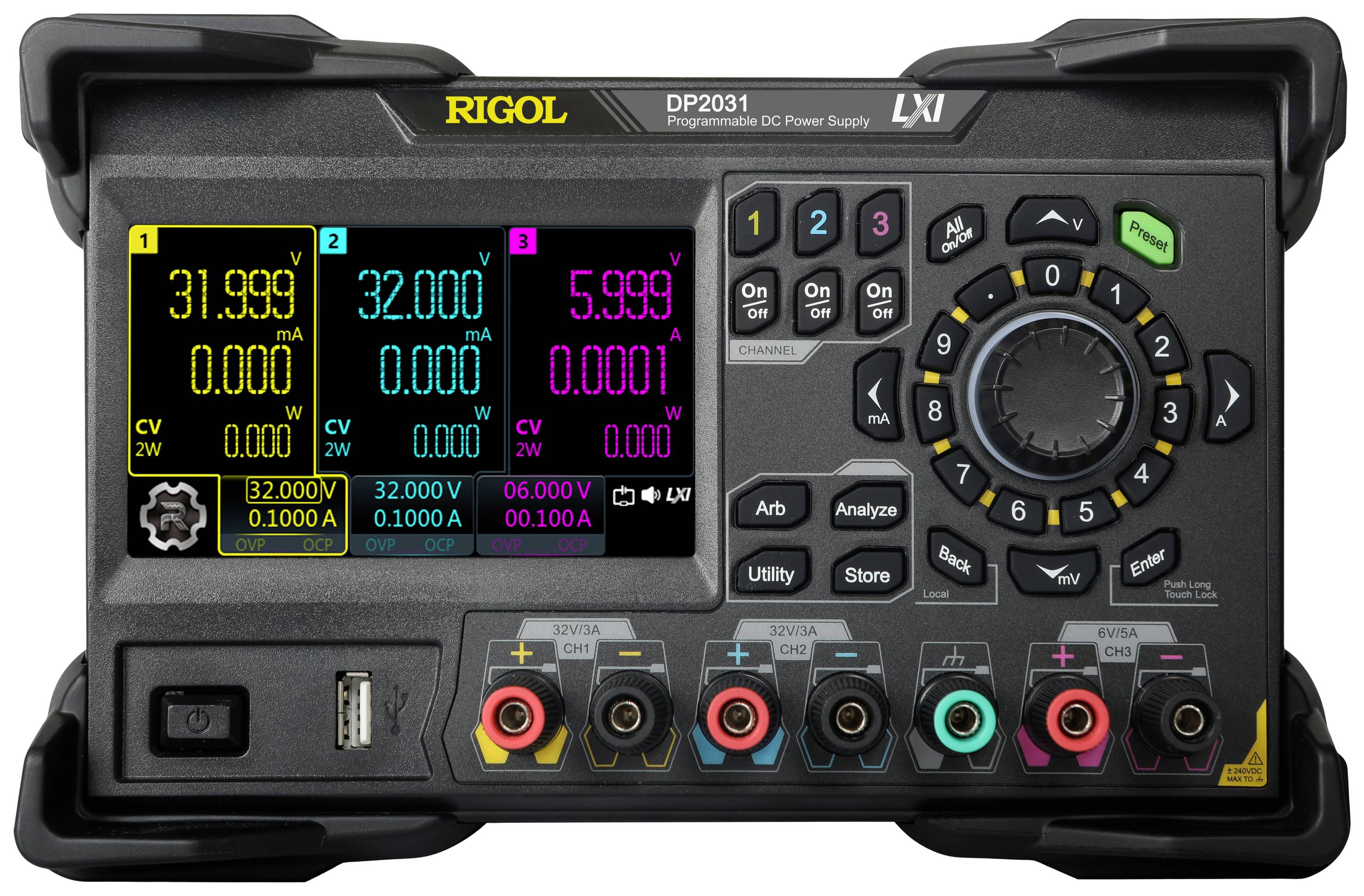

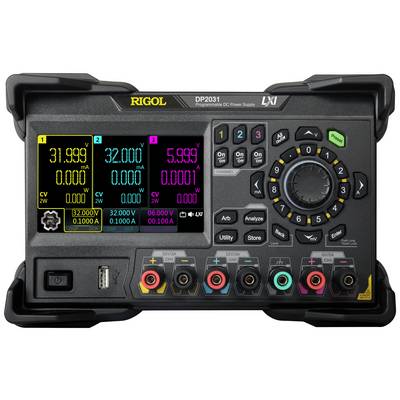

A Rigol DP2031 programmable DC power supply with digital display shows voltages, currents, and power measurements across three channels.

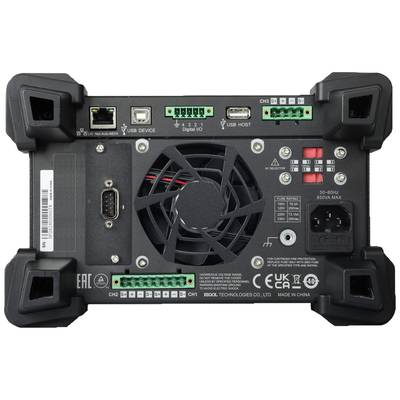

Back of an electronic device with a fan, multiple USB ports, power cable socket, switches, and ventilation grille.

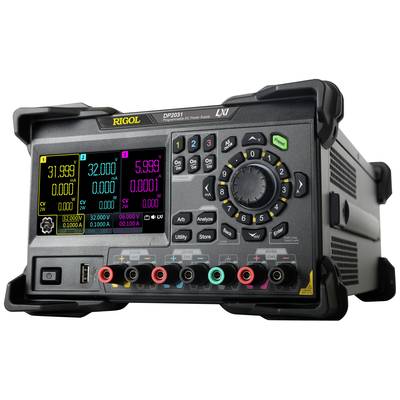

A Rigol DP2031 power analyser with multiple digital displays showing values for voltage, current, and power.

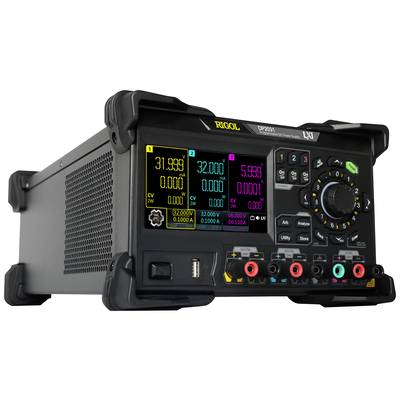

A modern digital laboratory power supply with multiple colour displays shows voltage and current values.

1/4

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 1,155.46 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Programmable linear DC power supply, 222 Watt, 3 channels

No. of outputs 3 x
0 - 32 V DC / 0 - 3 A
0 - 32 V DC / 0 - 3 A
0 - 6 V DC / 0 - 5 A
222 W
USB , LAN, RS232

Technical specifications

Type: DP2031

Product type: Bench PSU (adjustable voltage)

No. of outputs: 3 x

: 222 W

Technology: Linear regulated PSU

Interfaces: USB
LAN
RS232

Dim: (L x W x H) 419 x 239 x 157 mm

: Manufacturer's standards (no certificate)

Weight: 9.950 g

Output voltage (max.): 32 V DC

Output voltage (min.): 0 V DC

Output voltage 2 (max.): 32 V DC

Output voltage 2 (min.): 0 V DC

Output voltage 3 (max.): 6 V DC

Output voltage 3 (min.): 0 V DC

Max. output current: 3 A

Output current (min.): 0 A

Output current 2 (max.): 3 A

Output current 2 (min.): 0 A

Output current 3 (max.): 5 A

Output current 3 (min.): 0 A

Width: 239 mm

Height: 157 mm

Length: 419 mm

Documents & Downloads

Datasheet

Datasheet 2624374 Rigol DP2031 Bench PSU (adjustable voltage) 0 - 32 V DC 0 - 3 A 222 W USB , LAN, RS232 No. of outputs 3 x

User & Safety Instructions

User & Safety Instructions 2624374 Rigol DP2031 Bench PSU (adjustable voltage) 0 - 32 V DC 0 - 3 A 222 W USB , LAN, RS232 No. of outputs 3 x

Warranty Terms

Warranty Terms 2624374 Rigol DP2031 Bench PSU (adjustable voltage) 0 - 32 V DC 0 - 3 A 222 W USB , LAN, RS232 No. of outputs 3 x

Description

The laboratory power supply DP2031 is a 222 W, 3 channel linear DC power supply, with very low noise and isolated channels.

This text is machine translated.

Features

3 independantly adjustable channels with 32V/3A, 32V/3A and 6V/5A (10A, optional)10.92 cm (4.3-inch) LCD color touch screenHigh resolution for measurementsAbility to measure and display large dynamic current ranges

Scope of delivery

Power cableUSB cableA fuse2 pairs of test cables (max. 10 ampere)
