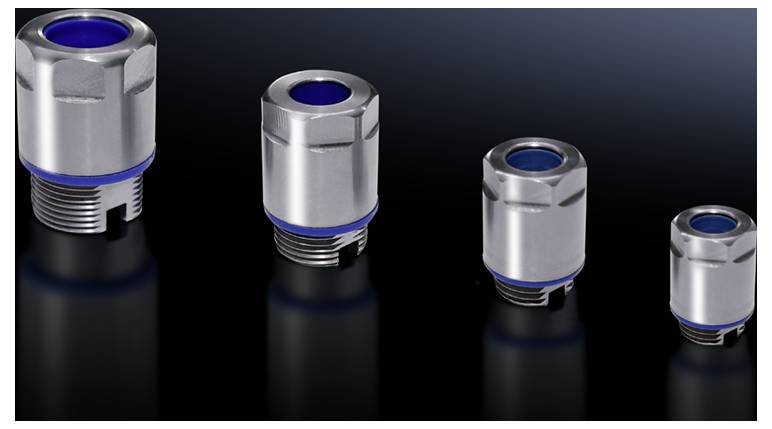

Rittal 2410121 Cable gland with locknut, shockproof M20 x 1.5 Stainless steel 5 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M20 x 1.5
Type
EMC
Material
Stainless steel
Clamp Ø
6 mm
Number (Package size 5 pc(s))
Total (€ 222.69 / piece)
€
Technical specifications
- Type of seal: Sealing ring
- Hexagonal corner dimensions 17 mm
- Product type
Cable gland
- Features
with locknut
shockproof
- External thread
M20 x 1.5
- Type
EMC
- Material
Stainless steel
- Clamp Ø
6 mm
- Terminal Ø (max.)
12 mm
- Thread length
6 mm
- Min. temperature
-20 °C
- Max. temperature
+100 °C
IP69
IPX8
- Spanner size
17 mm
- Halogen-free
No
- Content
5 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
2410121
- Type
HD 2410.121
Variants(All information is without VAT, plus shipping costs)
Clamp Ø
Terminal Ø (max.)
External thread
Rittal 2410121 Cable gland with locknut, shockproof M20 x 1.5 Stainless steel 5 pc(s)
This article
6 mm
12 mm
M20 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 222.69*
Rittal 2410001 Cable gland with locknut, shockproof M12 x 1.5 Stainless steel 5 pc(s)
3 mm
6.5 mm
M12 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 142.85*
Rittal 2410011 Cable gland with locknut, shockproof M16 x 1.5 Stainless steel 5 pc(s)
5 mm
10 mm
M16 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 142.85*
Rittal 2410021 Cable gland with locknut, shockproof M20 x 1.5 Stainless steel 5 pc(s)
6 mm
12 mm
M20 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 172.26*
Rittal 2410031 Cable gland with locknut, shockproof M25 x 1.5 Stainless steel 5 pc(s)
12 mm
17 mm
M25 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 210.08*
Rittal 2410111 Cable gland with locknut, shockproof M16 x 1.5 Stainless steel 5 pc(s)
5 mm
10 mm
M16 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 193.27*
Rittal 2410131 Cable gland with locknut, shockproof M25 x 1.5 Stainless steel 5 pc(s)
12 mm
17 mm
M25 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 268.07*
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2352670 Rittal 2410121 Cable gland with locknut, shockproof M20 x 1.5 Stainless steel 5 pc(s)
