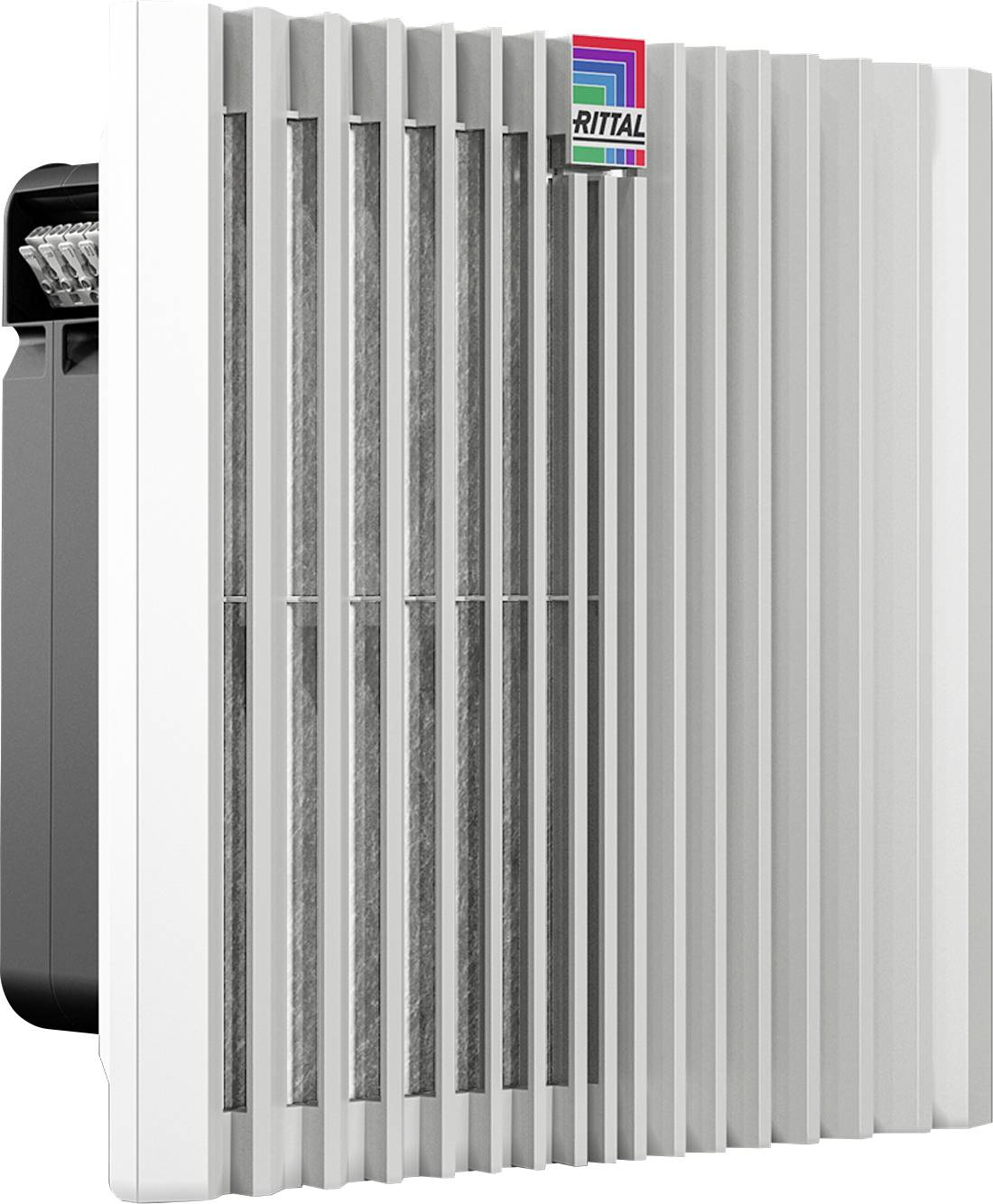

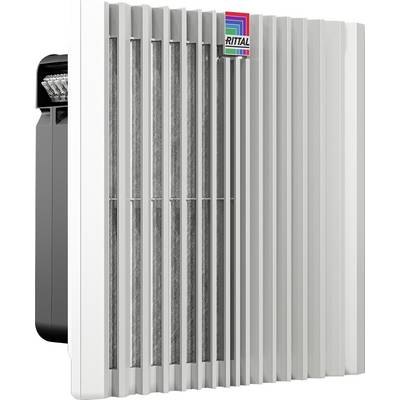

Rittal SK 3245.900 Fan and filter 173.5 W (W x H x D) 323 x 323 x 161 mm 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 357.14 / piece)
€
Only 3 Piece(s) available
Technical specifications
- Material: plastic
- Net weight: 4.04 kg
- Gross weight: 4.241 kg
- Dimensions: Width 323 mm
- Height: 323 mm
- Depth: 161 mm
- Benefit: Highest air output by pleated filter in the delivery state
- Wide-range input 100 - 240 V
- IoT connectivity enables exclusive features such as automatic filter cleaning, filter maintenance indicator, emergency cooling
- Easy change of filter through a new opening mechanism at the lamellar grid
- Faster mounting on the cabinet by optimized latching hooks
- Diagonal fan technology provides for a more even and constant ventilation of the control cabinet through higher pressure stability
- Installation without any tools
- Colour RAL 7035
- Design: Wall-mounting
- EC
- Rated operating voltage 200 V - 240 V, 1~, 50 Hz/60 Hz
- Sound pressure level: At 50 Hz: 72 dB(A)
- Operating temperature range --25°C...55°C.
- Nominal capacity Pel: At 50 Hz: 173.5 W.
- Rated current max.: At 50 Hz: 1.38 A
- Storage temperature range -25°C...70°C.
- Fuse: Circuit breaker / safety fuse 6 A
- Protection class NEMA: Type 1
- Type 12 with fleece filter/line filter
- Type 3
- Type 3R with fleece filter/fluted filter and water spray hood
- Fan: Diagonal, EC-motor
- Air flow free-blowing (with fleece filter): At 50 Hz: 931 m³/h.
- Installation depth: 141 mm
- Mounting cut-out width: 292 mm
- Outbreak - Height 292 mm
- Air power with associated outlet filter incl. nonwoven filter: At 50 Hz: 728 m³/h.
- Interfaces: 0 - 10 V/PWM input
- Speed output
- Potential-free fault indicator contact
- RS485 (Modbus)
- Air performance free-blowing (with folded filter): At 50 Hz: 1,161 m³/h.
- At 60 Hz: 1,161 m³/h
- Protection class IP according to IEC 60 529: IP51 with fleece filter/flted filter
- IP52 with folded filter and absorbent mat
- IP56 with fleece filter/line filter and jet-water hood
- Type
SK 3245.900
- Min. operating voltage
200 V
- Max. operating voltage
240 V
- Operating voltage
200 - 240 V
- Max. current consumption
1.38 A
173.5 W
- Noise emission (max.)
72 dBa
- Air flow rate
1161 m³/h
- Factory colour
Grey (RAL 7035)
- Min. temperature
-25 °C
- Max. temperature
+55 °C
IP51
IP52
IP56
- Width
323 mm
- Height
323 mm
- Depth
161 mm
- Dim
(W x H x D) 323 x 323 x 161 mm
- Weight
4.04 kg
- Content
1 pc(s)
Snap mounting
Grey
323 mm
323 mm
161 mm
7035
AC
FALSE
1
FALSE
IP54
TRUE
TRUE
FALSE
FALSE
1161 m³/h
TRUE
TRUE
12
- Product type
Fan and filter
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386711 Rittal SK 3245.900 Fan and filter 173.5 W (W x H x D) 323 x 323 x 161 mm 1 pc(s)
Description
SK Blue e+ filter fan, EC technology, 1161 m³/h, 200 V - 240 V, 1~ , 50 Hz/60 Hz, BHT 323 x 323 x 161 mm, RAL 7035
The energy-efficient design with EC technology is characterized not only by its first-time IoT capability. The Blue e+ filter fan also opens the door to many other advantages – from energy efficiency to monitoring and sustainability to a higher air output (175 - 1,160 m³/h).
