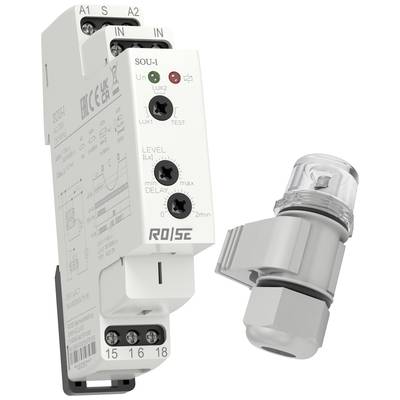

RO/SE LM-Heizungen Twilight switch 1 pc(s) SOU-1/UNI Light sensitivity: 1 - 50000 lx 1 change-over
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 53.77 / piece)
€
Only 8 Piece(s) available
Highlights & Details
Twilight switches
- Two sensitivity ranges: 1 - 100 lx, 100 - 50000 lx
Technical specifications
- Type
SOU-1/UNI
- Min. operating voltage
12 V DC
12 V AC
- Max. operating voltage
240 V AC
240 V DC
- Operating voltage
12, 12 - 240, 240 V AC, V DC
- Contact type
1 change-over
- Contact material
AgSnO2
- Switching voltage (max.)
24 V DC
250 V AC
- Switching current (max.)
16 A
- Max. switching capacity
384 W
4000 VA
- Light sensitivity (min.)
1 lx
- Light sensitivity (max.)
50000 lx
- Light sensitivity
1 - 50000 lx
- Connection
Screw terminal
IP40 (Front)
IP20 (terminals)
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- Width
17.6 mm
- Height
90 mm
- Depth
64 mm
- Dim
(W x H x D) 17.6 x 90 x 64 mm
- Content
1 pc(s)
- Product type
Twilight switch
Documents & Downloads
Datasheet
Datasheet 2482789 RO/SE LM-Heizungen Twilight switch 1 pc(s) SOU-1/UNI Light sensitivity: 1 - 50000 lx 1 change-over
User & Safety Instructions
User & Safety Instructions 2482789 RO/SE LM-Heizungen Twilight switch 1 pc(s) SOU-1/UNI Light sensitivity: 1 - 50000 lx 1 change-over
Description
The device is used to control street and garden lighting, billboards, displays, etc. It is monitored by an external sensor and the output is switched according to the setting on the device. A control input is available for additional control (e.g. digital timer). The adjustable delay prevents short-term fluctuations in lighting.
This text is machine translated.
This text is machine translated.
Scope of delivery
- External sensor for wall mounting including cover and bracket
