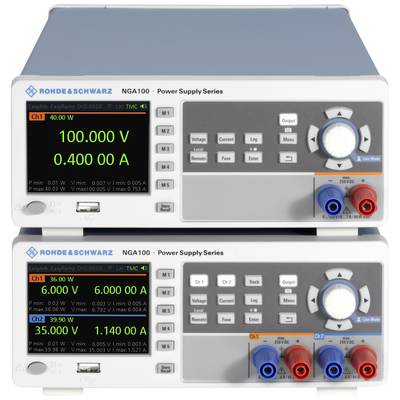

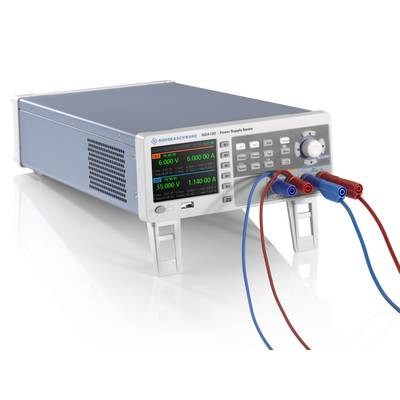

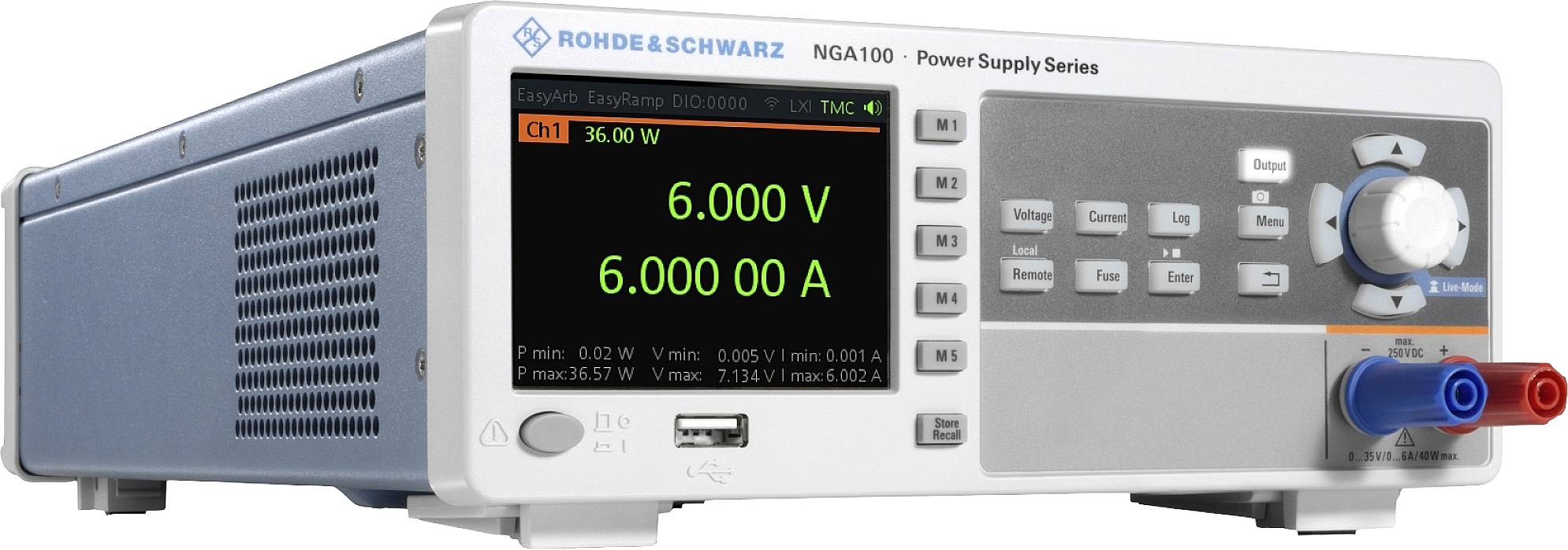

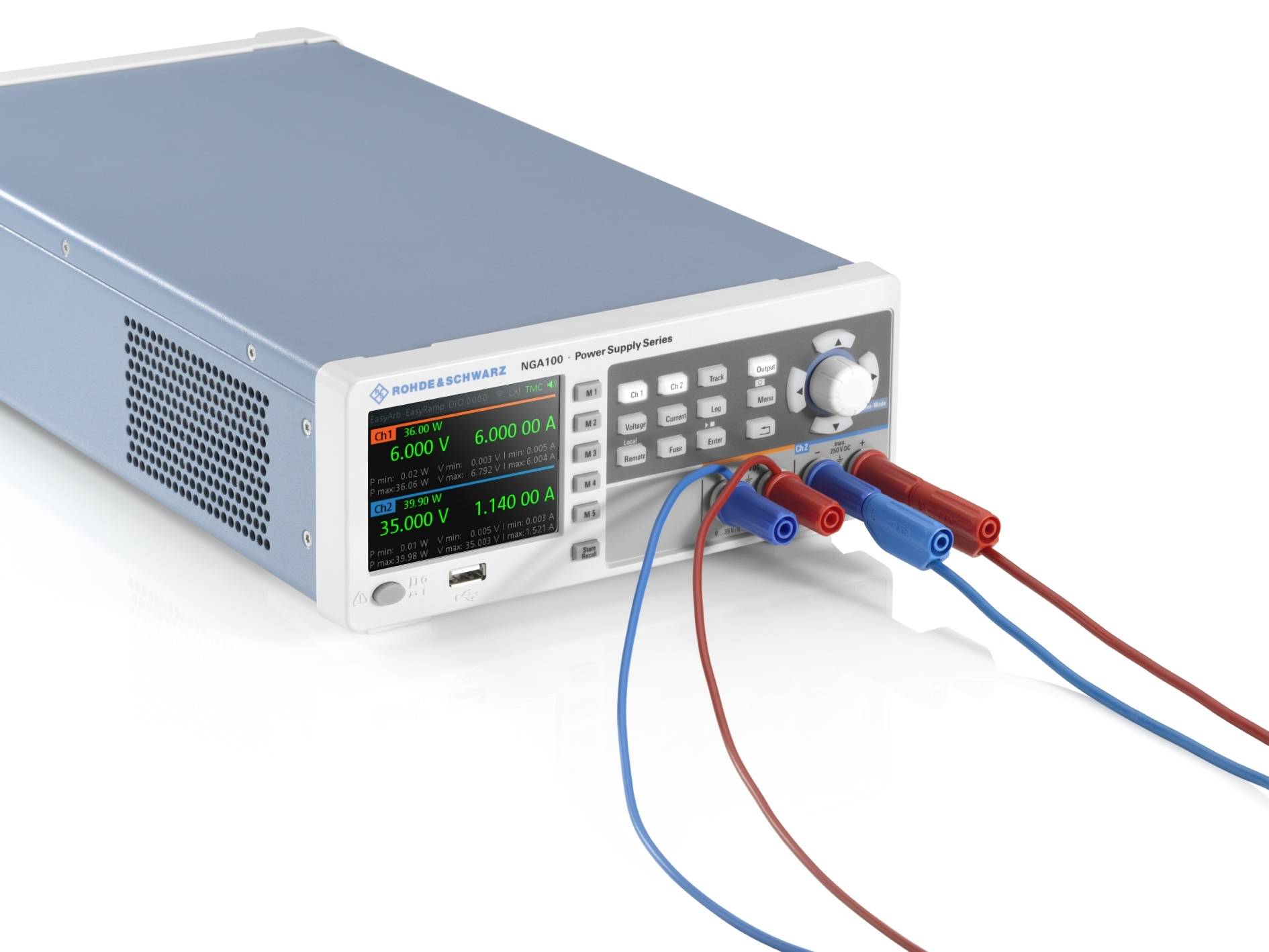

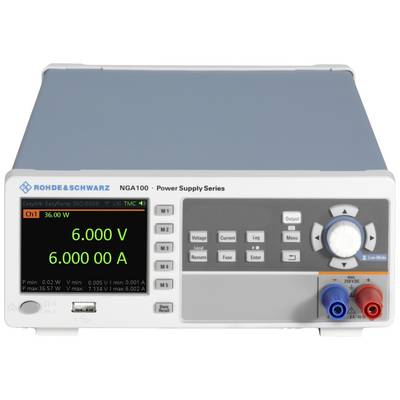

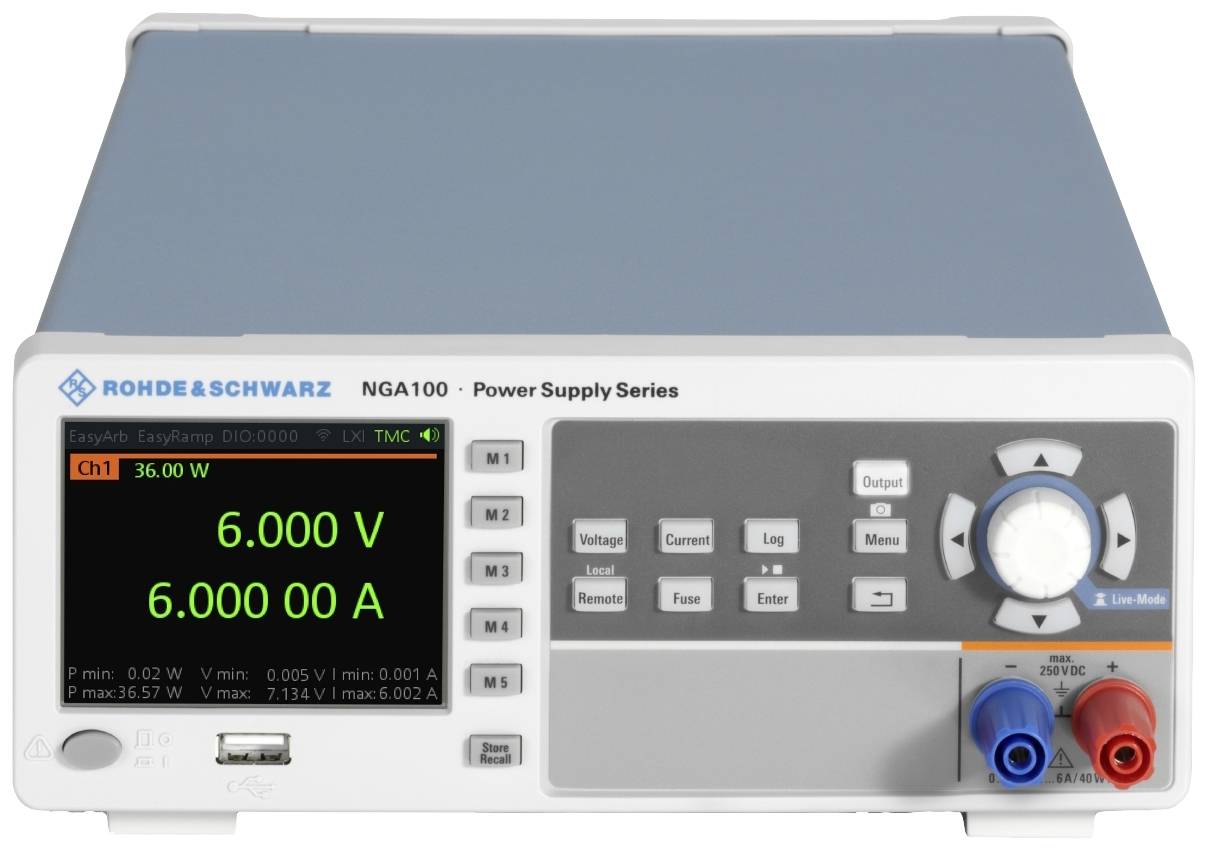

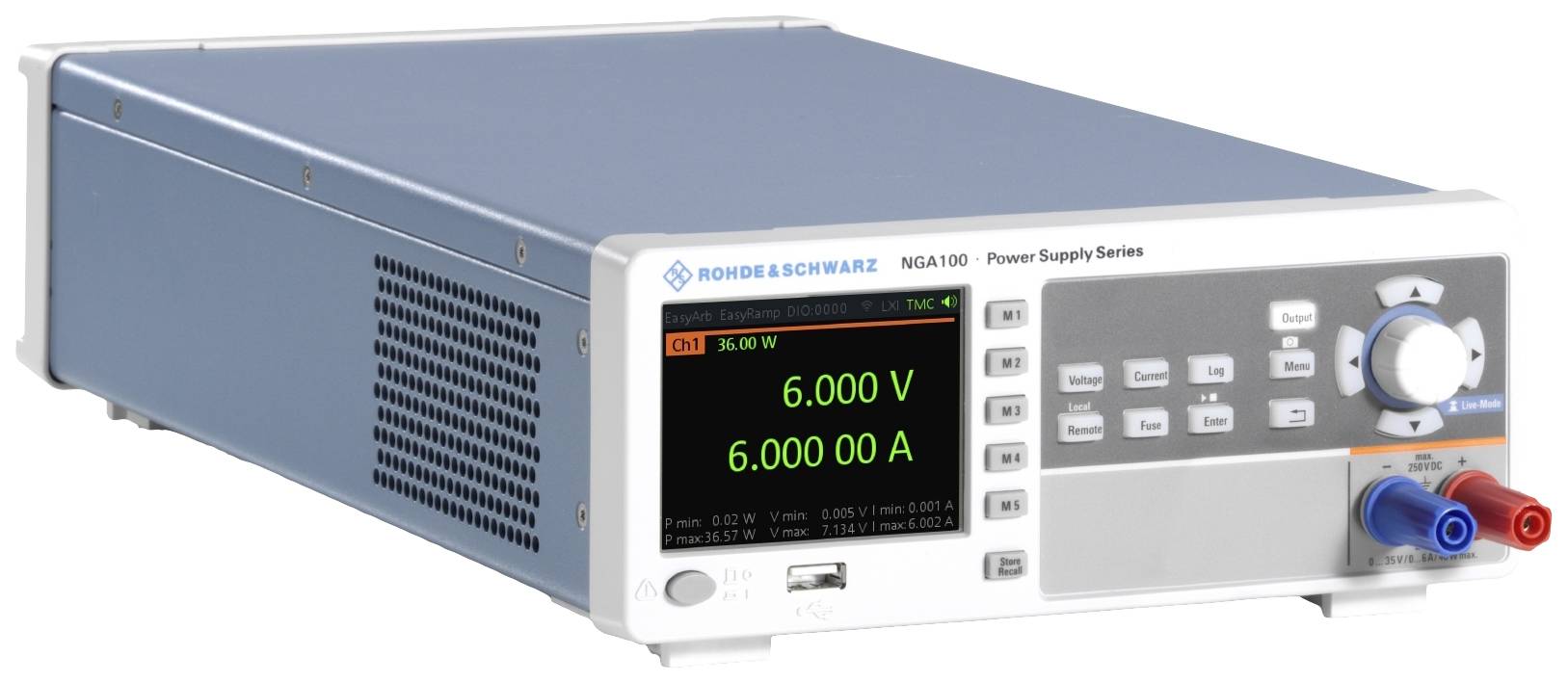

Rohde & Schwarz NGA142COMb Bench PSU (adjustable voltage) 100 V (max.) 2 A (max.) 80 W remote controlled, programmable N

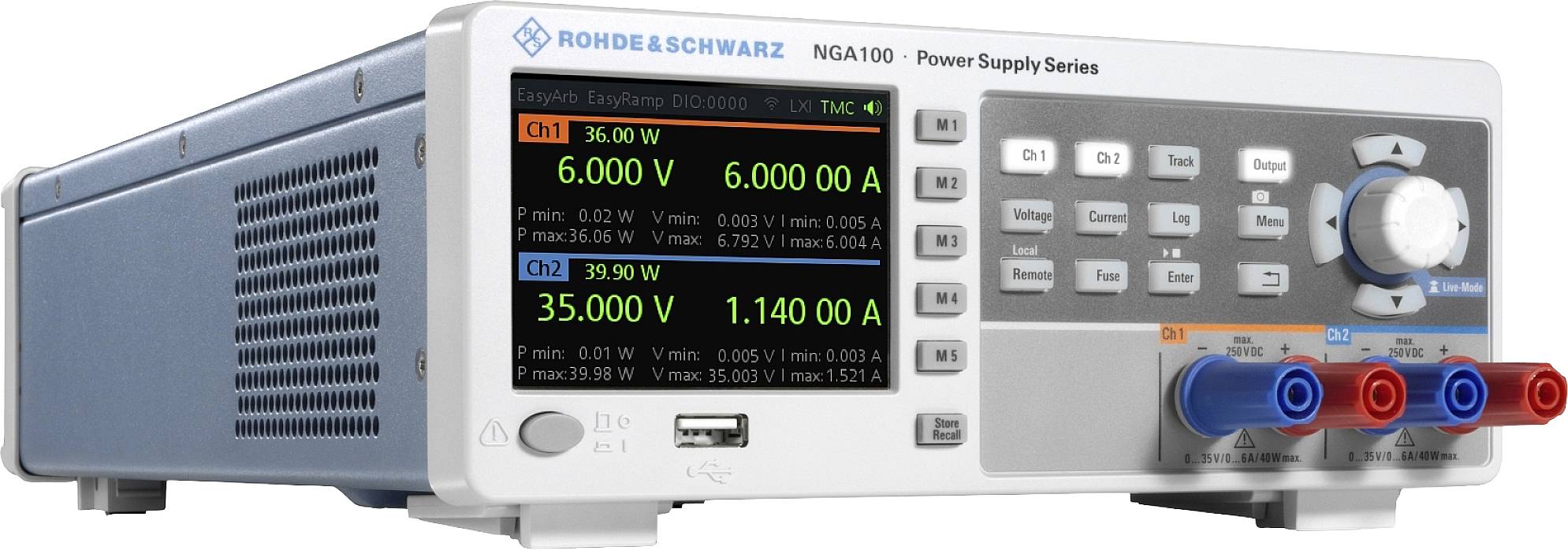

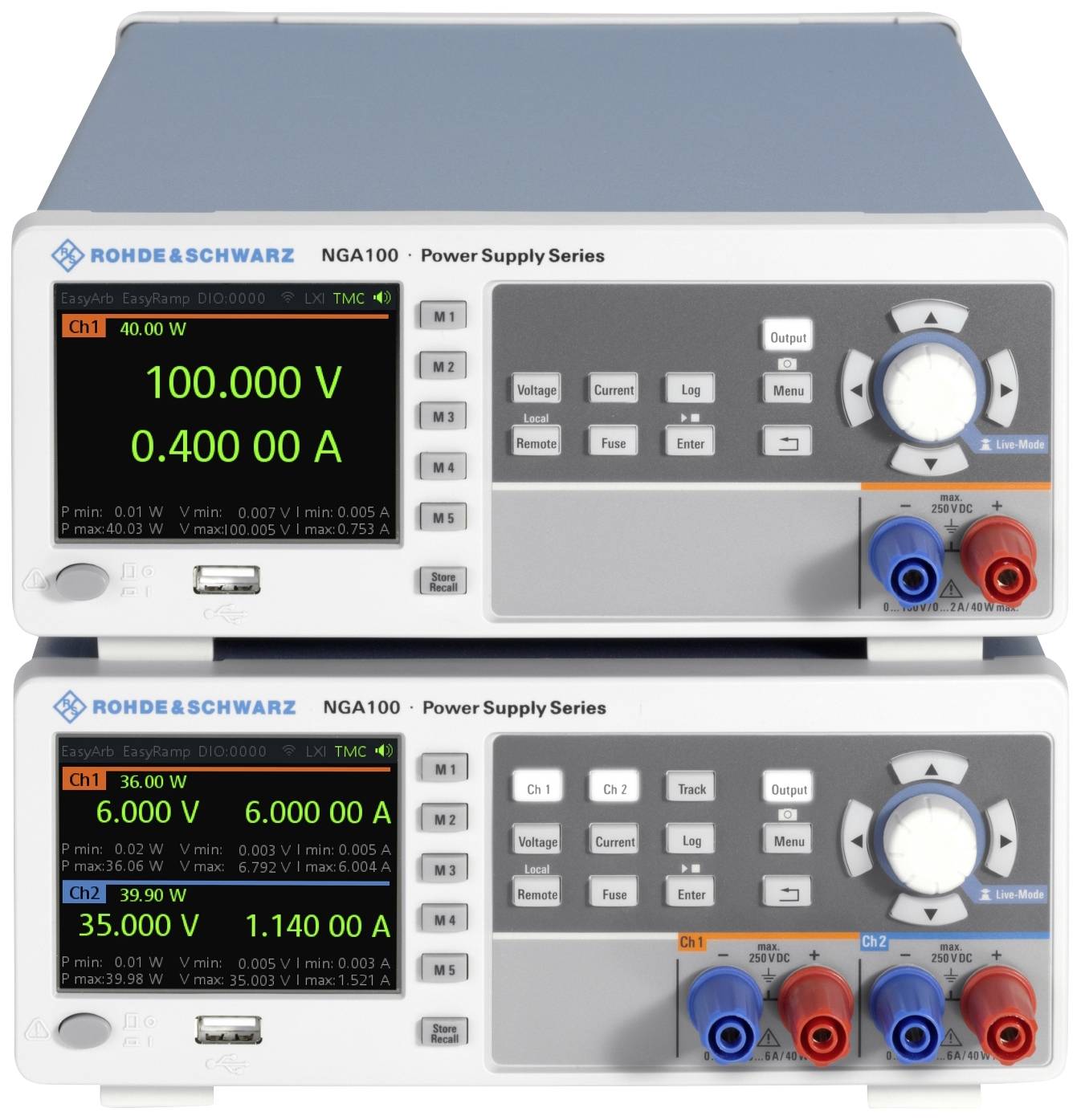

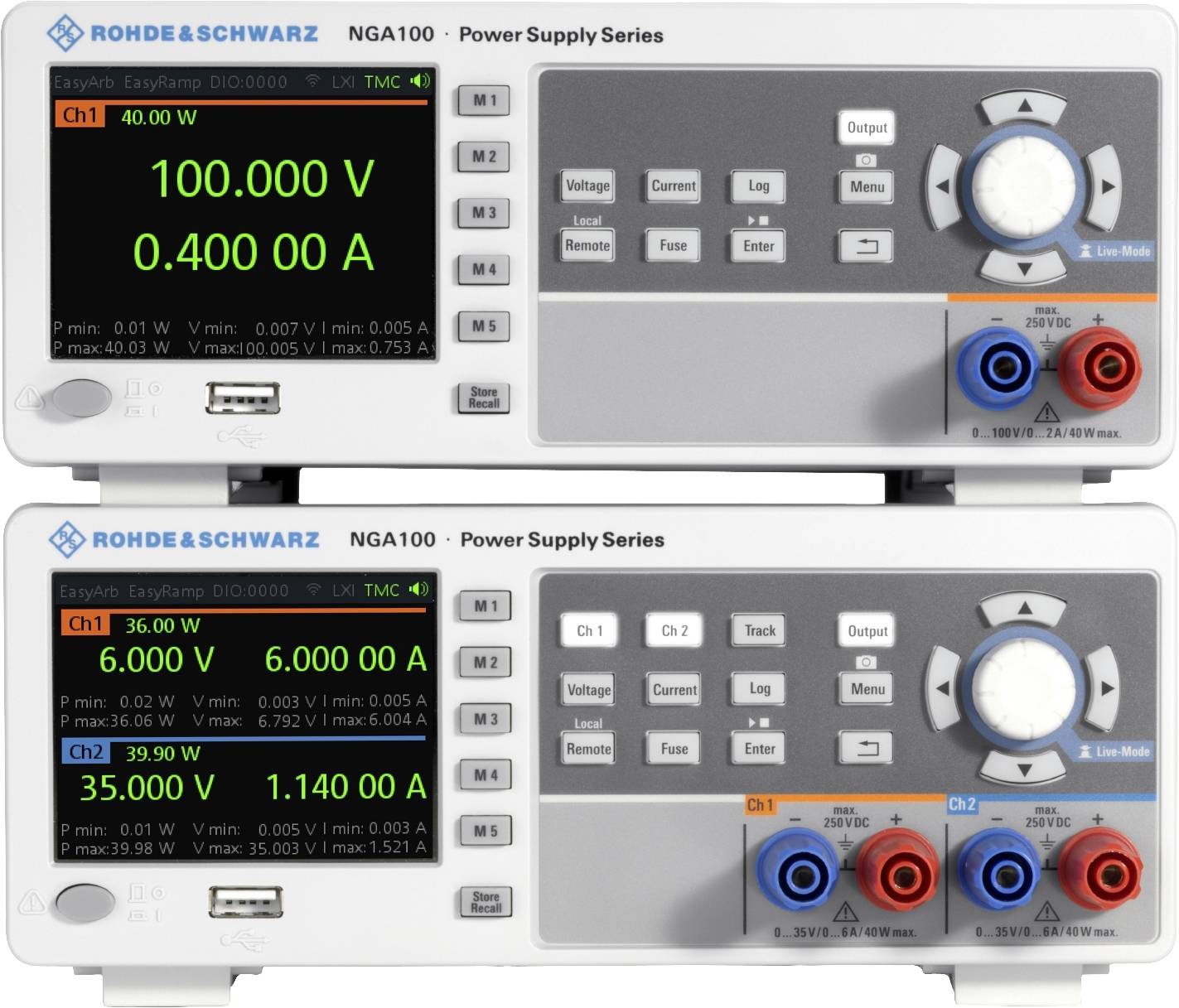

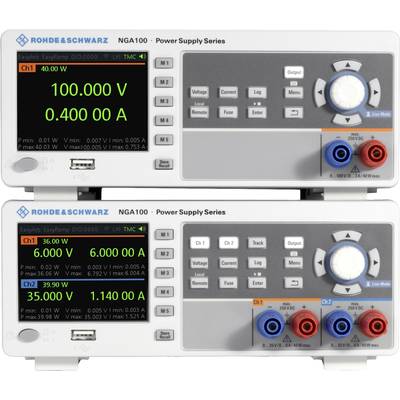

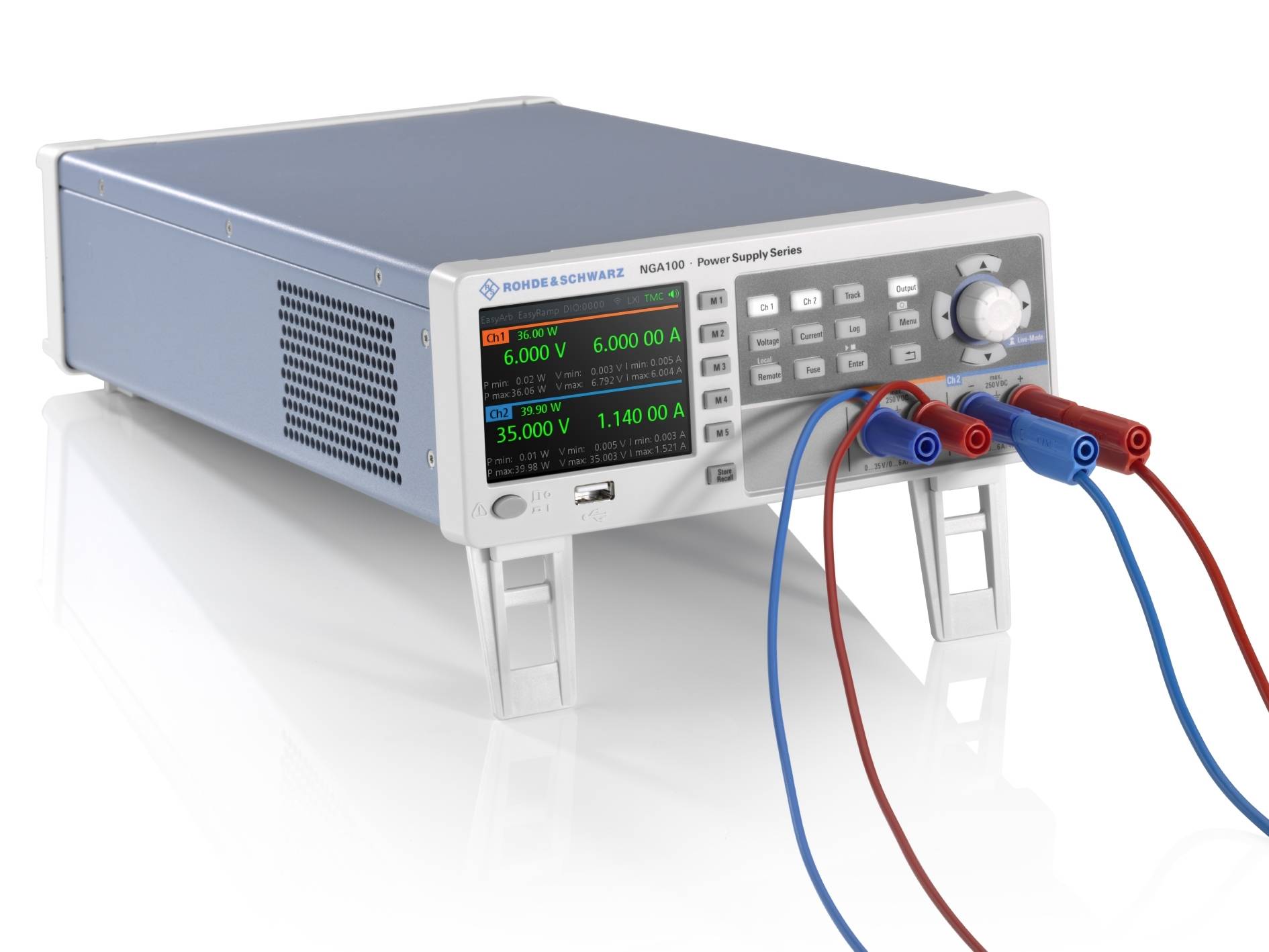

Linear designModern electronic circuits are often complex and sensitive to disturbances on the supply line. The linear design of output stages enables the power supplies of the R&S®NGA100 to operate with minimum ripple and noise. The supply of extremely stable output voltage and current is crucial in the development of sensitive components.High readback accuracyThe R&S®NGA100 power supply series has excellent programming and reading accuracy to accurately measure and map the actual power consumption of a device.Even at low voltage and current values. These built-in measurements reduce the need for external multimeters and simplify setup.Integrated statisticsThe built-in statistics show the min. and max. values for power, voltage and current.Independent Channels (R&S®NGA102 and R&S®NGA142)The two channels have completely separate circuits and are not connected to the chassis ground, WAS makes it easy to combine channels for bipolar circuits that may be+12 V/-12 V. Both channels are electrically equivalent, with the same voltage, current and power. The two channels operate as separate power supplies and can be operated individually or simultaneously. FlexPowerThe R&S®NGA100 series operates at maximum performance at various operating points and covers far more applications than single-range power supplies. All possible voltage and current combinations are shown in the corresponding FlexPower curves.
