Buy Rohde & Schwarz NGE-COM3b Bench PSU (adjustable voltage) 0 - 32 V DC 0 - 3 A 100 W USB OVP, remote controlled No. of out

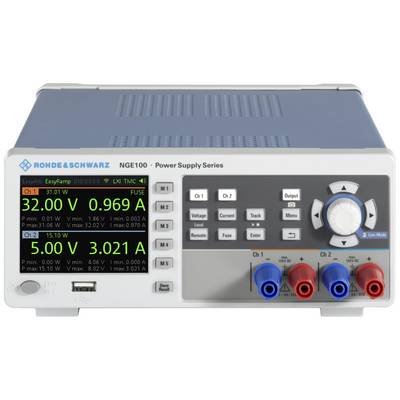

A laboratory power supply displays voltages of 32.00 V and 5.00 V, along with currents of 0.969 A and 3.021 A for two channels.

Laboratory power supply with a blue front panel, displaying two digital readouts: '32.00 V, 0.969 A' and '5.00 V, 3.021 A'. Several control elements are visible.

An electrical tabletop device displays voltage and current measurement values on two screens. It is equipped with multiple control elements.

A digital power supply unit with display shows voltages of 32.00 V and 5.00 V at currents of 0.969 A and 3.021 A.

A laboratory power supply shows two channels: Channel 1 with 32.00 V and 0.969 A, Channel 2 with 5.00 V and 3.021 A. Both channels have separate connections.

Electronic power supply unit with three channels, displaying voltage and current. Control buttons and connectors visible underneath.

A power supply unit with multiple colourful connection terminals. Two measuring leads with red and blue banana plugs are connected at the front.

1/7

Show alternatives

Sales and shipping:

Number

Set(s)

Total (€ 1,318.49 / piece)

€ 1,738.66

-24 %

€

Report legal concerns

Highlights & Details

R&S® NGE-COM3B

No. of outputs 3 x
0 - 32 V DC / 0 - 3 A
0 - 32 V DC / 0 - 3 A
0 - 32 V DC / 0 - 3 A
100 W
USB
OVP, remote controlled

Technical specifications

Type: NGE-COM3b

No. of outputs: 3 x

: 100 W

Interfaces: USB

Features: OVP
remote controlled

Dim: (L x W x H) 280 x 222 x 88 mm

Weight: 4.5 kg

Height: 88 mm

Length: 280 mm

Width: 222 mm

: Manufacturer's standards (no certificate)

Output: 4 mm socket

Mains supply: IEC 320 C14

Input voltage: 230 V AC
115 V AC

Output current 2 (max.): 3 A

Output current 2 (min.): 0 A

Output current 3 (max.): 3 A

Output current 3 (min.): 0 A

Max. output current: 3 A

Output current (min.): 0 A

Output voltage 2 (max.): 32 V DC

Output voltage 2 (min.): 0 V DC

Output voltage 3 (max.): 32 V DC

Output voltage 3 (min.): 0 V DC

Output voltage (max.): 32 V DC

Output voltage (min.): 0 V DC

Residual ripple: 1.5 mV

Mains control: 0.1 %

Product type: Bench PSU (adjustable voltage)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2586236 Rohde & Schwarz NGE-COM3b Bench PSU (adjustable voltage) 0 - 32 V DC 0 - 3 A 100 W USB OVP, remote controlled No. of out

Description

The R&S®NGE100 power supply series consists of robust, powerful and affordable devices. They offer a high degree of efficiency with low ripple and a wide range of convenience functions that are not common in this class of power supplies. All outputs are ground-free and short-circuit proof. The output channels can be combined serially or in parallel to achieve higher voltages or higher currents.

This text is machine translated.

Scope of delivery

R&S®NGE103B 3-CHANNEL Power SUPPLY
R&S®NGE-K101 ETHERNET REMOTE CONTROL
R&S®NGE-K103 DIGITAL TRIGGER I/O.
