Buy Rohde & Schwarz R&S®NGC102-G Bench PSU (adjustable voltage) 32 V (max.) 5 A (max.) 100 W No. of outputs 2 x

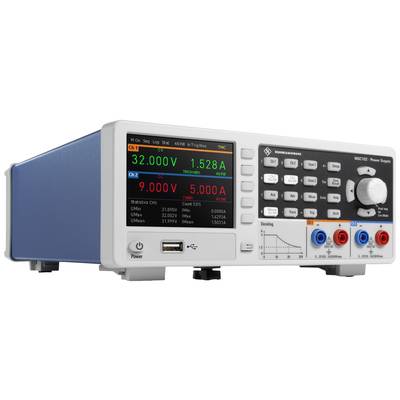

A digital dual-channel power supply unit displaying voltage and current: CH1 32.00V, 1.528A; CH2 9.000V, 5.000A.

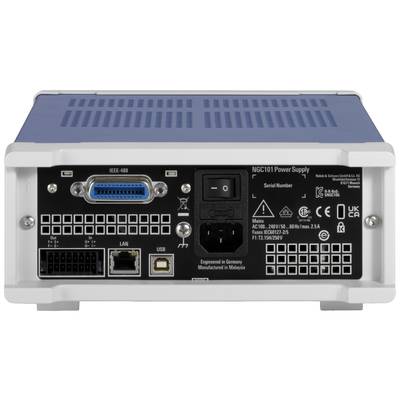

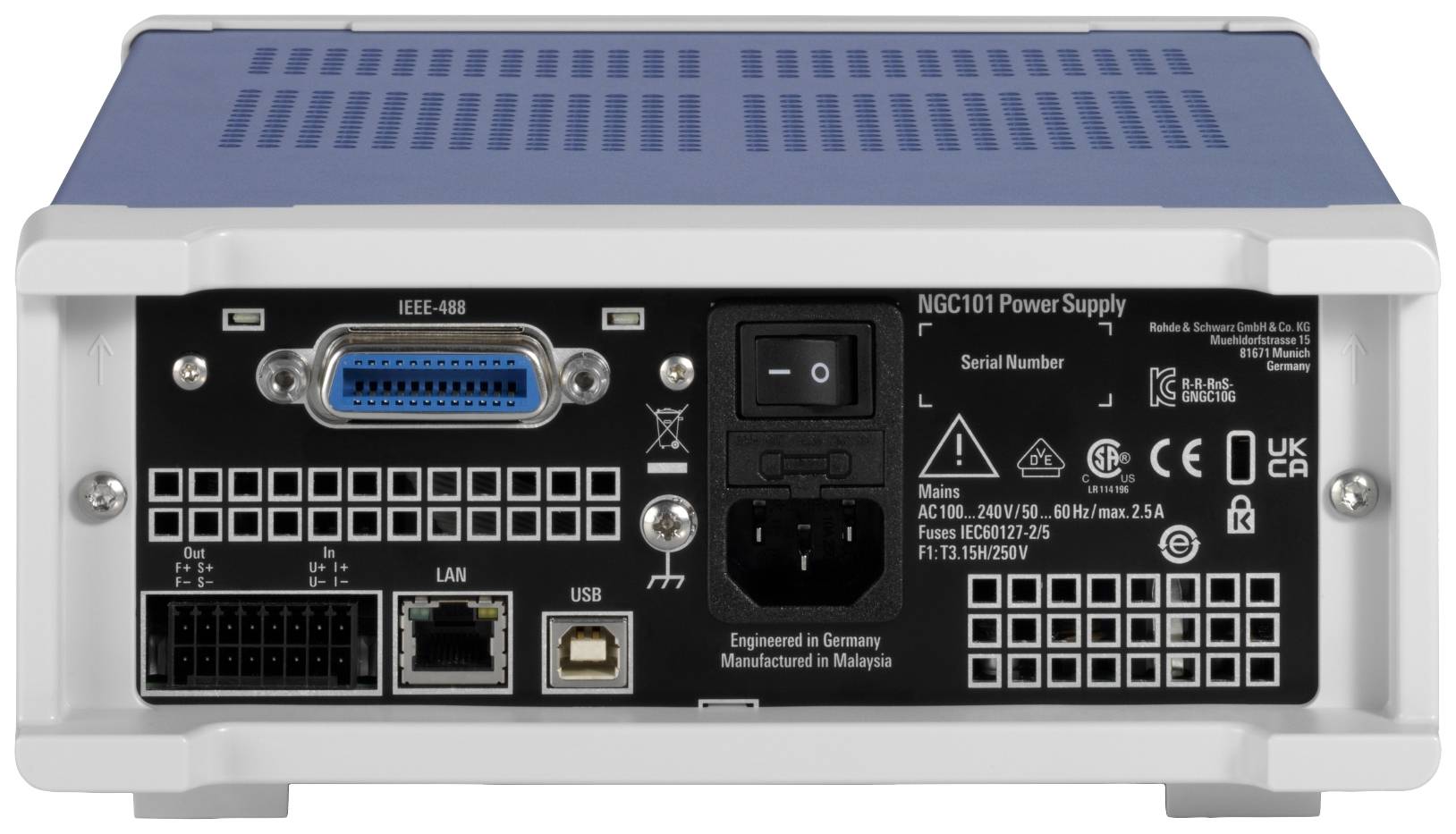

'Rear view of an NGC101 power supply unit with various ports: LAN port, serial connection, power switch, and fuse.'

1/2

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 1,710.08 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Rohde & Schwarz NGC102-G 2-CH DC power supply 100 W, 2x 32 V, 5 A inc. GPIB

No. of outputs 2 x
32 V (max.) / 5 A (max.)
100 W

Technical specifications

Type: R&S®NGC102-G

Product type: Bench PSU (adjustable voltage)

No. of outputs: 2 x

: 100 W

Technology: Linear regulated PSU

Dim: (L x W x H) 291 x 222 x 97 mm

: Manufacturer's standards (no certificate)

Weight: 2.7 kg

Output voltage (max.): 32 V

Max. output current: 5 A

Output current 2 (max.): 5 A

Width: 222 mm

Height: 97 mm

Length: 291 mm

Documents & Downloads

Datasheet

Datasheet 3130871 Rohde & Schwarz R&S®NGC102-G Bench PSU (adjustable voltage) 32 V (max.) 5 A (max.) 100 W No. of outputs 2 x

User & Safety Instructions

User & Safety Instructions 3130871 Rohde & Schwarz R&S®NGC102-G Bench PSU (adjustable voltage) 32 V (max.) 5 A (max.) 100 W No. of outputs 2 x

Description

The feature-rich R&S®NGC100 family consists of three models, all with a maximum total power of up to 100 W and a continuous voltage range from 0 V to 32 V. The single-channel R&S®NGC101 delivers a maximum of 10 A, the two-channel R&S®NGC102 a maximum of 5 A and the three-channel R&S®NGC103 a maximum of 3 A per channel. The outputs are galvanically isolated, floating and protected against overload and short circuit. The electrically equivalent outputs of the two- and three-channel models make it possible for the user to switch several outputs in parallel or in series, in order to increase the voltage or current to up to 96 V or 10 A. The synchronization of the outputs, the performance of curve shape tests and the recording of data for detailed analyzes are a breeze with the R&S®NGC100 power supply series. An intuitive operating concept navigates the user quickly through the menus. All R&S®NGC100 power supplies have remote sense connectors, an external trigger input, an analog control interface, a USB and a LAN interface.
