Buy Rohde & Schwarz RTC1K-102 Digital 100 MHz 2 GS/s 2 MP 8 Bit 1 pc(s)

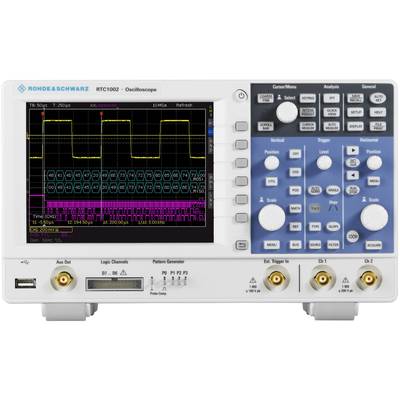

An oscilloscope with a display shows a rectangular signal. Control elements are present on the right for adjusting the display and taking measurements.

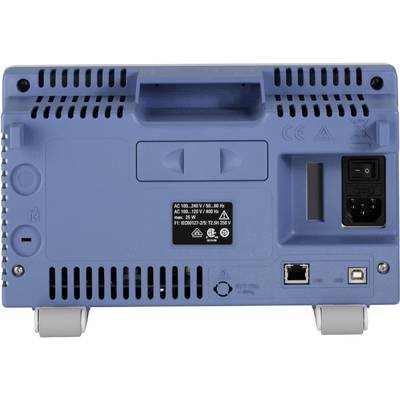

Rear view of a blue electronic device with power socket, power switch, USB and Ethernet ports, and ventilation slots.

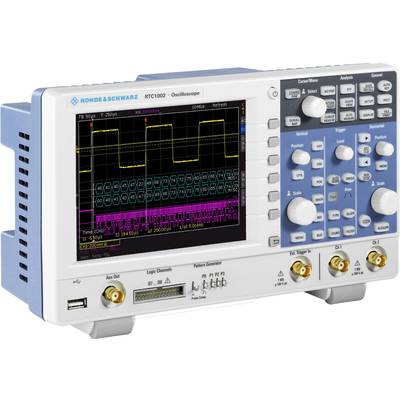

An oscilloscope displays several waveform signals on a screen. There are numerous buttons for controlling and adjusting the display.

An oscilloscope displays two sinusoidal signals on the screen, surrounded by controls and sockets for technical measurements.

1/4

Show alternatives

Sales and shipping:

Number

Piece(s)

Total (€ 1,365.55 / piece)

€

Report legal concerns

Highlights & Details

Digital oscilloscope

Bandwidth: 100 MHz
No. of analogue inputs 2
Sampling rate: 2 GS/s

Technical specifications

Product type: Digital

Bandwidth: 100 MHz

Channel sample rate: 2 GS/s

Resolution: 8 Bit

Screen size: 16.51 cm (6.5")

Time base: 1 ns/div to 100 s/div

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Input impedance: 1 MΩ

Power supply (details): 230 V

Dim: (L x W x H) 140 x 285 x 175 mm

Weight: 1700 g

Display: LCD, 640 x 480 p

Width: 285 mm

Height: 175 mm

Length: 140 mm

Interfaces: LAN
USB device
USB host

Channel memory depth: 2 MP

Type: RTC1K-102

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2128311 Rohde & Schwarz RTC1K-102 Digital 100 MHz 2 GS/s 2 MP 8 Bit 1 pc(s)

Information

Information 2128311 Rohde & Schwarz RTC1K-102 Digital 100 MHz 2 GS/s 2 MP 8 Bit 1 pc(s)

Description

High sensitivity, multi-functionality and favorable price - that is the special feature of the R&S®RTC 1000 oscilloscopes.

From the embedded developers via the service technician to the education - the large functional scope addressed a wide range of user groups. Extremely modern and powerful technology in an extremely low-noise design provides the high demands of today's customers satisfied. With its versatile expansion options, these oscilloscopes therefore for a high future security.

The R&S®RTC 1000 is a X-in-1 device, the functions of an oscilloscope, logic analyzer, Protocol Analyzer, frequency analyzer, Pattern Generator, function generator, digital voltmeter and component tester in a single housing unites.
