Buy Rohde & Schwarz RTH1054 Handheld oscilloscope 500 MHz 500 KP 10 Bit 1 pc(s)

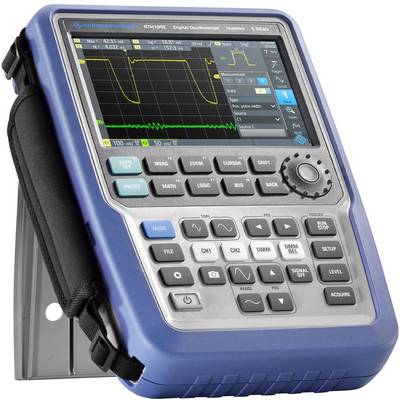

Portable digital oscilloscope with a blue casing, displaying waveform diagrams on the screen, with numerous control buttons.

A man is working in a laboratory with an oscilloscope in the foreground. The oscilloscope is displaying a waveform. Additional test equipment is visible in the background.

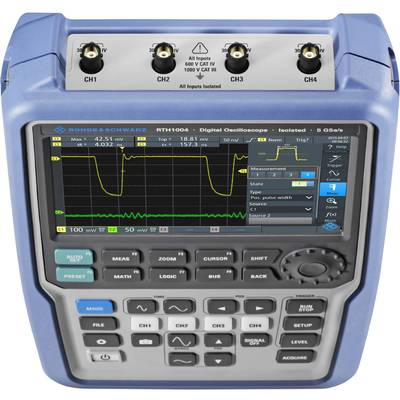

A portable digital oscilloscope with four channels displays a waveform diagram and measurement options on its screen.

1/3

Sales and shipping:

Number

Piece(s)

Total (€ 10,108.40 / piece)

€

Report legal concerns

Highlights & Details

R&S®Scope Rider, handheld oscilloscope, Scope-Meter, bandwidth 500 MHz, 4 channels, CAT IV

Bandwidth 500 MHz
Sampling rate 5 Gsample/s
Memory 500 ksample
5 instruments in 1: lab performance oscilloscope, logic analyzer, protocol analyzer, data logger, digital multimeter (partly optional)
Capacitive touch and keypad operation
Rated for measurements up to CAT IV 600 V
Wireless LAN for web based remote control (optional)

Technical specifications

Displays: LC TFT color touch display

Screen size: 17.78 cm

Time base: 1 ns/div to 500 s/div

Vertical deflection: 2 mV

Input impedance: 1 MΩ

Input coupling: AC, DC

Input voltage: 300 V

Power supply (details): 100 - 240 V AC

Dim: (L x W x H) 74 x 201 x 293 mm

Weight: 2.4 kg

Height: 293 mm

Length: 74 mm

Width: 201 mm

Display: 800 x 480 p

No. of analogue inputs: 4

No. of digital inputs (max.): 0

: Manufacturer's standards (no certificate)

Interfaces: USB host
USB device
LAN
SD card

Reading category: CAT IV 600 V
CAT III 1000 V

Type: RTH1054

Bandwidth: 500 MHz

Channel memory depth: 500 KP

Resolution: 10 Bit

Product type: Handheld oscilloscope

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1485890 Rohde & Schwarz RTH1054 Handheld oscilloscope 500 MHz 500 KP 10 Bit 1 pc(s)

Information

Information 1485890 Rohde & Schwarz RTH1054 Handheld oscilloscope 500 MHz 500 KP 10 Bit 1 pc(s)

Description

Lab performance in a rugged and portable design: whether debugging embedded devices in the lab or analyzing complex problems in the field, the R&S®Scope Rider offers both, the performance and capabilities of a laboratory oscilloscope and the form factor and ruggedness of a battery operated handheld device.
