Highlights & Details
CO2 meter SA 1200P with data logger
- LED display of CO2 value, temperature and humidity
- Visible and audible CO2 warning alarm
- ideal for office buildings, schools and factories
- Stylish design
Technical specifications
- CO2 measurement range 0-5000ppm
- Display resolution: 1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
- Accuracy: 0-3000ppm: ±50ppm or ±5% of the measured value, 3000ppm: ±7% of the measured value
- Temperature compensation: ±0.1% of reading per °C or ±2 ppm per relative to 25
- Warm-up time < : 20 seconds
- Response time: < 2 minutes for 63% of the step change or < 4.8 minutes for 90% of the step change
- Temperature reading
- Operating temperature: -0 to + 90 °C.
- Display resolution 0.1°F (0.1°C)
- RH measurement
- Measurement range: 5 - 95%
- Display resolution: 1%
- Main interface display; 0.1% in max/min display
- Accuracy: ± 5%
- Power consumption: 160mA peak; 40mA average at 5.0V
- Operating voltage: DC 5 V via USB connection.
- Dim
(L x W x H) 120 x 33.5 x 90 mm
- Height
90 mm
- Length
120 mm
- Width
33.5 mm
- Reading range
- Features
Datalogger function
- Unit of measurement
CO2
Temperature
Humidity
- Reading range (max.)
5000
- Reading range (min.)
0
- Weight
170 g
- Product type
Carbon dioxide detector
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2301167 SA 1200P Carbon dioxide detector Datalogger function
Conformity certificate
Conformity certificate 2301167 SA 1200P Carbon dioxide detector Datalogger function
Description
Everything OK or windows open?
Ideal for use in companies, factory buildings, schools, offices or public transport: The compact and clear SA 1200P CO2 meter with data logger is a practical tool when it comes to measuring indoor air quality. It reliably displays the carbon dioxide content (CO2) in all building areas where an exact analysis and monitoring of the air quality is desired or required.
Visual and audible alarm

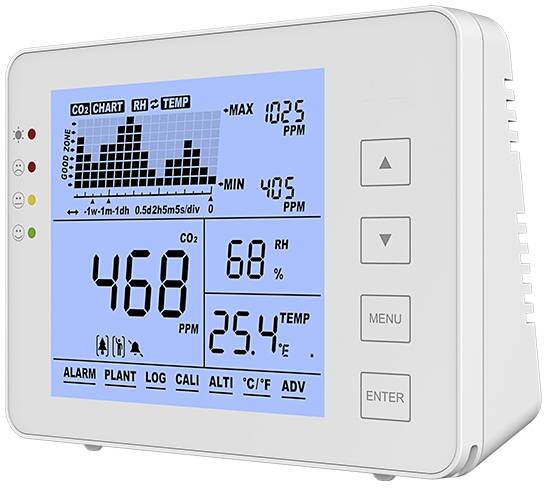

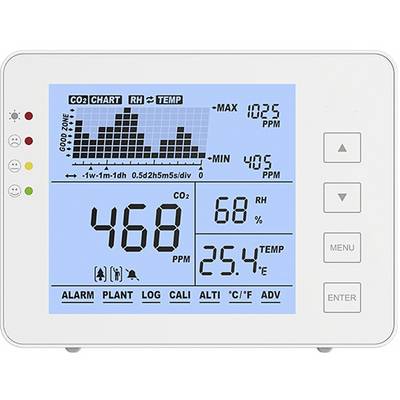

The modern white measuring device has an LED display with background lighting and easy to read numbers. Next to the CO2 value, the temperature and the air humidity are displayed. Particularly practical: If the CO2 value in the room exceeds a critical limit, the device responds with a visual and audible warning tone. Thanks to this practical function, the measuring device - whether in the classroom or in the open-plan office - makes clear quickly and unequivocally when it is time for ventilation.
Durable and space-saving

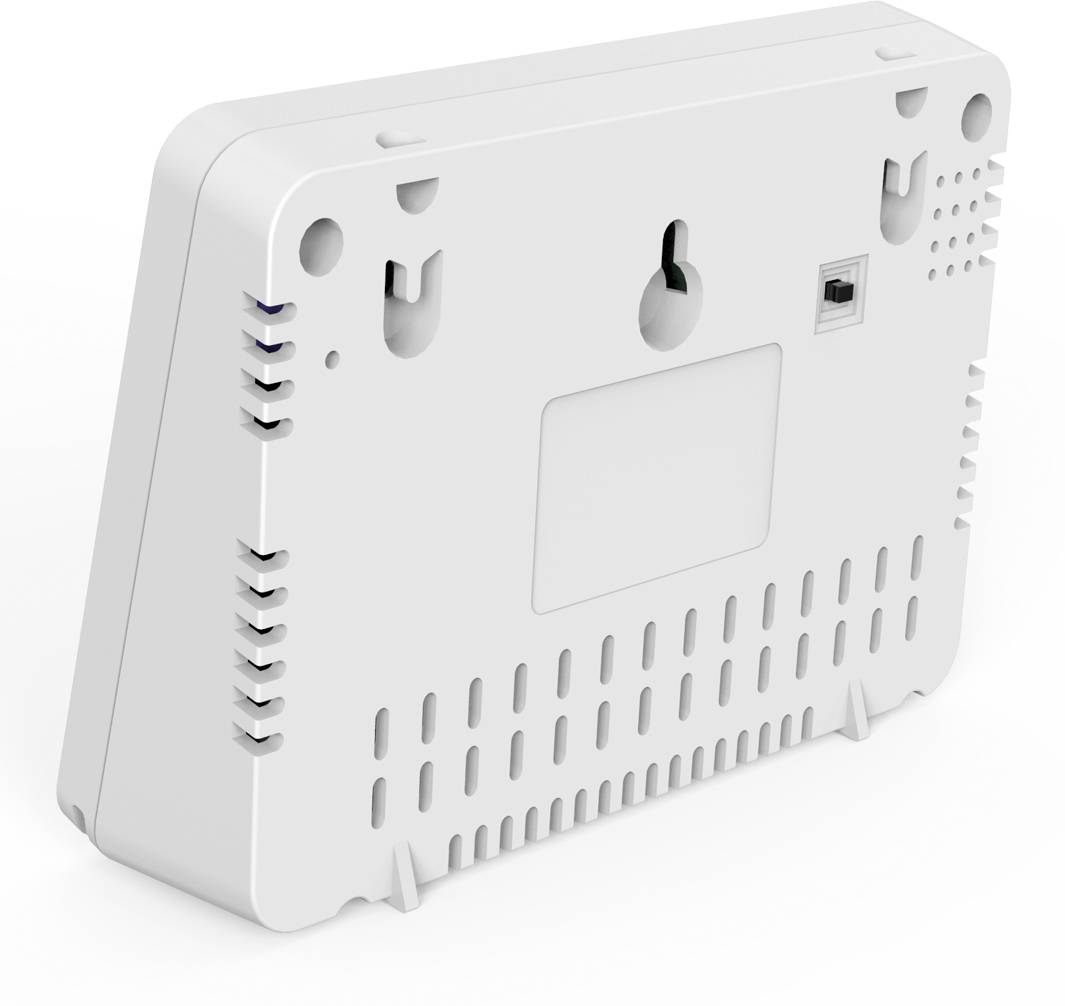

In order to maintain a long-term overview, the measured data is also permanently logged using the built-in memory. The measuring device can be flexibly set up on any table or on the shelf, or it can also be mounted on the wall in a space-saving manner. However, the screws for this are not included in the delivery. The charging takes place completely without batteries via the accompanying USB-cable.
This text is machine translated.
Ideal for use in companies, factory buildings, schools, offices or public transport: The compact and clear SA 1200P CO2 meter with data logger is a practical tool when it comes to measuring indoor air quality. It reliably displays the carbon dioxide content (CO2) in all building areas where an exact analysis and monitoring of the air quality is desired or required.
Visual and audible alarm
The modern white measuring device has an LED display with background lighting and easy to read numbers. Next to the CO2 value, the temperature and the air humidity are displayed. Particularly practical: If the CO2 value in the room exceeds a critical limit, the device responds with a visual and audible warning tone. Thanks to this practical function, the measuring device - whether in the classroom or in the open-plan office - makes clear quickly and unequivocally when it is time for ventilation.
Durable and space-saving
In order to maintain a long-term overview, the measured data is also permanently logged using the built-in memory. The measuring device can be flexibly set up on any table or on the shelf, or it can also be mounted on the wall in a space-saving manner. However, the screws for this are not included in the delivery. The charging takes place completely without batteries via the accompanying USB-cable.
This text is machine translated.

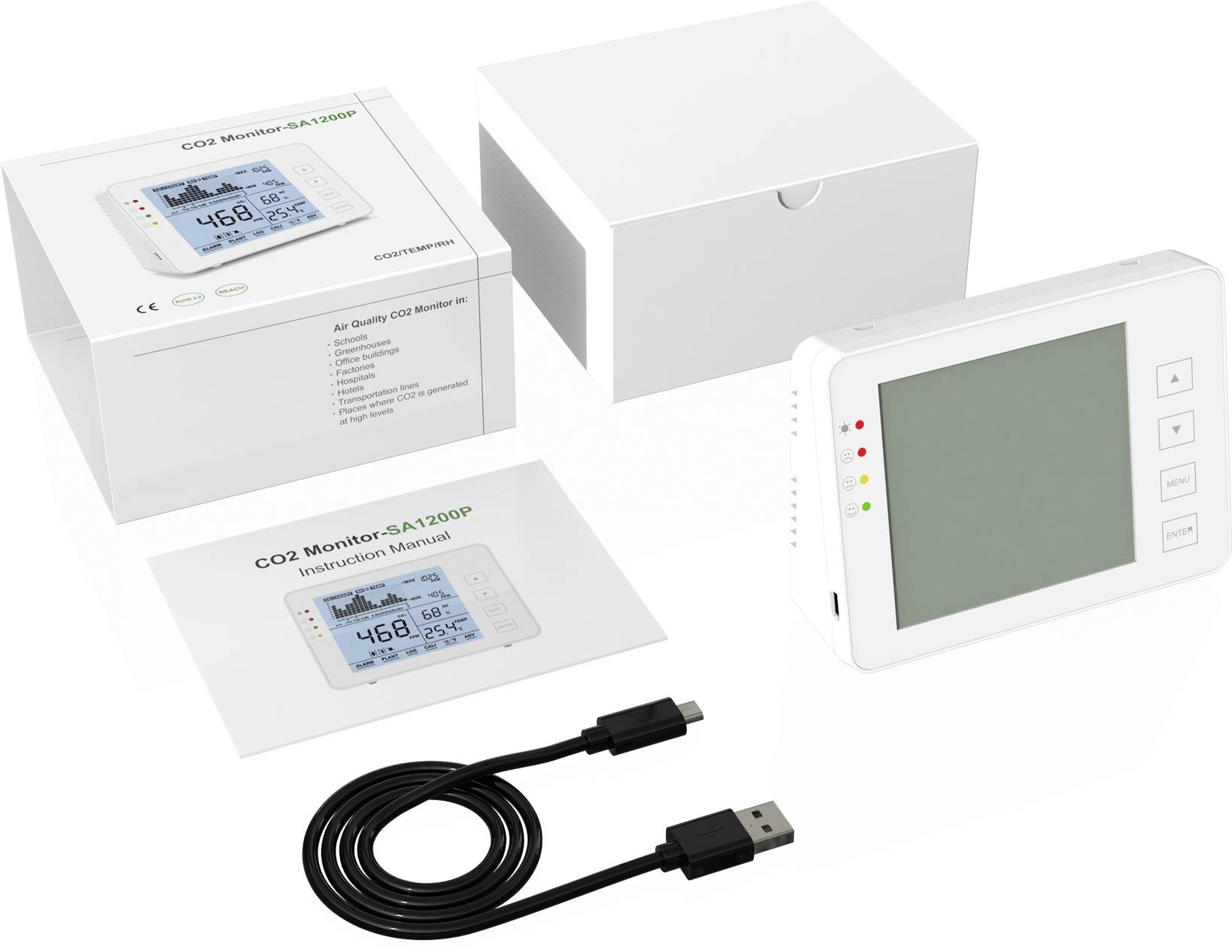

Scope of delivery
- CO2 monitor
- USB cable
- Instruction sheet
- User manual
