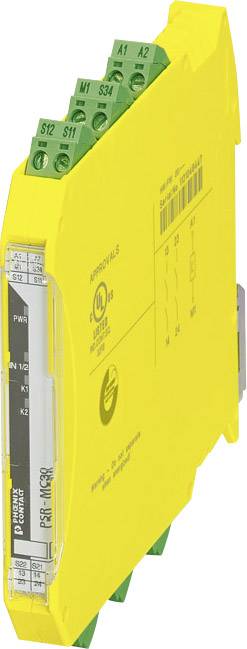

Safety relay PSR-MC30-2NO-1DO-24DC-SP Phoenix Contact Operating voltage: 24 V DC 2 makers (W x H x D) 12.5 x 116.6 x 114
EAN:
Part number:
Item no:
Product type
Safety relay
Connector
Spring force connector
Operating voltage
24 V DC
Type
PSR-MC30-2NO-1DO-24DC-SP
Contact type
2 makers
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 168.06 / piece)
€ 176.47
-5 %
€
Technical specifications
- Product type
Safety relay
- Type
PSR-MC30-2NO-1DO-24DC-SP
- Connector
Spring force connector
- Operating voltage
24 V DC
- Contact type
2 makers
- Switching voltage (max.)
250 V DC
250 V AC
- Switching current (max.)
6 A
- Depth
114.5 mm
- Width
12.5 mm
- Height
116.6 mm
- Dim
(W x H x D) 12.5 x 116.6 x 114.5 mm
- Content
1 pc(s)
12.5
Basic device
116.6 mm
114.5 mm
TRUE
Spring clamp connection
TRUE
Documents & Downloads
Datasheet
Datasheet 1346333 Safety relay PSR-MC30-2NO-1DO-24DC-SP Phoenix Contact Operating voltage: 24 V DC 2 makers (W x H x D) 12.5 x 116.6 x 114
User & Safety Instructions
User & Safety Instructions 1346333 Safety relay PSR-MC30-2NO-1DO-24DC-SP Phoenix Contact Operating voltage: 24 V DC 2 makers (W x H x D) 12.5 x 116.6 x 114
User & Safety Instructions 1346333 Safety relay PSR-MC30-2NO-1DO-24DC-SP Phoenix Contact Operating voltage: 24 V DC 2 makers (W x H x D) 12.5 x 116.6 x 114
Description
Safety relay for Emergency Stop and protective doors up to SIL3, silcl 3, category 4, PL e, 1- or 2-channel operation, automatic or manual, monitored start, cross-circuit detection.
