Schneider Electric 13189 Switchboard cabinet Content 1 pc(s)

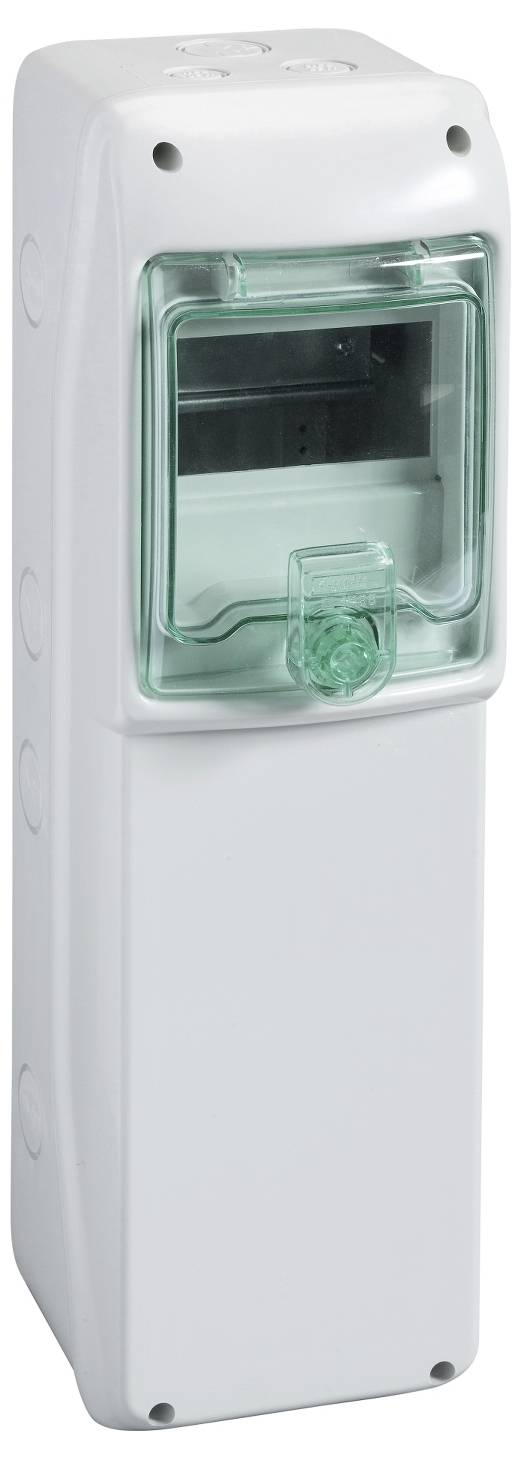

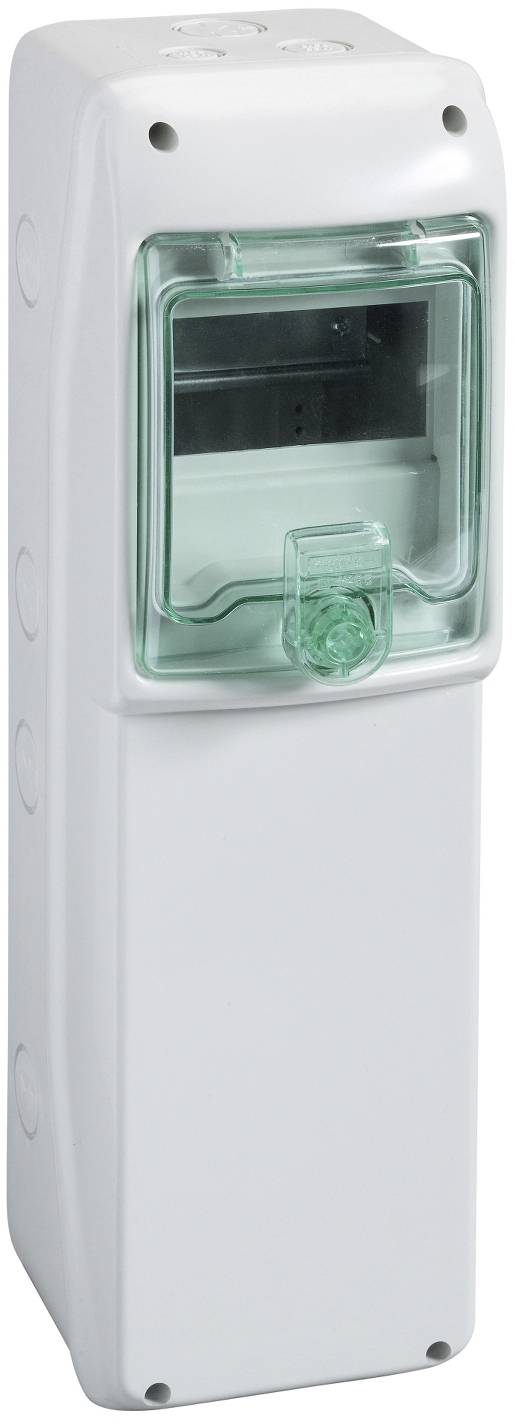

This Kaedra weather protection housing is a versatile surface-mounted housing for sockets. It can accommodate all types of modular switching devices. There is a zone for industrial or domestic mains outlets, buttons or indicator lights. The IP protection class is IP65. It is equipped with a transparent green door for modular devices. The color of the housing is light gray (RAL 7035). It is intended for installation in new or renovated residential buildings. The cables can be inserted through 3 cutouts at the top of the housing. It is equipped with a rear panel and a front cover with a recess. It is equipped with a DIN rail, 2 plates for 65x85mm sockets and 1 plate for the push button control. There is 1 terminal supplied. The terminal blocks have 4 outputs (2x10mm² + 2x16mm²). A labeling set is also included in the delivery. The electrical insulation class is Class II (double insulated). The over-voltage category is Class II. The power loss is 12 W. The rated input current is up to 63A. This product complies with the standards IEC 61439-1 and 3, IEC 60670-1 and 24. The dimensions are (W) 138mm x (H) 460mm x (T) 160mm. The product weight is 1.4 kg. The material is a self-extinguishing plastic material. Its resistance to flames and abnormal heat is 650°C according to IEC 60695-2-1. It is halogen-free. The IK protection class is IK09. Operating temperature is 25-40 °C.

This text is machine translated.
