Schneider Electric C080B4FM Circuit breaker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Circuit breaker
Type
C080B4FM
IP rating
IP40
Content
1 pc(s)
Number of pins
4
Datasheet (PDF)
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 0
- Number of auxiliary contacts as changer: 0
- Number of auxiliary contacts as NC contacts: 0
- Actuator type: Rocker switch
- Rated continuous current IU 800 A
- Rated short circuit switch-off current ICU at 400 V, 50 Hz: 200 kA
- Rated voltage: 690/-690 V
- Suitable for DIN rail mounting: No.
- Device type: Built-in device permanent installation technology
- DIN rail mounting optional: No.
- Built-in ground fault protection: No.
- Complete unit with protection unit: No.
- With trip indicator: Yes
- With integrated undervoltage release: No.
- Motor drive integrated: No.
- Motor drive optional: Yes
- Location of the main circuit connector: Front
- Power loss: 80 W
- Product type
Circuit breaker
- Type
C080B4FM
IP40
- Content
1 pc(s)
- Number of pins
4
0
0
800 A
FALSE
4
0
690-690 V
80 W
IP40
Front side
FALSE
Screw connection
Rocker lever
TRUE
200 kA
FALSE
FALSE
TRUE
Built-in device fixed built-in technique
FALSE
FALSE
Documents & Downloads
Datasheet
Datasheet 3756421 Schneider Electric C080B4FM Circuit breaker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3756421 Schneider Electric C080B4FM Circuit breaker 1 pc(s)
Description

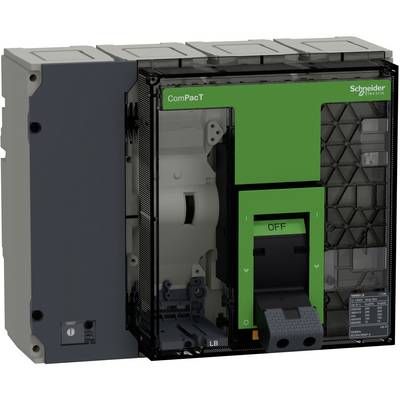

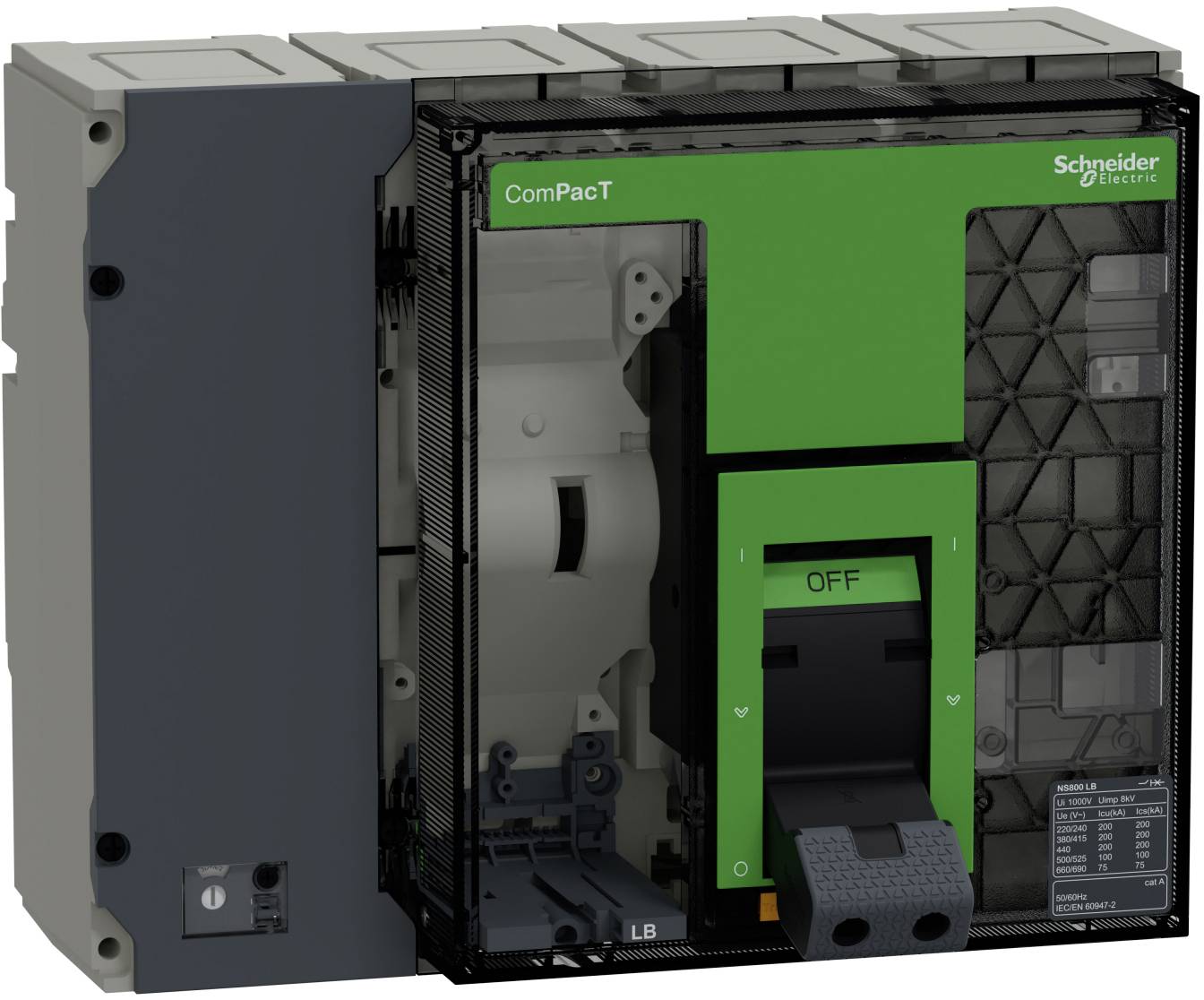

This circuit breaker is part of the new generation of the Compact NS630bN to NS3200 series. The new generation of the Compact NS offers the same performance and features a new transparent front cover for the visibility of the auxiliary equipment and a new toggle switch with ergonomic handle. It is possible to add the new wireless auxiliary contact OF/SD as an option in the ZigBee communication protocol. It is a 4-pin switch frame for the Compact NS800LB without control unit designed to optimize space and switching capacity. This switch or base frame is compatible with any type of control unit that must be ordered separately through the product selector. This switch frame is used for manually operated circuit breakers in fixed installation. It is an optimum choice for all standard and special applications. The breaking capacity (ICU) is 200kA RMS at 415VAC 50/60Hz. The operating voltage is 690VAC 50/60Hz. The operating current is 800A. This product comes with a variety of optional features and accessories. The dimensions are 327mm (height) x 280mm (width) x 147mm (depth). It conforms to the international standards IEC 60947-1 and IEC60947-2. Compact NS of the new generation is part of the Schneider Electric EcoStruxure Power architecture. Compact NS of the new generation is more sustainable with green packaging and green partnerships.
