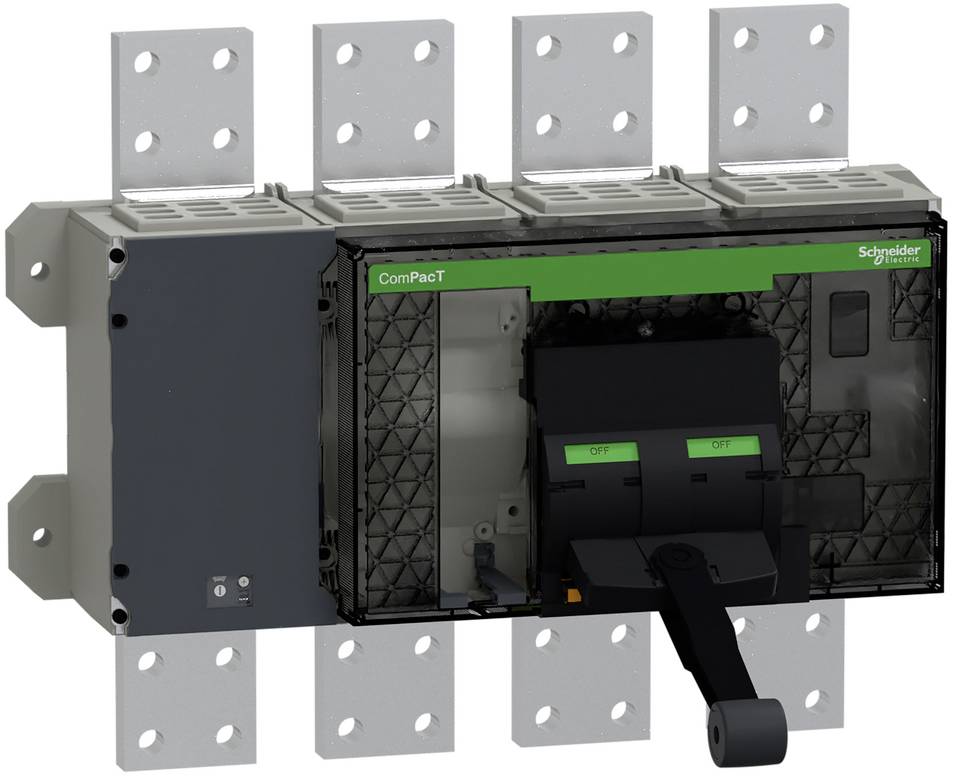

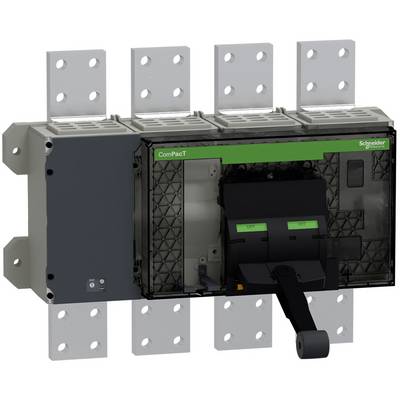

Schneider Electric C250S4FM Isolator switch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolator switch
IP rating
IP40 (Front)
Width
350 mm
Height
535 mm
Content
1 pc(s)
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 15,724.03 / piece)
€
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 0
- Number of auxiliary contacts as changer: 0
- Number of auxiliary contacts as NC contacts: 0
- Number of switches: 1
- Main switch version: Yes
- Design as an emergency-OFF device: No.
- Safety switch version: No.
- Design as maintenance/repair switch: Yes
- Design as a turn-switch: No.
- Rated operating voltage 0-690 V
- Rated continuous current IU 2500 A
- Rated short-term current strength ICW 32 kA
- Colour of actuator: Black
- Suitable for front mounting 4-hole: Yes
- Suitable for front mounting in center: No.
- Suitable for distributor installation: Yes
- Suitable for intermediate construction: No.
- Device type: Built-in device permanent installation technology
- Max. Rated operating voltage Ue at AC: 690 V
- With pre-installed wiring: No.
- Motor drive integrated: No.
- Motor drive optional: No.
- Voltage trigger optional: Yes
- Lockable: Yes
- Product type
Isolator switch
IP40 (Front)
- Width
350 mm
- Height
535 mm
- Content
1 pc(s)
- Type
C250S4FM
- Dim
(W x H x D) 350 x 535 x 160 mm
- Depth
160 mm
- Number of pins
4
Documents & Downloads
Datasheet
Datasheet 3756445 Schneider Electric C250S4FM Isolator switch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3756445 Schneider Electric C250S4FM Isolator switch 1 pc(s)
Description
This switch disconnector is part of the new generation of the Compact NS1600bNA up to NS3200NA series. The new generation of the Compact NS offers the same performance as the previous version and features a new design and a new ergonomic toggle switch. It is possible to add the new wireless auxiliary contact OF/SD as an option in the ZigBee communication protocol. The NS2500NA Compact is a 4-pin switch disconnectors used to control and disconnect circuits. This device is a stationary, manually operated version. This basic version does not include the front and rear power connections. The operating voltage is 690VAC 50/60Hz. The operating current (Ie) is 2500A (AC23A), and the conventional thermal current (Ith) is 2500A at 60°C. This product comes with a variety of optional features and accessories. Dimensions are 350mm (height) x 535 mm (width) x 160mm (depth). It conforms to the international standards IEC 60947-1 and IEC60947-3. Compact NS of the new generation is part of the Schneider Electric EcoStruxure Power architecture. Compact NS of the new generation is more sustainable with green packaging and green partnerships.
