Schneider Electric CAE40M5 Electrical contactor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
Type
CAE40M5
Width
45 mm
Height
74 mm
Depth
80 mm
Datasheet (PDF)
Technical specifications
- Auxiliary circuit connection type: Screw terminals
- Number of auxiliary contacts as NO contacts: 4
- Number of auxiliary contacts as NO contacts, leading: 0
- Number of auxiliary contacts as changer: 0
- Number of auxiliary contacts as NC contacts: 0
- Number of auxiliary contacts as NC contacts, delayed switching: 0
- Rated operating current Ie, 400 V 10 A
- Rated switching current 0,005 A
- Rated control supply voltage AC 50 Hz: 220-220 V
- Operating voltage AC 50 Hz: 690-690 V
- Operating voltage AC 60 Hz: 690-690 V
- Suitable for manual operation: No.
- With LED indicator: No.
- DIN rail/screw mounting
- Interface: No.
- Operating voltage type: AC
- Type of voltage for activation: AC
- Product type
Electrical contactor
- Type
CAE40M5
- Width
45 mm
- Height
74 mm
- Depth
80 mm
- Dim
(W x H x D) 45 x 74 x 80 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3757410 Schneider Electric CAE40M5 Electrical contactor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3757410 Schneider Electric CAE40M5 Electrical contactor 1 pc(s)
Description

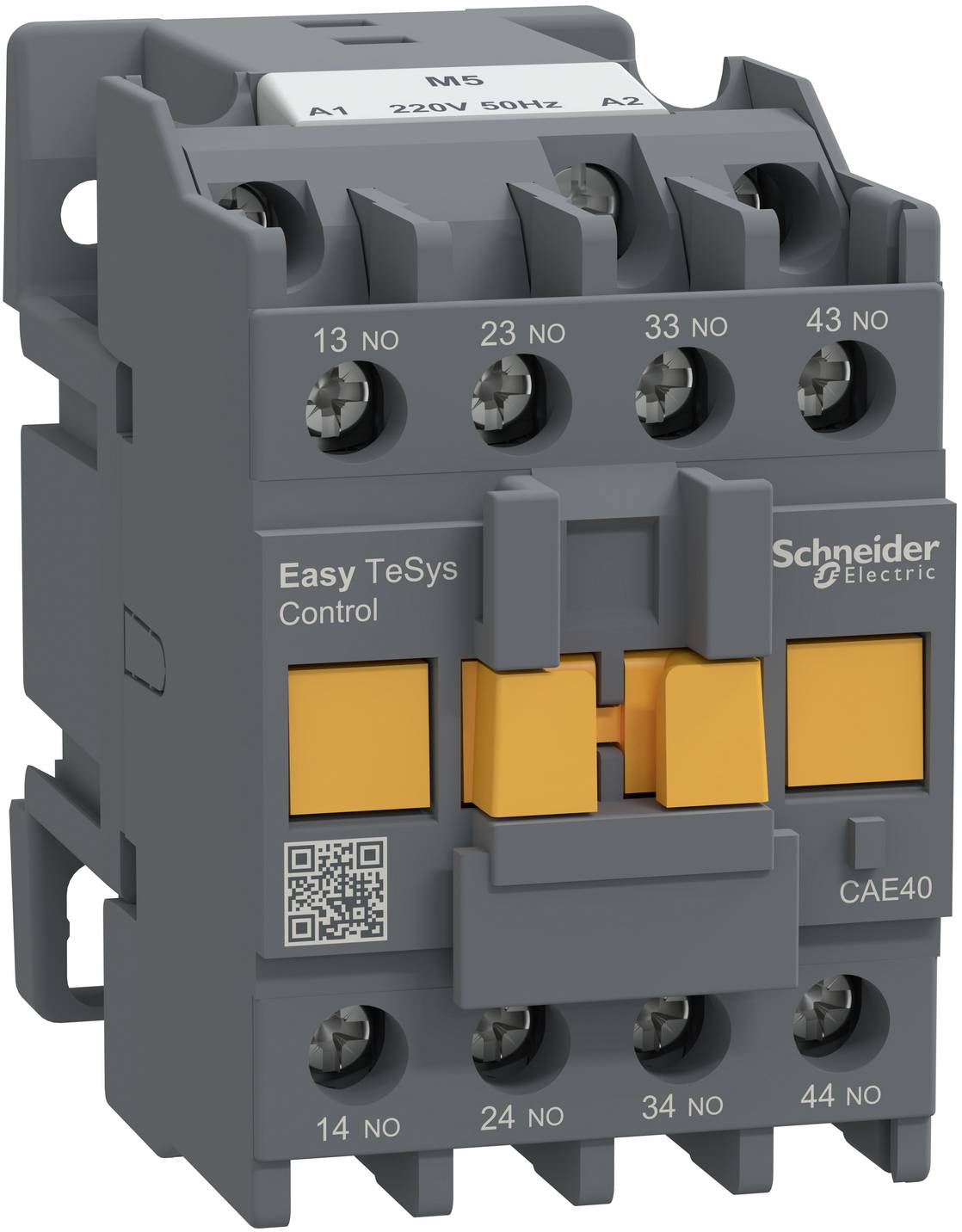

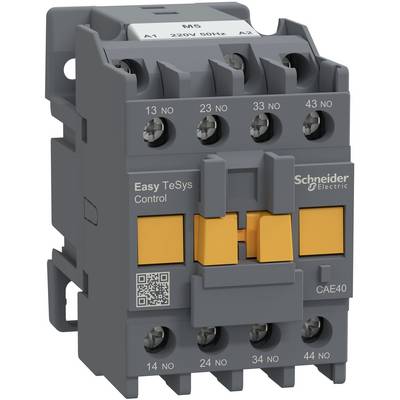

Easy TeSys control relay for use categories AC-15/AC-14 to 10A/690V. It offers 4 instantaneous contacts (4NO), a 220V 50Hz AC coil, connections via screw terminals. For demanding applications with standard operating speeds up to 3 cycles/second, it offers standard reliability and durability. Compact (45mm width), for clipping onto 35mm DIN-rails or mounting. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.
