Schneider Electric Distribution Block 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution Block
Content
1 pc(s)
Type
LVS04045
Nominal current
125 A
Mounting method
DIN-rail/screw
Datasheet (PDF)
Technical specifications
- Product type
Distribution Block
- Content
1 pc(s)
- Type
LVS04045
125 A
DIN-rail/screw
108
127 mm
48 mm
Screwless
4
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
Documents & Downloads
Datasheet
Datasheet 2936411 Schneider Electric Distribution Block 1 pc(s)
Datasheet 2936411 Schneider Electric Distribution Block 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2936411 Schneider Electric Distribution Block 1 pc(s)
Information
Information 2936411 Schneider Electric Distribution Block 1 pc(s)
Information 2936411 Schneider Electric Distribution Block 1 pc(s)
Information 2936411 Schneider Electric Distribution Block 1 pc(s)
Information 2936411 Schneider Electric Distribution Block 1 pc(s)
Description

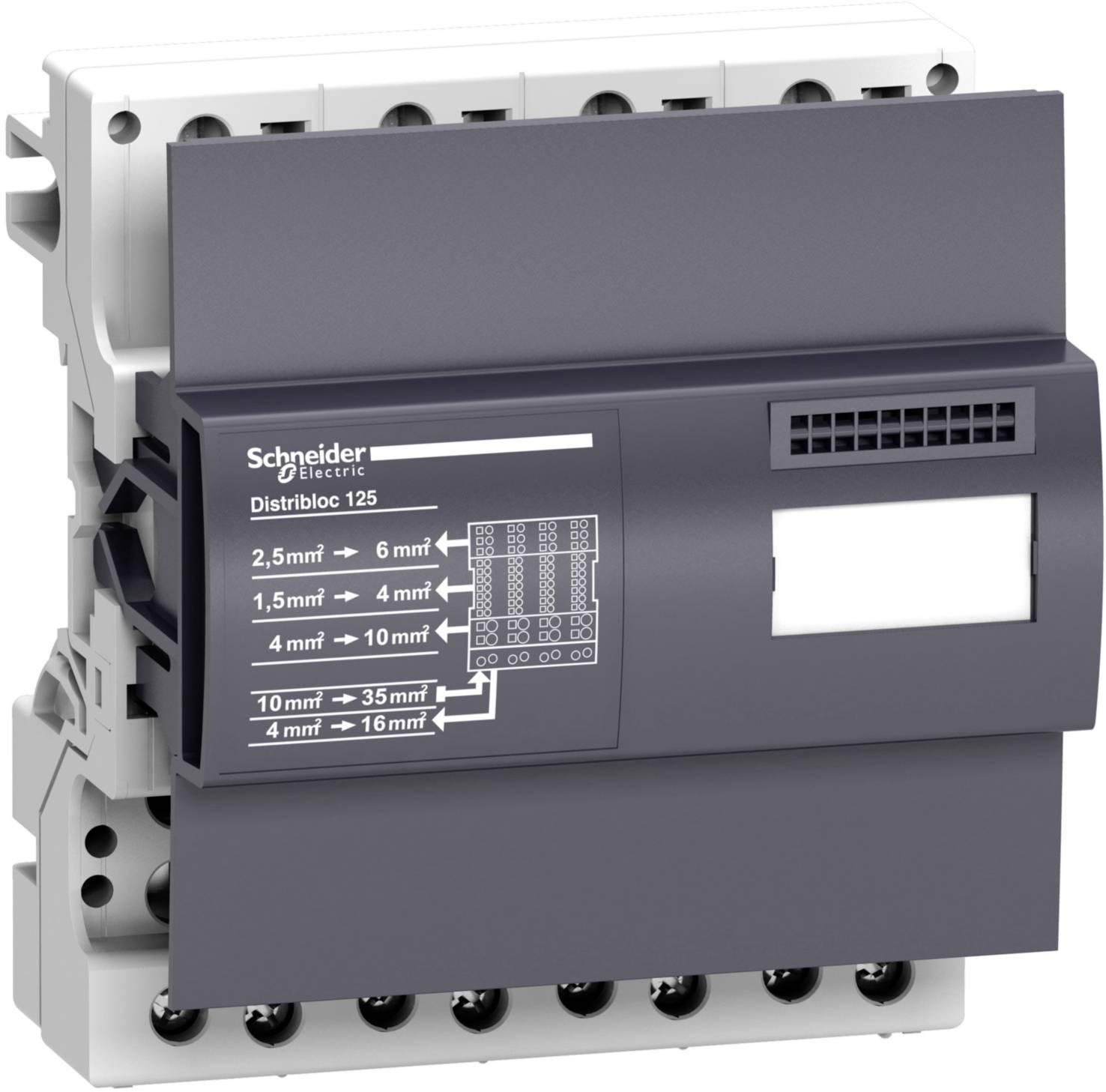

PrismaSet P. Linergy DX distribution block 4-pin with a permissible current of up to 125 A with feed terminals up to 35 mm² and outlet-side connection capacity for cables of 7 x 4 mm² per phase and 3 x 6 mm² per phase and 2 x 10 mm² per phase and. 1 x 16 mm² per phase, with a rated surge resistance (Ipk) 20 kA, rated short-circuit current (ISC) 150 kA with supply-side protection of 150 kA (ICC), rated insulation voltage (UI) 750 V AC, rated voltage (Ue) 690 V AC. Rated surge voltage strength (Uimp) 8 kV, with protection type IPXXB for mounting on a DIN rail or screwed onto a mounting plate. With a width of 6 module units (18 mm), a height of 127 mm and a depth of 48 mm.
