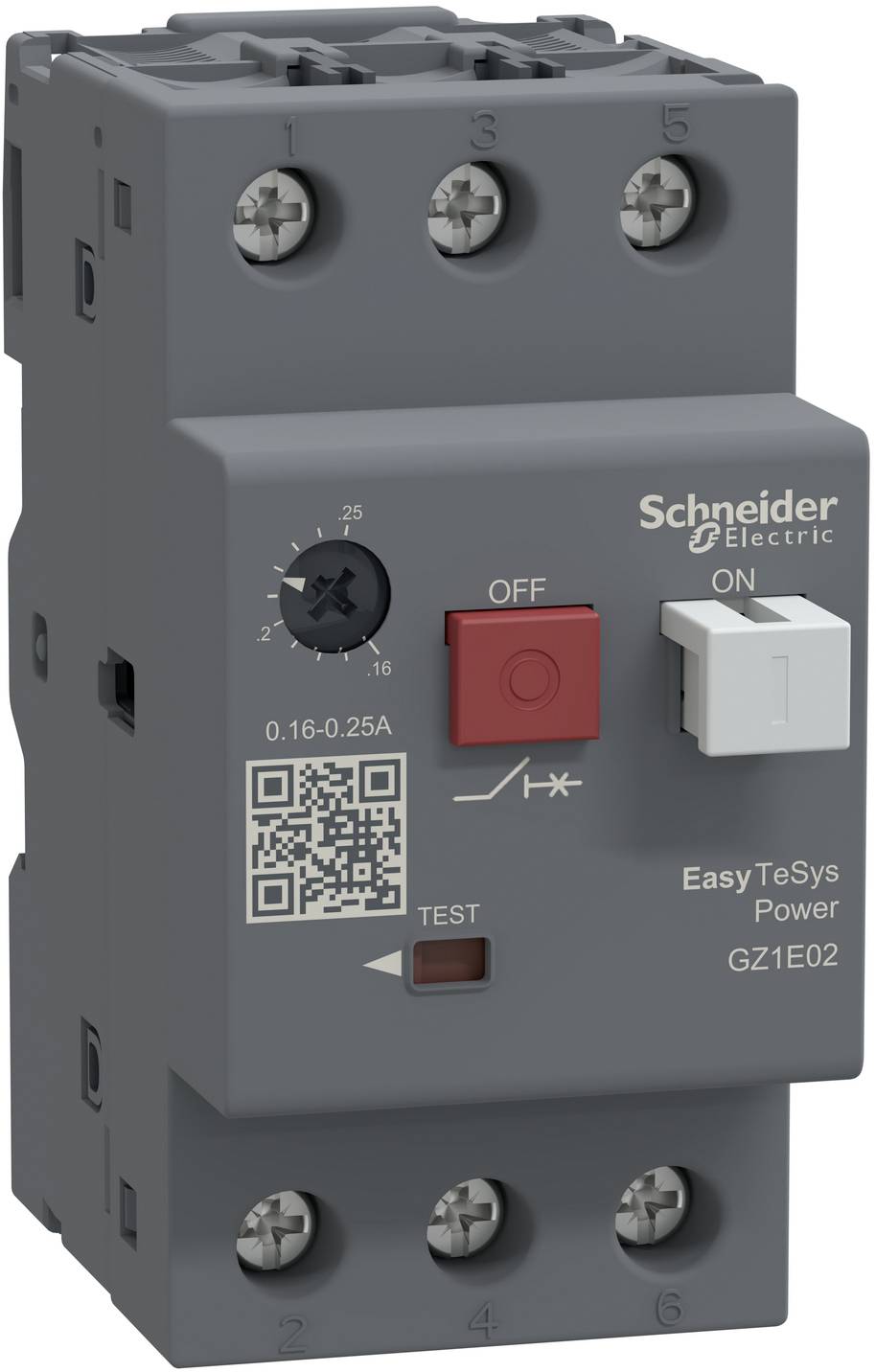

Schneider Electric GZ1E02 Motor surge protector switch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Motor surge protector switch
IP rating
IP20
Width
44.5 mm
Height
89 mm
Content
1 pc(s)
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 71.19 / piece)
€
Technical specifications
- Connection type main circuit: Screw terminals
- Actuator type: Pushbutton
- Activation technology: Thermomagnetic
- Rated operating voltage 690-690 V
- Rated continuous current IU 0.25 A
- Rated limit short circuit switch-off current ICU at 400 V, AC:100 kA
- Setting range of the undelayed short-circuit release: 2.4-2.4 A.
- Device type: Complete unit in housing
- With integrated auxiliary switch: No.
- With integrated undervoltage release: No.
- With thermal overload protection: Yes
- Phase failure sensitive: Yes
- Power loss: 2.5 W
- Overload release current setting 0.16-0.25 A
- Product type
Motor surge protector switch
IP20
- Width
44.5 mm
- Height
89 mm
- Content
1 pc(s)
- Type
GZ1E02
- Dim
(W x H x D) 44.5 x 89 x 78 mm
- Depth
78 mm
- Number of pins
3
Documents & Downloads
Datasheet
Datasheet 3754776 Schneider Electric GZ1E02 Motor surge protector switch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3754776 Schneider Electric GZ1E02 Motor surge protector switch 1 pc(s)
Description
GZ1E are 3-pole (3P) thermal magnetic circuit breakers for motor protection, compliant with IEC 60947-2 and IEC 60947-4-1. Thermal setting range from 0.16-0.25A. It offers standard reliability and an electrical/mechanical life of 0.1 MIO cycles. These circuit breakers are designed for connection with screw terminals. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.
