Schneider Electric GZ1E03 Overload relay 1 pc(s)
EAN:
Part number:
Item no:
Product type
Overload relay
IP rating
IP20
Width
44.5 mm
Height
89 mm
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Connection type main circuit: Screw terminals
- Actuator type: Pushbutton
- Activation technology: Thermomagnetic
- Rated operating voltage 690-690 V
- Rated continuous current IU 0.4 A
- Rated limit short circuit switch-off current ICU at 400 V, AC:100 kA
- Setting range of the undelayed short-circuit release: 5-5 A.
- Device type: Complete unit in housing
- With integrated auxiliary switch: No.
- With integrated undervoltage release: No.
- With thermal overload protection: Yes
- Phase failure sensitive: Yes
- Power loss: 2.5 W
- Overload release current setting 0.25-0.4 A
IP20
- Width
44.5 mm
- Height
89 mm
- Content
1 pc(s)
- Type
GZ1E03
- Dim
(W x H x D) 44.5 x 89 x 78 mm
- Depth
78 mm
- Number of pins
3
44.5 mm
89 mm
78 mm
FALSE
0.4 A
FALSE
3
690-690 V
0.25-0.4 A
2.5 W
IP20
TRUE
Screw connection
Push button
Thermomagnetic
100 kA
5-5 A
TRUE
Complete device in housing
- Product type
Overload relay
Documents & Downloads
Datasheet
Datasheet 3754777 Schneider Electric GZ1E03 Overload relay 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3754777 Schneider Electric GZ1E03 Overload relay 1 pc(s)
Description

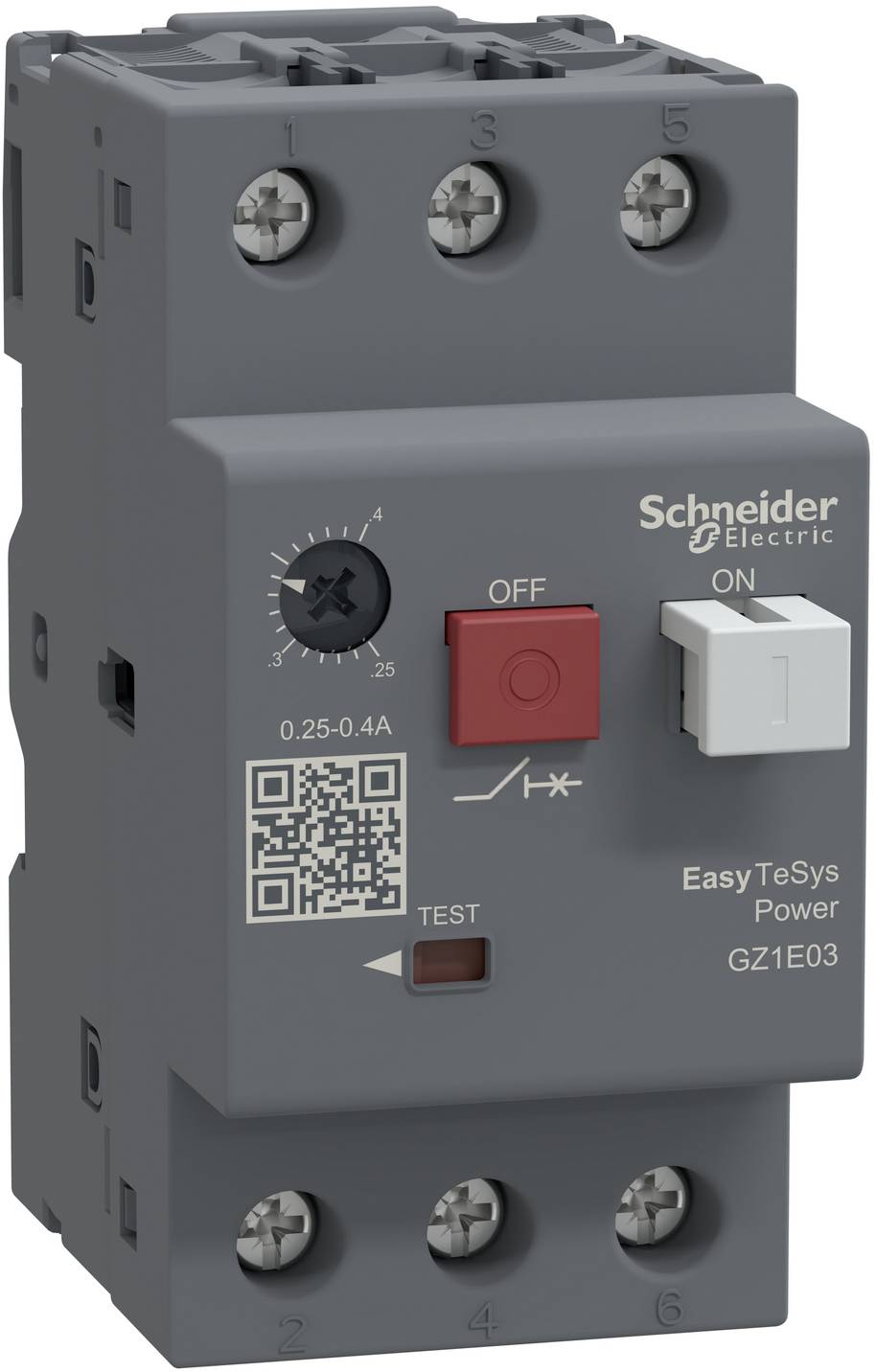

GZ1E are 3-pole (3P) thermal magnetic circuit breakers for motor protection, compliant with IEC 60947-2 and IEC 60947-4-1. Thermal setting range from 0.25-0.4A. It offers standard reliability and an electrical/mechanical life of 0.1 MIO cycles. These circuit breakers are designed for connection with screw terminals. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.
