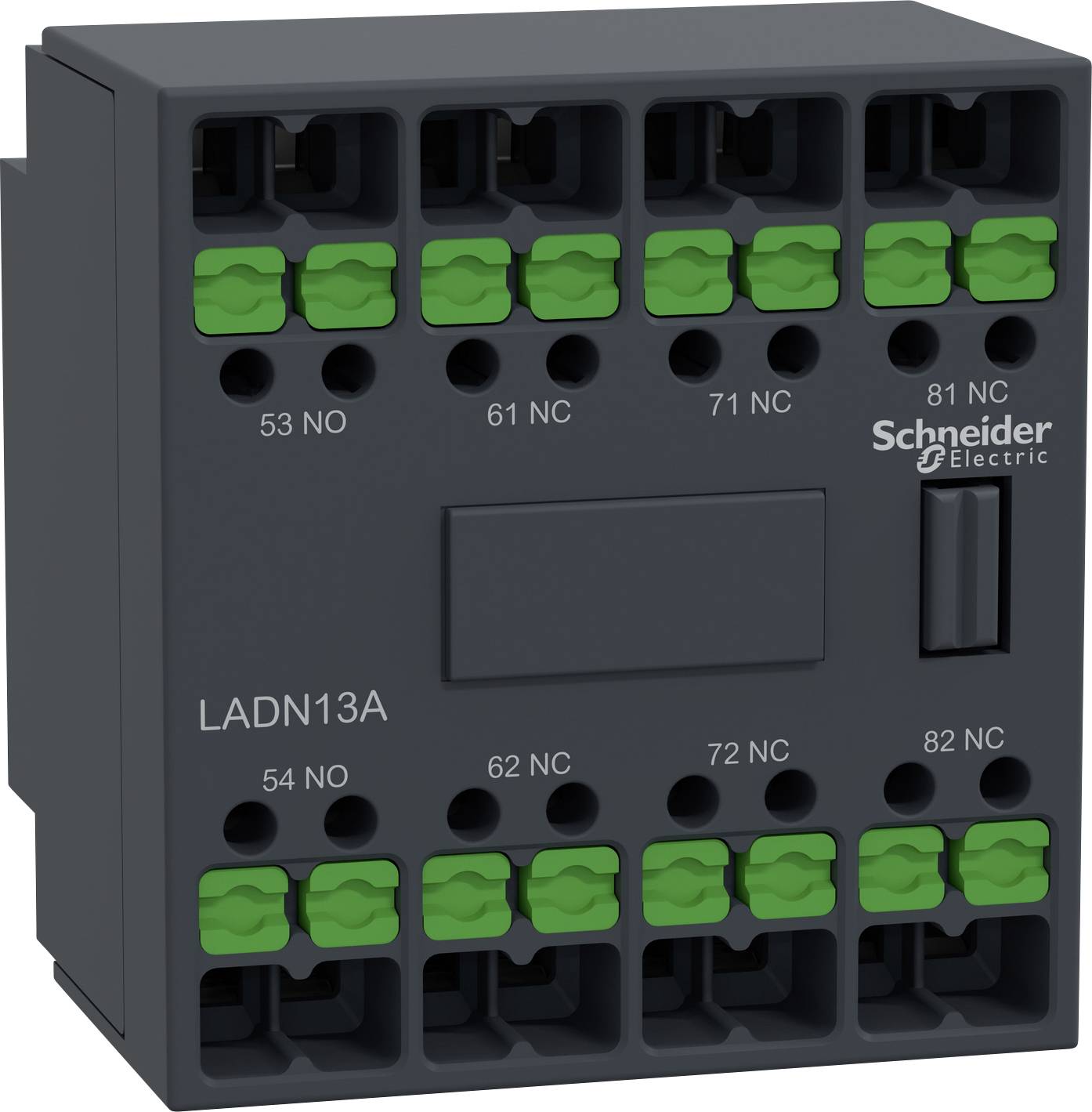

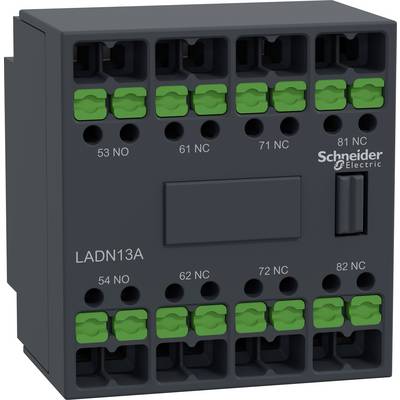

Schneider Electric LADN13A Auxiliary switch module 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary switch module
Connection
Snap-in
Type
LADN13A
Content
1 pc(s)
Mounting method
Front fastening
Datasheet (PDF)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 20.16
3
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 20.16 / piece)
€
Highlights & Details
Auxiliary switch block, 1S+3Ö, snap-in connection terminals
- TeSys DECA contactors and motor circuit breakers with innovative snap-in connection technology
- The snap-in connection terminal closes with one click once the conductor has been correctly inserted
- Visual and haptic feedback of the wiring
- Flexible and rigid conductor can be inserted without wire end sleeve
- Tool-free and intuitive to use
- Secure wiring even in case of strong vibrations, no retightening needed
- "Ready to Robot" e.g. for automatic control cabinet construction
Technical specifications
- Product type
Auxiliary switch module
- Type
LADN13A
- Connection
Snap-in
- Content
1 pc(s)
Front fastening
Top mounting
10 A
Other
0
3
1
0
Documents & Downloads
Datasheet
Datasheet 3412553 Schneider Electric LADN13A Auxiliary switch module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3412553 Schneider Electric LADN13A Auxiliary switch module 1 pc(s)
Description
Auxiliary contact block LADN. Undelayed auxiliary switch block for LC1D contactors and CAD control relays. It offers 1 NO+3 NC contacts with a nominal voltage of up to 10 A, 690 V AC, connection via snap-in terminal Simple clip-on assembly on the front side for high reliability and durability. Fast, safe and maintenance-free power connection with Snap In connection terminal Suitable for security applications thanks to mechanically coupled contacts and mirror contacts.
