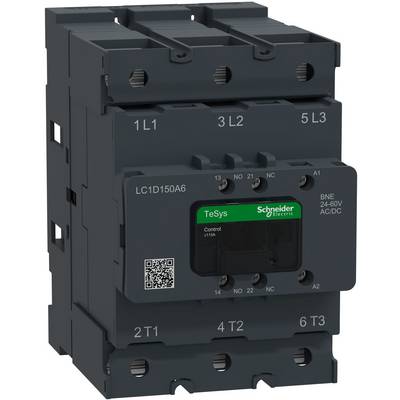

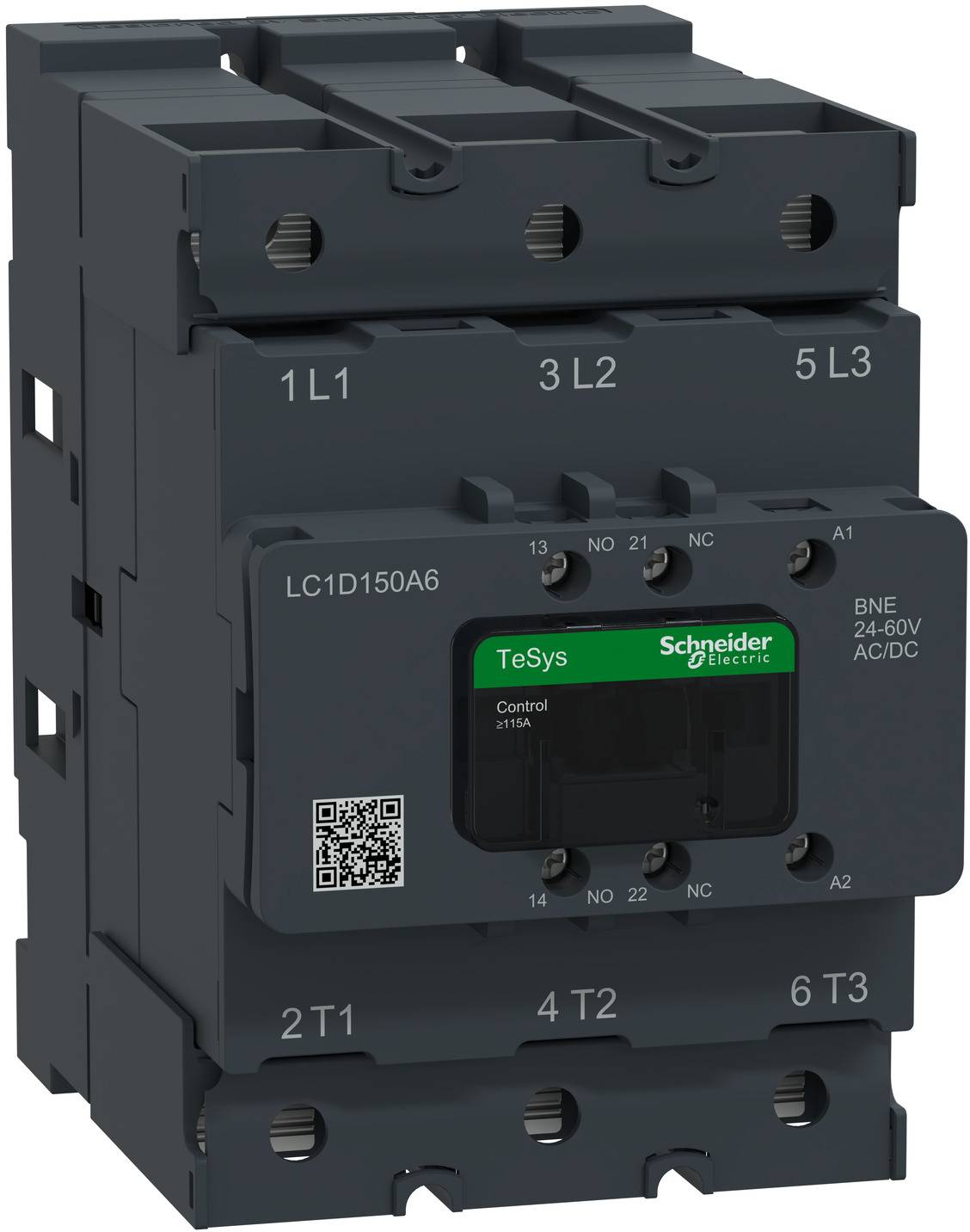

Schneider Electric LC1D150A6BNE Electrical contactor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
Type
LC1D150A6BNE
Width
99 mm
Height
152 mm
Depth
155 mm
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 415.97 / piece)
€
Technical specifications
- Connection type main circuit: Other
- Number of auxiliary contacts as NO contacts: 1
- Number of auxiliary contacts as NC contacts: 1
- Number of NO contacts as main contacts: 3
- Number of NC contacts as main contacts: 0
- Rated operating power at AC-3, 400 V: 75 kW
- Rated operating power at AC-4, 400 V: 75 kW
- Rated operating current Ie at AC-1, 400 V:200 A.
- Rated operating current Ie at AC-3, 400 V:150 A.
- Rated operating current Ie at AC-4, 400 V:150 A.
- Rated control supply voltage AC 50 Hz: 24-60 V
- Rated control supply voltage AC 60 Hz: 24-60 V
- Rated control supply voltage DC 24-60 V
- Operating voltage AC 50 Hz: 440-440 V
- Operating voltage AC 60 Hz: 440-440 V
- Suitable for series installation: No.
- Type of voltage for activation: AC/DC
- Product type
Electrical contactor
- Type
LC1D150A6BNE
- Width
99 mm
- Height
152 mm
- Depth
155 mm
- Dim
(W x H x D) 99 x 152 x 155 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3754915 Schneider Electric LC1D150A6BNE Electrical contactor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3754915 Schneider Electric LC1D150A6BNE Electrical contactor 1 pc(s)
Description
TeSys DECA advanced contactor, 3-pole (3NO) for applications in category AC-3 up to 150A 75kW 400_440V. It is equipped with an electronic 24-60V AC/DC-broadband coil, which has a lower power consumption, as well as with integrated 1NO+1NC-auxiliary contacts. The mounting position is arbitrary and LRD43 can be mounted directly under the contactor. The operating temperature range is between -40 °C and 70 °C and can be installed at heights up to 3000 m without any loss of power. It is designed for demanding applications with improved performance under harsh environmental conditions such as salt fog, dust and strong impacts. The dimensions are 152 mm x 99 mm x 155 mm (H x W x D). The compact size reduces the space required. Simple cabling with front access to the control circuit improves accessibility and security. Front IP20 and improved robustness and connectivity of the main power connections are achieved by the bolt connections. Certified according to several standards (CE, CB, CCC, cULus, KC, RCM). Unique QR code allows quick access to complete product data.
