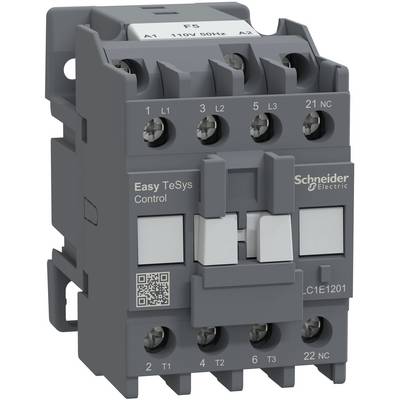

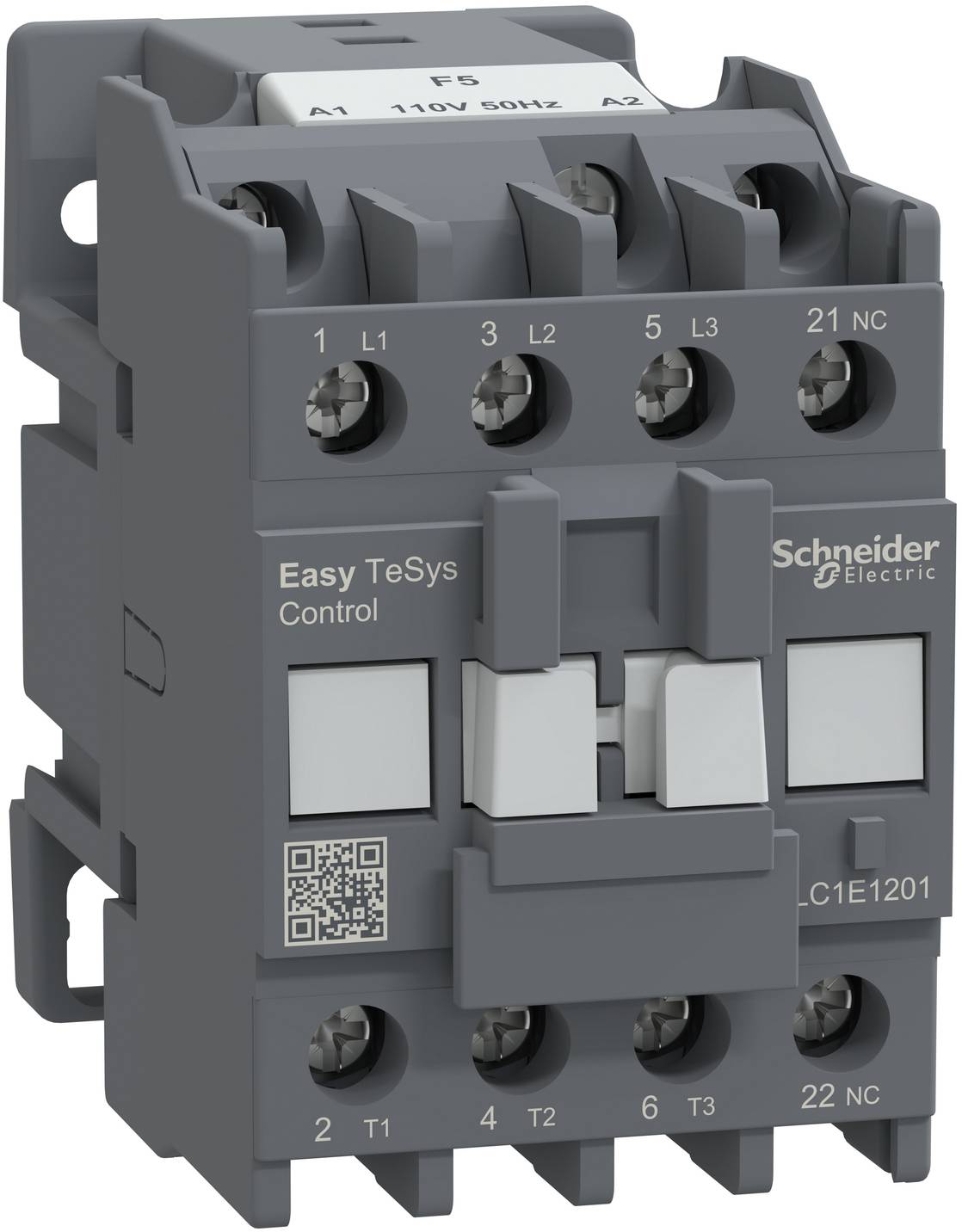

Schneider Electric LC1E1201F5 Electrical contactor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
Type
LC1E1201F5
Width
45 mm
Height
74 mm
Depth
80 mm
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 50.41 / piece)
€
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 0
- Number of auxiliary contacts as NC contacts: 1
- Number of NO contacts as main contacts: 3
- Number of NC contacts as main contacts: 0
- Rated operating power at AC-3, 400 V: 5.5 kW
- Rated operating current Ie at AC-1, 400 V:25 A.
- Rated operating current Ie at AC-3, 400 V:12 A.
- Rated control supply voltage AC 50 Hz: 110-110 V
- Operating voltage AC 50 Hz: 690-690 V
- Operating voltage AC 60 Hz: 690-690 V
- Suitable for series installation: No.
- Type of voltage for activation: AC
- Product type
Electrical contactor
- Type
LC1E1201F5
- Width
45 mm
- Height
74 mm
- Depth
80 mm
- Dim
(W x H x D) 45 x 74 x 80 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3754973 Schneider Electric LC1E1201F5 Electrical contactor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3754973 Schneider Electric LC1E1201F5 Electrical contactor 1 pc(s)
Description
Easy TeSys Control Contactor 3-pin for motor applications up to 12A 5.5kW 440V. IT offers a 110V 50Hz AC coil, 1NC built-in auxiliary contacts, power and control connections through screw terminals. 45mm width for standard operating rates up to 1800 cycles per hour. It offers standard reliability and long life with 1.4 MIO. Cycles of electrical life AC-3 and 10 MIO. Cycles of mechanical lifetime. It can be used at operating temperatures from -5°C to 55°C and mounted on DIN-rail, no derating up to 3000 m high. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.
