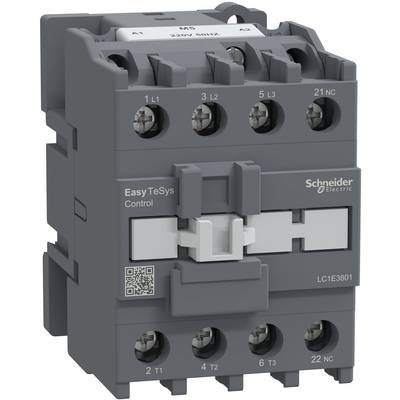

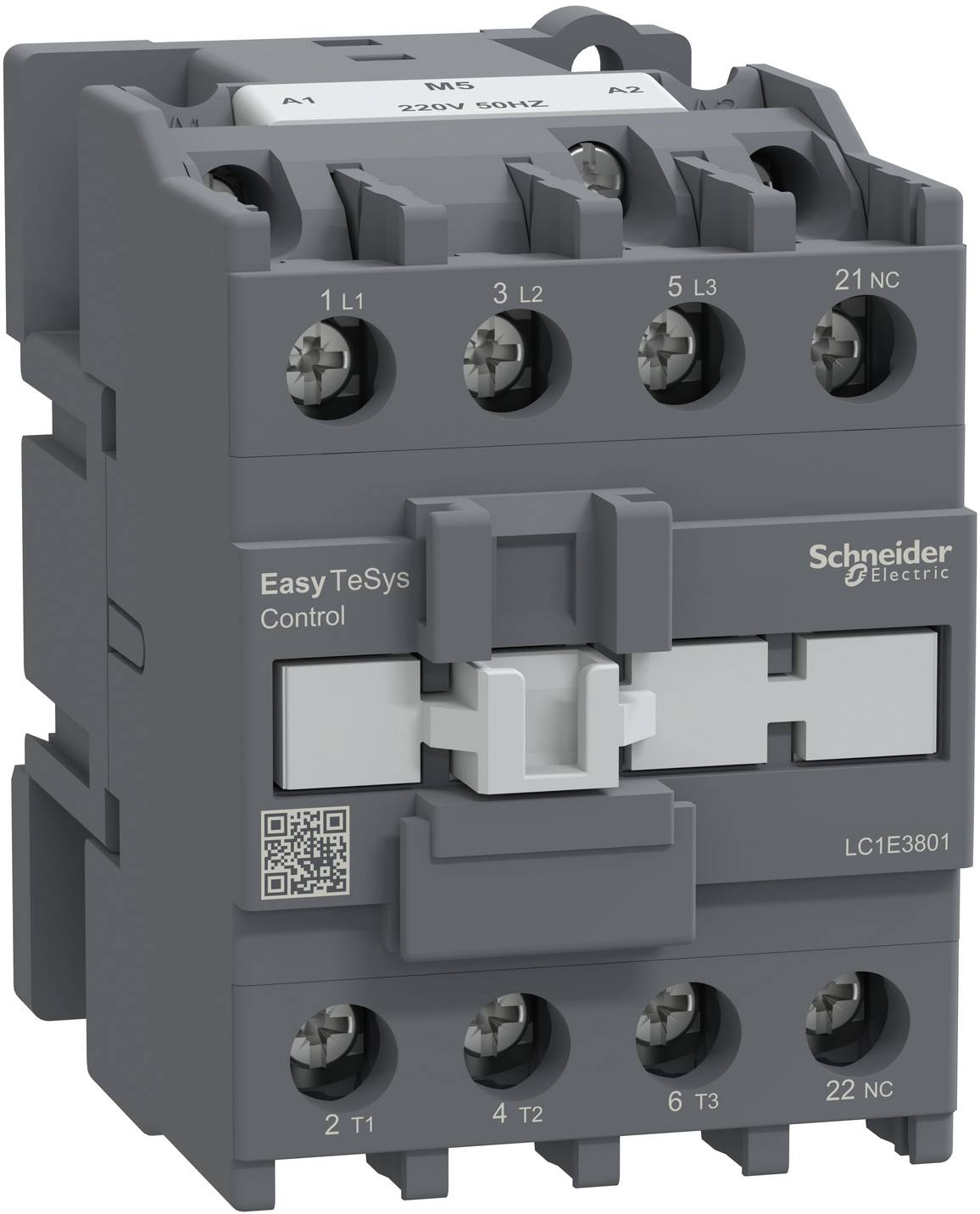

Schneider Electric LC1E3801M5 Electrical contactor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
Type
LC1E3801M5
Width
56 mm
Height
84 mm
Depth
86 mm
Datasheet (PDF)
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 0
- Number of auxiliary contacts as NC contacts: 1
- Number of NO contacts as main contacts: 3
- Number of NC contacts as main contacts: 0
- Rated operating power at AC-3, 400 V: 18.5 kW
- Rated operating current Ie at AC-1, 400 V:50 A.
- Rated operating current Ie at AC-3, 400 V:38 A.
- Rated control supply voltage AC 50 Hz: 220-220 V
- Operating voltage AC 50 Hz: 690-690 V
- Operating voltage AC 60 Hz: 690-690 V
- Suitable for series installation: No.
- Type of voltage for activation: AC
- Product type
Electrical contactor
- Type
LC1E3801M5
- Width
56 mm
- Height
84 mm
- Depth
86 mm
- Dim
(W x H x D) 56 x 84 x 86 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3755048 Schneider Electric LC1E3801M5 Electrical contactor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3755048 Schneider Electric LC1E3801M5 Electrical contactor 1 pc(s)
Description
Easy TeSys Control Contactor 3 pin for motor applications up to 38A 18.5kW 440V. It offers a 220V 50Hz AC coil, 1NC built-in auxiliary contacts, power and control connections by screw terminals 56mm width for standard operating rates up to 1800 cycles per hour. It offers standard reliability and long life with 0.9 MIO. Cycles of electrical life AC-3 and 8 MIO. Cycles of mechanical lifetime. It can be used at operating temperatures from -5°C to 55°C and mounted on DIN-rail, no derating up to 3000 m high. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.
