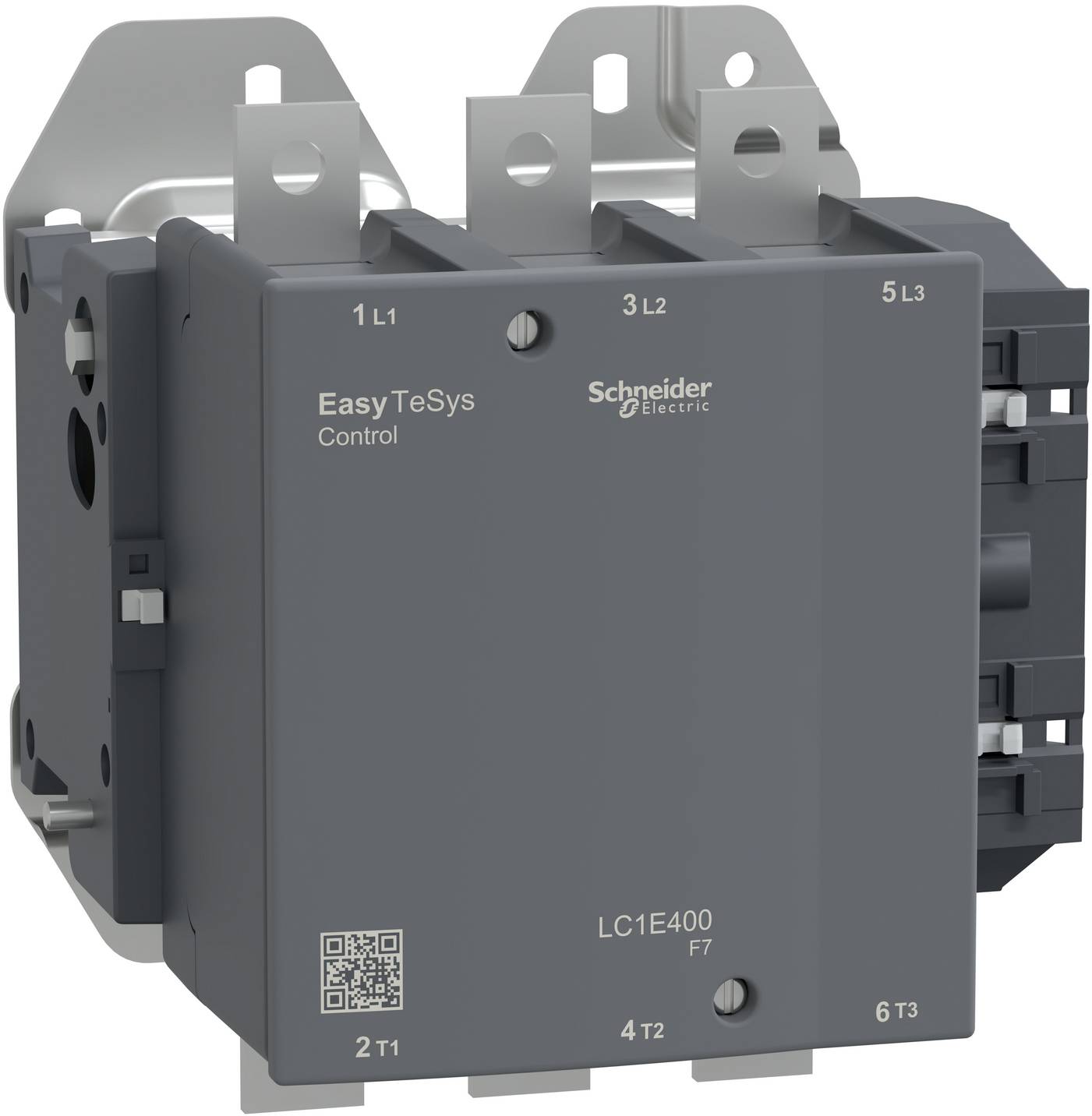

Schneider Electric LC1E400F7 Electrical contactor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
Type
LC1E400F7

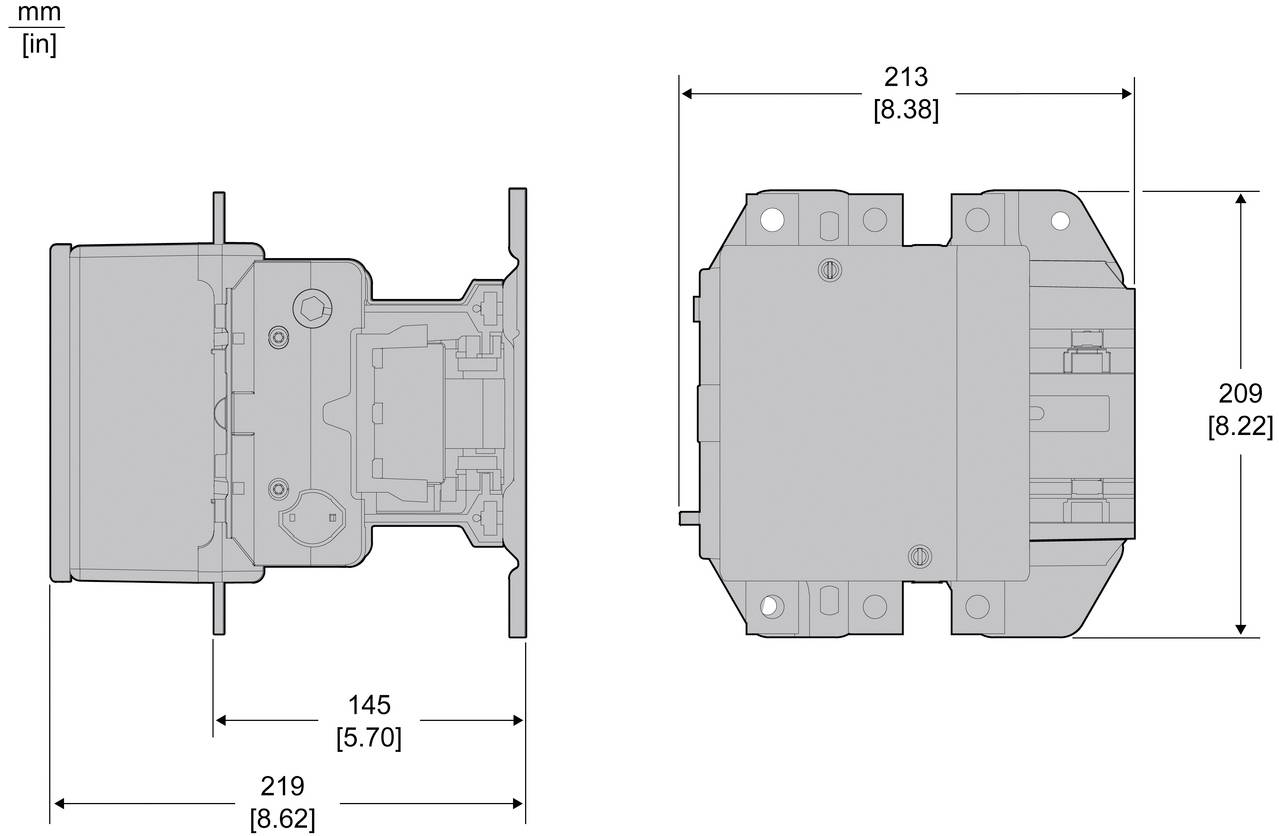

Width
213 mm
Height
375 mm
Depth
219 mm
Datasheet (PDF)
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 0
- Number of auxiliary contacts as NC contacts: 0
- Number of NO contacts as main contacts: 3
- Number of NC contacts as main contacts: 0
- Rated operating power at AC-3, 400 V: 200 kW
- Rated operating current Ie at AC-1, 400 V:500 A.
- Rated operating current Ie at AC-3, 400 V:400 A.
- Rated control supply voltage AC 50 Hz: 110-110 V
- Rated control supply voltage AC 60 Hz: 110-110 V
- Operating voltage AC 50 Hz: 690-690 V
- Operating voltage AC 60 Hz: 690-690 V
- Suitable for series installation: No.
- Type of voltage for activation: AC
- Product type
Electrical contactor
- Type
LC1E400F7
- Width
213 mm
- Height
375 mm
- Depth
219 mm
- Dim
(W x H x D) 213 x 375 x 219 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3756718 Schneider Electric LC1E400F7 Electrical contactor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3756718 Schneider Electric LC1E400F7 Electrical contactor 1 pc(s)
Description
Easy TeSys Control Contactor 3 pin for motor applications up to 400A 250kW 440V. IT offers a 110V 50/60Hz AC coil, without integrated auxiliary contacts, power and control connections through screw terminals. 213mm width for standard operating rates up to 2400 cycles per hour. It provides standard reliability and long life with an electrical life of 0.6 MIO. Cycles AC-3 and a mechanical life of 4 MIO. Cycles. It can be used at operating temperatures from -5°C to 55°C and can be mounted on DIN rails, no derating up to a height of 3000m. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliant.
