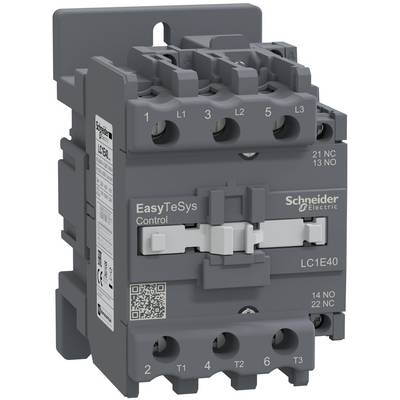

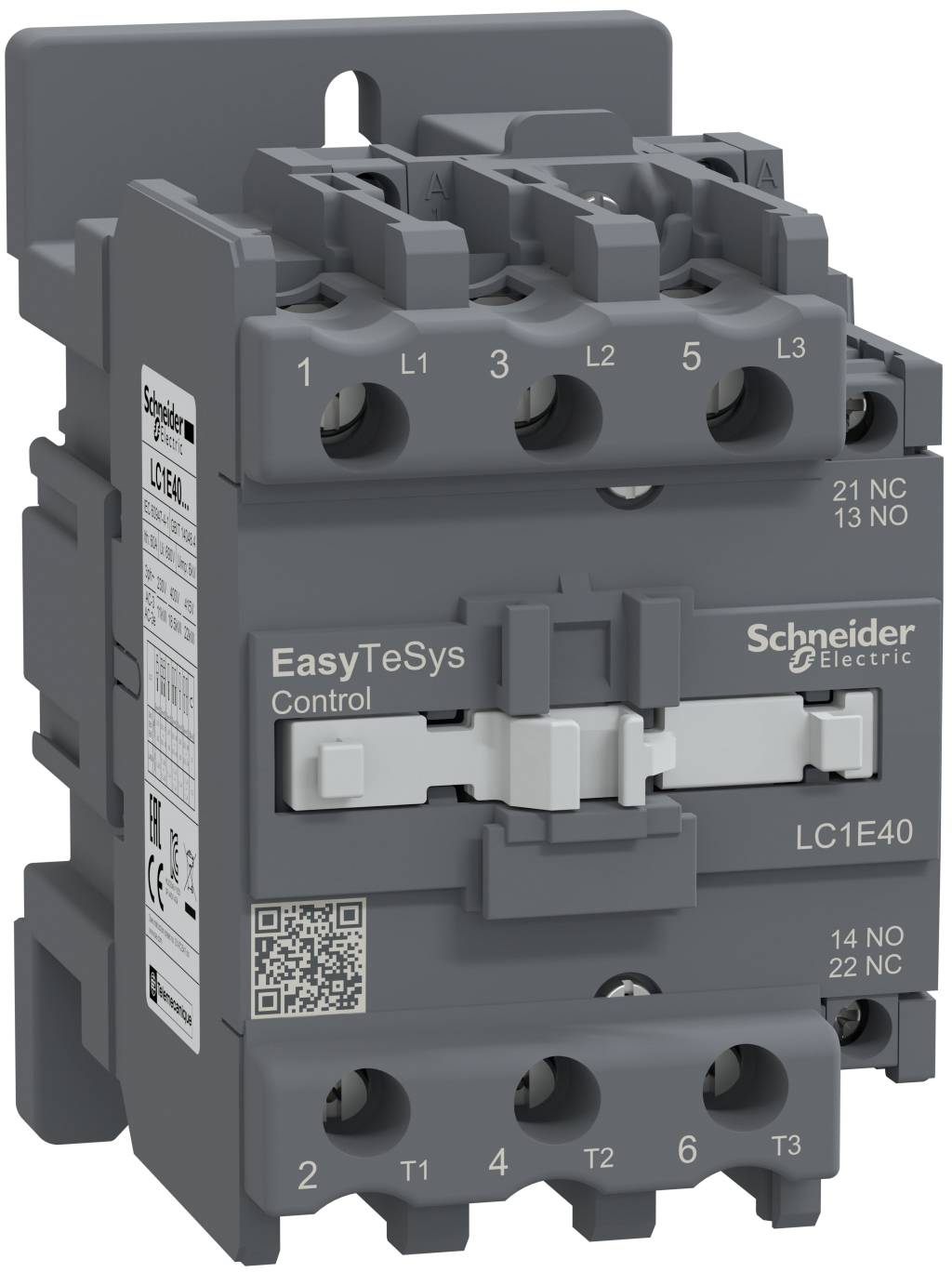

Schneider Electric LC1E40F7 Electrical contactor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
Type
LC1E40F7
Width
75 mm
Height
127 mm
Depth
114 mm
Datasheet (PDF)
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 1
- Number of auxiliary contacts as NC contacts: 1
- Number of NO contacts as main contacts: 3
- Number of NC contacts as main contacts: 0
- Rated operating power at AC-3, 400 V: 18.5 kW
- Rated operating current Ie at AC-1, 400 V:60 A.
- Rated operating current Ie at AC-3, 400 V:40 A.
- Rated control supply voltage AC 50 Hz: 110-110 V
- Rated control supply voltage AC 60 Hz: 110-110 V
- Operating voltage AC 50 Hz: 690-690 V
- Operating voltage AC 60 Hz: 690-690 V
- Suitable for series installation: No.
- Type of voltage for activation: AC
- Product type
Electrical contactor
- Type
LC1E40F7
- Width
75 mm
- Height
127 mm
- Depth
114 mm
- Dim
(W x H x D) 75 x 127 x 114 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3755094 Schneider Electric LC1E40F7 Electrical contactor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3755094 Schneider Electric LC1E40F7 Electrical contactor 1 pc(s)
Description
Easy TeSys Control Contactor 3 pin for motor applications up to 40A 22kW 440V. IT offers a 110V 50/60Hz AC coil, without integrated auxiliary contacts, power and control connections through screw terminals. 75mm width for standard operating rates up to 1200 cycles per hour. It offers standard reliability and long life with 0.9 MIO. Cycles of electrical life AC-3 and 5 MIO. Cycles of mechanical lifetime. It can be used at operating temperatures from -5°C to 55°C and can be mounted on DIN rails, no derating up to 3000 m high. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.
