Schneider Electric LV510470 Circuit breaker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Circuit breaker
Type
LV510470
IP rating
IP40
Content
1 pc(s)
Number of pins
3
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 231.09 / piece)
€
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as changer: 0
- Actuator type: Knob
- Rated continuous current IU 100 A
- Rated short circuit switch-off current ICU at 400 V, 50 Hz: 50 kA
- Rated voltage 440-440 V
- Setting range of the undelayed short-circuit release: 190-190 A.
- Suitable for DIN rail mounting: No.
- Device type: Built-in device permanent installation technology
- DIN rail mounting optional: No.
- Built-in ground fault protection: No.
- Complete unit with protection unit: Yes
- With trip indicator: Yes
- With integrated undervoltage release: No.
- Motor drive integrated: No.
- Motor drive optional: No.
- Location of the main circuit connector: Front
- Power loss: 3.05 W
- Overload release current setting 0-16 A
- Product type
Circuit breaker
- Type
LV510470
IP40
- Content
1 pc(s)
- Number of pins
3
100 A
FALSE
3
0-16 A
0
440-440 V
3.05 W
IP40
Front side
FALSE
Screw connection
Toggle
TRUE
50 kA
190-190 A
FALSE
FALSE
FALSE
Built-in device fixed built-in technique
FALSE
TRUE
Documents & Downloads
Datasheet
Datasheet 3755311 Schneider Electric LV510470 Circuit breaker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3755311 Schneider Electric LV510470 Circuit breaker 1 pc(s)
Description

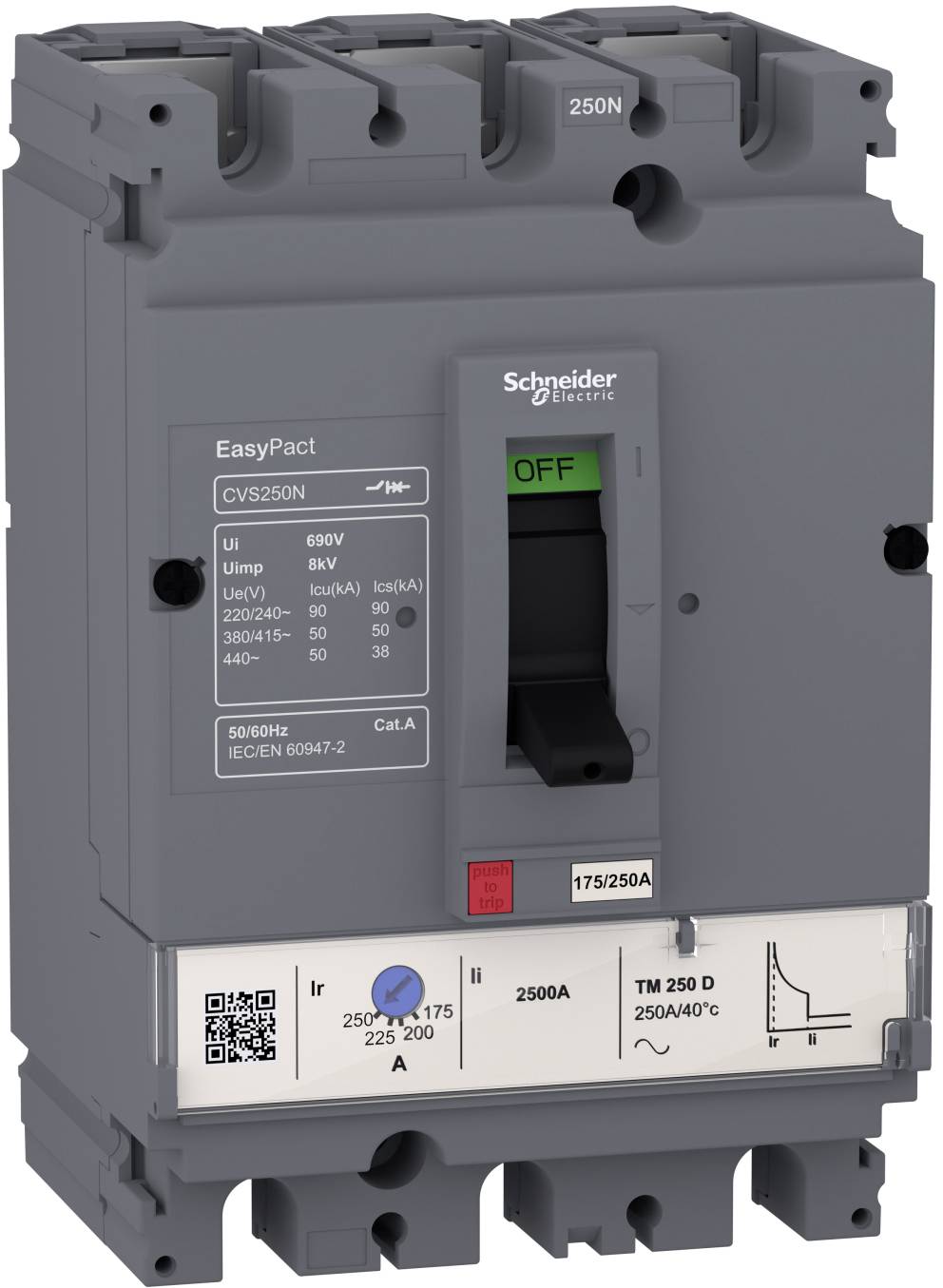

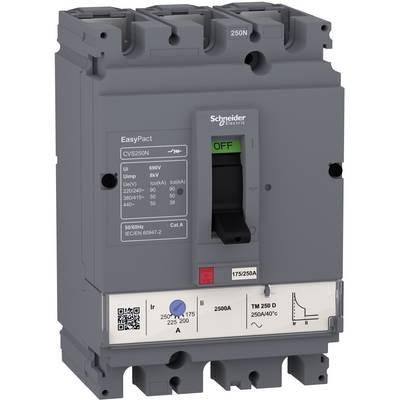

EasyPact CVS100N is a 16 A circuit breaker. The breaking capacity (ICU) is 50kA RMS at 415VAC 50/60Hz. The circuit breaker is 3-pole and has a TM-D trigger for thermo-magnetic protection. The switch complies with IEC60947-2 standard for circuit breakers. This equipment is IEC60947-1 & IEC60664-1 certified for use in pollution level III environments and meets RoHS requirements of the European environmental directive EC/2002/95. The front panel of the rocker arm has protection class IP40, but if it is equipped with an extended turning handle inside the control cabinet, the extended rotation handle also has protection class IP54. This series has slots for electrical auxiliary equipment (MN/MX/OF/SD). The dimensions are 140 mm wide, 255 mm high and 110 mm deep.
