Schneider Electric LV516467 Circuit breaker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Circuit breaker
Type
LV516467
IP rating
IP40
Content
1 pc(s)
Number of pins
4
Datasheet (PDF)
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as changer: 0
- Actuator type: Knob
- Rated continuous current IU 160 A
- Rated short circuit switch-off current ICU at 400 V, 50 Hz: 50 kA
- Rated voltage 440-440 V
- Setting range of the undelayed short-circuit release: 1250-1250 A.
- Suitable for DIN rail mounting: No.
- Device type: Built-in device permanent installation technology
- DIN rail mounting optional: No.
- Built-in ground fault protection: No.
- Complete unit with protection unit: Yes
- With trip indicator: Yes
- With integrated undervoltage release: No.
- Motor drive integrated: No.
- Motor drive optional: No.
- Location of the main circuit connector: Front
- Power loss: 10.78 W
- Overload release current setting 0-125 A
- Product type
Circuit breaker
- Type
LV516467
IP40
- Content
1 pc(s)
- Number of pins
4
160 A
FALSE
4
0-125 A
0
440-440 V
10.78 W
IP40
Front side
FALSE
Screw connection
Toggle
TRUE
50 kA
1250-1250 A
FALSE
FALSE
FALSE
Built-in device fixed built-in technique
FALSE
TRUE
Documents & Downloads
Datasheet
Datasheet 3755333 Schneider Electric LV516467 Circuit breaker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3755333 Schneider Electric LV516467 Circuit breaker 1 pc(s)
Description

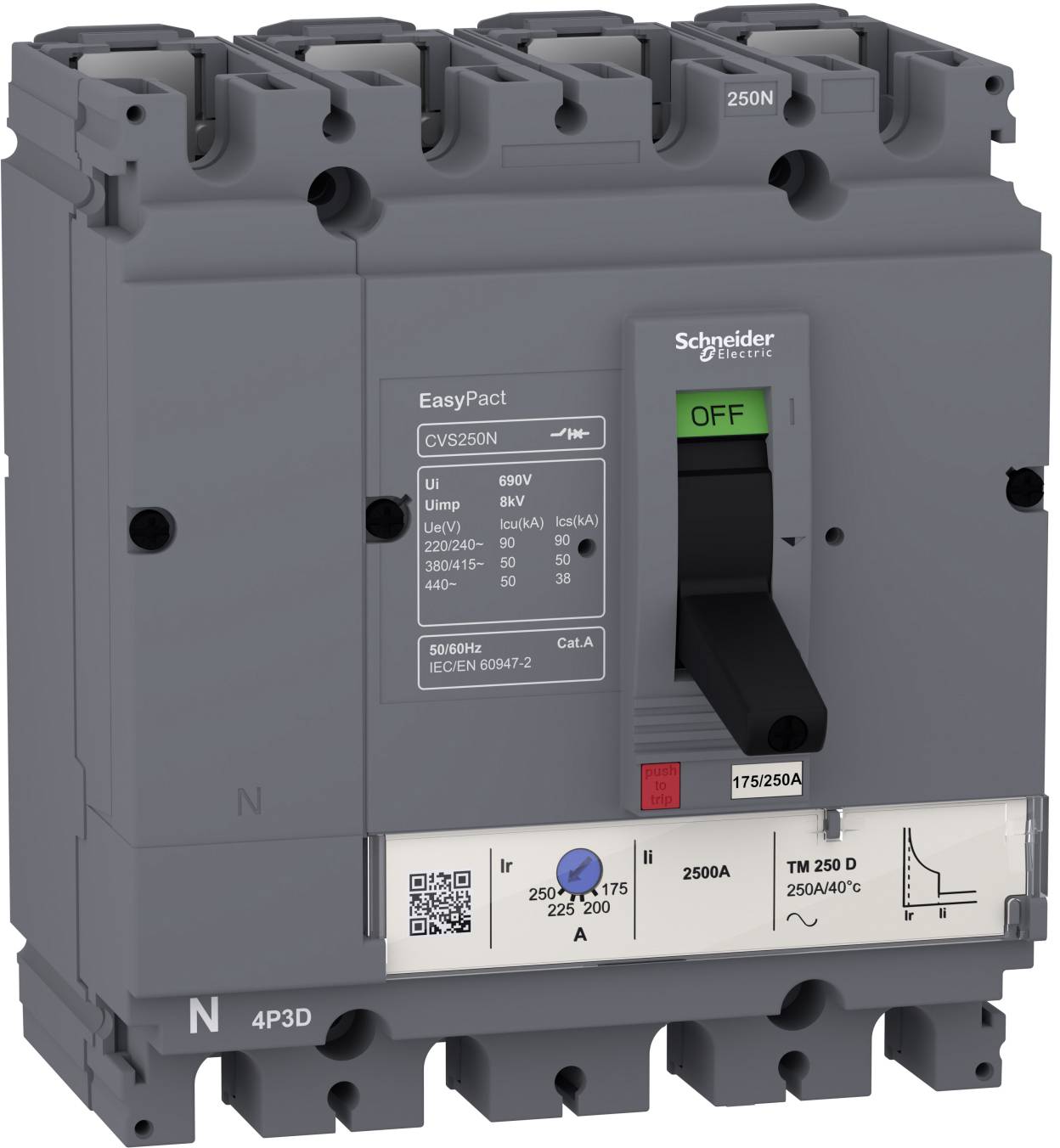

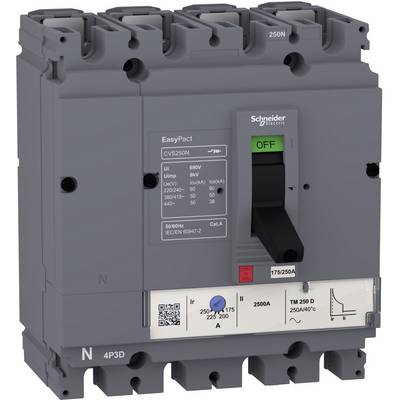

The EasyPact CVS250N is a fixed-mount 4-pole circuit-breaker with high performance and cost-saving functionality. It is the ideal choice for the protection of small and medium-sized buildings. The breaking capacity (ICU) is 50kA RMS at 415VAC 50/60Hz. The TMD trigger offers an adjustable thermal overload protection and a solid magnetic protection. EasyPact CVS160N conforms to the international standards (IEC 60947, CCC, EAC). It can be installed in Class II insulation distribution cabinets as it is a Class II front panel device (IEC 60664-1).
