Schneider Electric LV525301 Circuit breaker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Circuit breaker
Type
LV525301
IP rating
IP40
Content
1 pc(s)
Number of pins
3
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 570.59 / piece)
€
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as changer: 0
- Actuator type: Knob
- Rated continuous current IU 250 A
- Rated short circuit switch-off current ICU at 400 V, 50 Hz: 25 kA
- Rated voltage 440-440 V
- Setting range of the undelayed short-circuit release: 1250-1250 A.
- Suitable for DIN rail mounting: No.
- Device type: Built-in device permanent installation technology
- DIN rail mounting optional: No.
- Built-in ground fault protection: No.
- Complete unit with protection unit: Yes
- With trip indicator: Yes
- With integrated undervoltage release: No.
- Motor drive integrated: No.
- Motor drive optional: No.
- Location of the main circuit connector: Front
- Power loss: 11.78 W
- Overload release current setting 0-160 A
- Product type
Circuit breaker
- Type
LV525301
IP40
- Content
1 pc(s)
- Number of pins
3
250 A
FALSE
3
0-160 A
0
440-440 V
11.78 W
IP40
Front side
FALSE
Screw connection
Toggle
TRUE
25 kA
1250-1250 A
FALSE
FALSE
FALSE
Built-in device fixed built-in technique
FALSE
TRUE
Documents & Downloads
Datasheet
Datasheet 3755336 Schneider Electric LV525301 Circuit breaker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3755336 Schneider Electric LV525301 Circuit breaker 1 pc(s)
Description

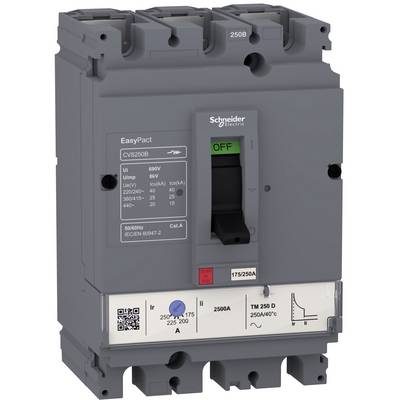

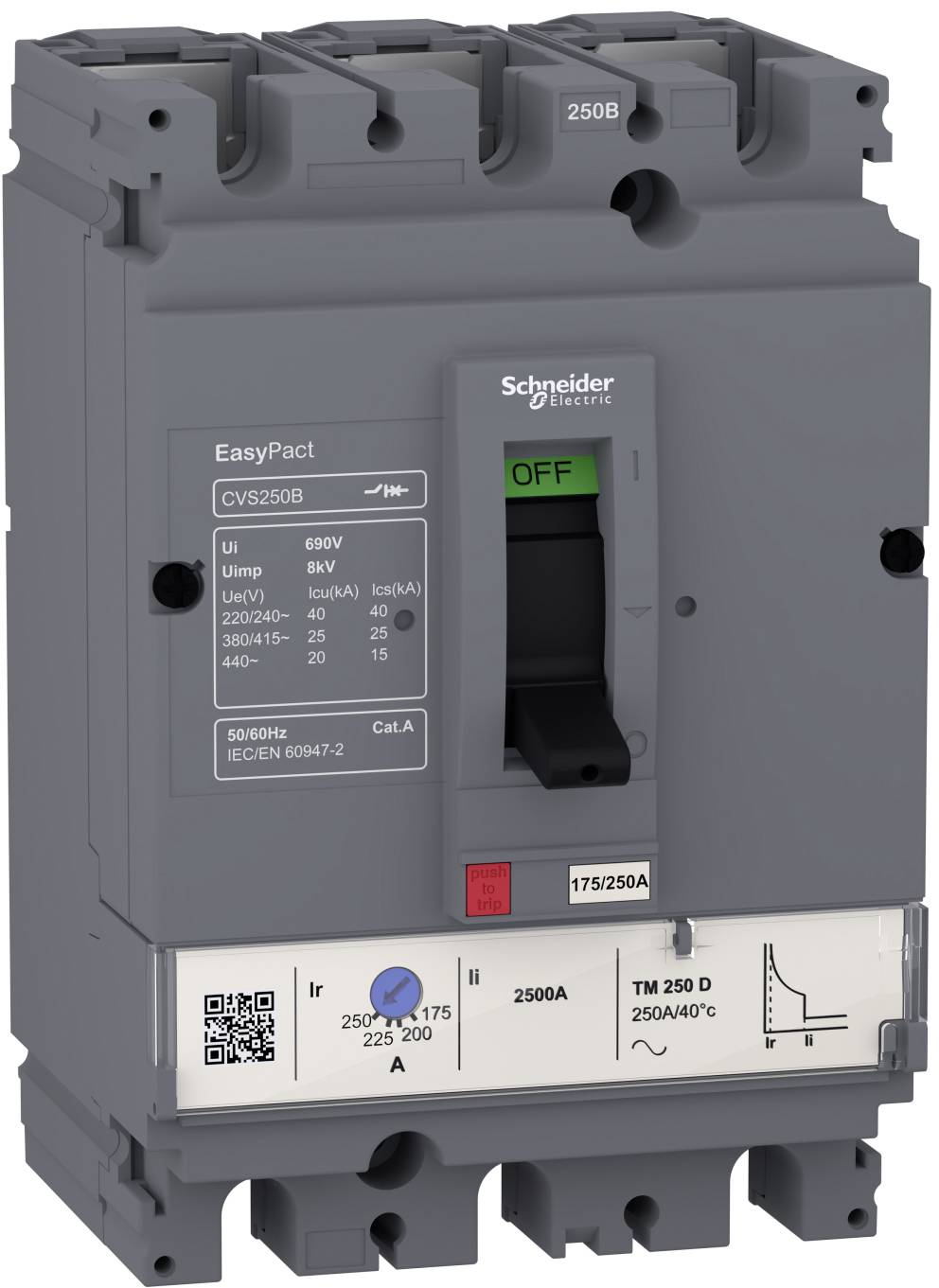

The EasyPact CVS250B is a fixed-mount 3-pole circuit-breaker with high performance and cost-saving functionality. It is the ideal choice for the protection of small and medium-sized buildings. The breaking capacity (ICU) is 25kA RMS at 415VAC 50/60Hz. The operating voltage is 440VAC 50/60Hz. This product has a thermal-magnetic trigger (TMD) with a nominal current of 160 A. The TMD trigger offers an adjustable thermal overload protection and a solid magnetic protection. This 3-pole version (105mm x 161mm x 86mm) can be equipped with a variety of optional functions and accessories. EasyPact CVS250B conforms to the international standards (IEC 60947, CCC, EAC). It can be installed in Class II insulation distribution cabinets as it is a Class II front panel device (IEC 60664-1).
