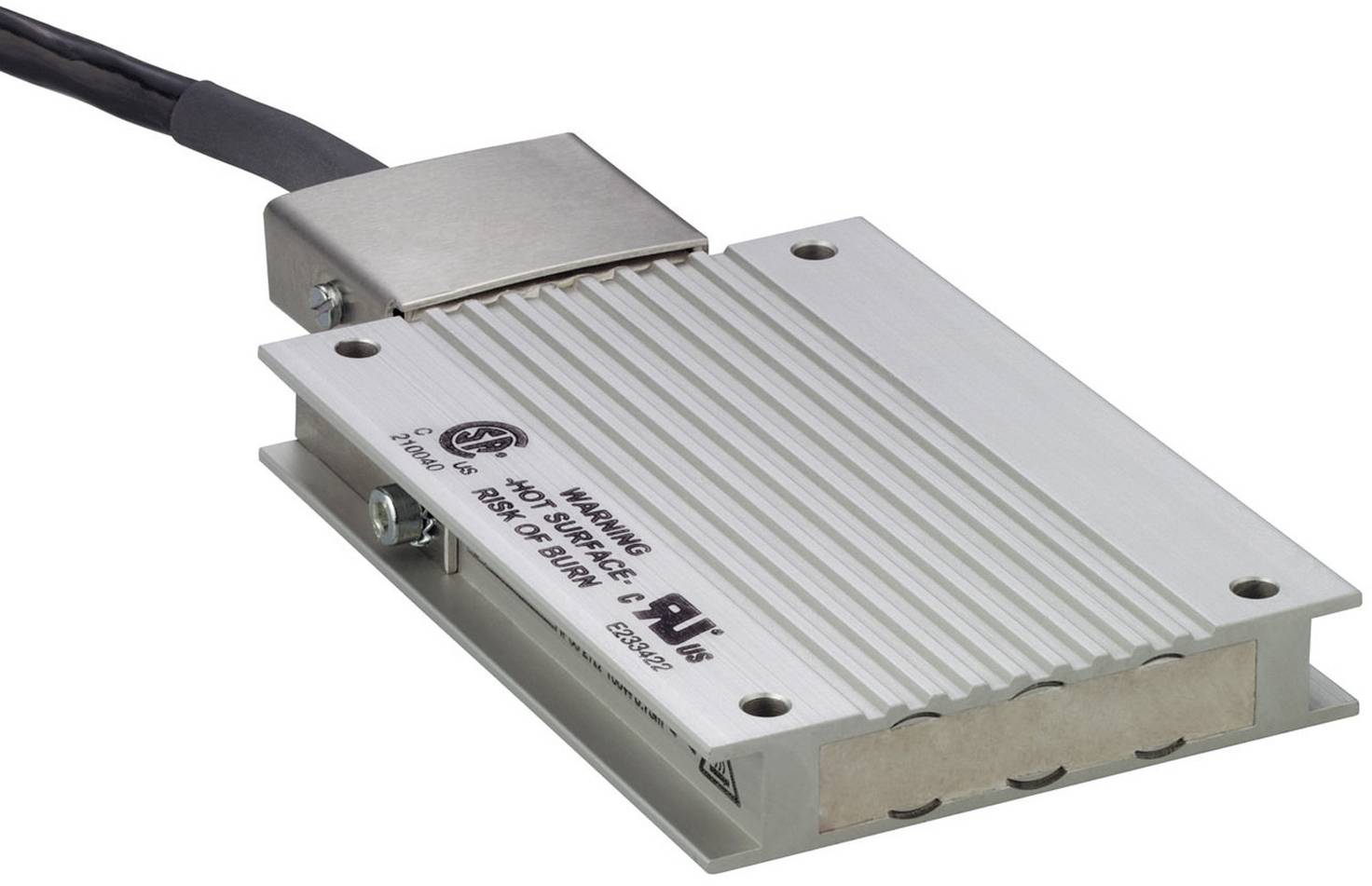

Schneider Electric LXMMCABR120S100 Brake resistor

The braking resistor is part of the Lexium MC12 Multi-Carrier series, a modular transport system. The external braking resistor is required for applications where the internal resistance cannot absorb the braking energy. This braking resistor allows the carrier to decelerate more quickly by dissipating the braking energy and allowing maximum temporary braking force. It has an ohmic value of 3 Ohm. It has a continuous output of 100 W. The IP level is 65. It weighs 0.6 kg. This product is certified by CE, UKCA, RCM, TÜV certification, China RoHS and WEEE. It has a 2 meter long connecting cable. This braking resistor should be connected to the connection module. Next-generation transport system with unprecedented ease of installation and commissioning. Lexium MC12 Multi Carrier is an innovative transport system for moving, positioning or grouping objects in machines for discrete processes.

This text is machine translated.
