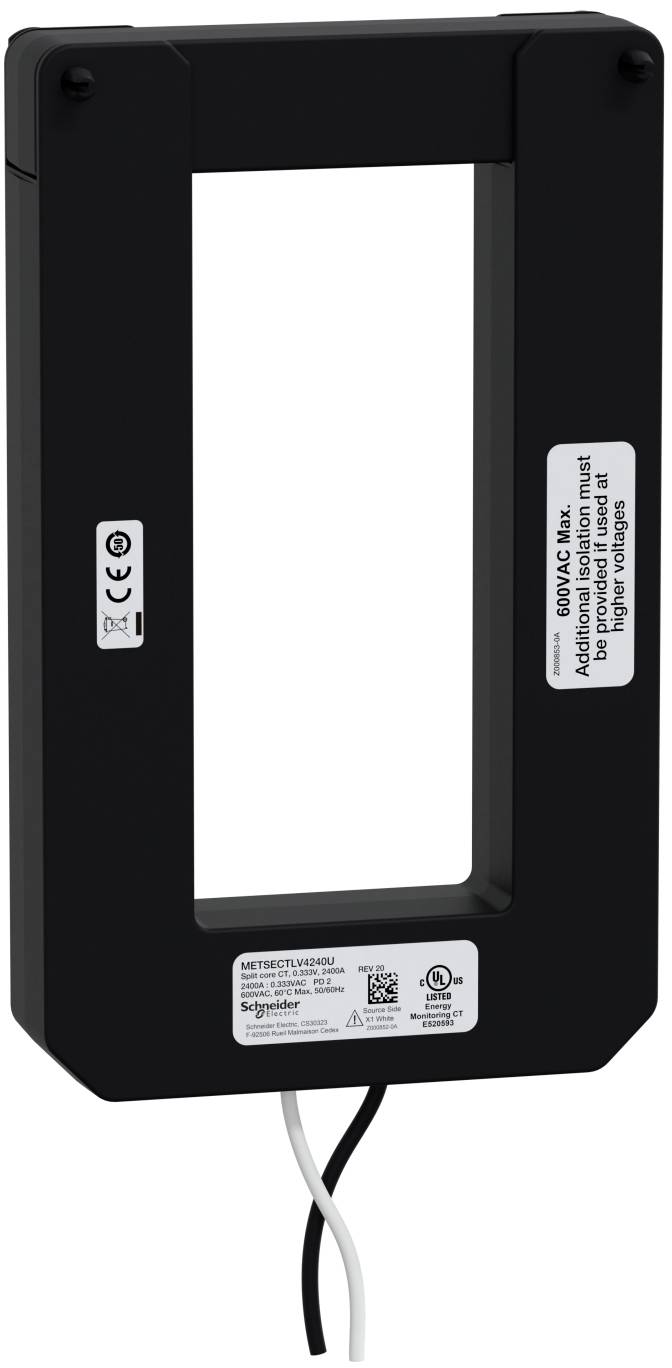

Schneider Electric METSECTLV4240U Cable current transformer 1 pc(s)

This low voltage transformer LVCT is a cable converter for PowerLogic EM4235, EM3570X, Acti 9 iEM3455, iEM3465 and ION9000. Ideal for retrofitting Schneider Electric energy meters and power analyzers that accept a low voltage transformer input LVCT. The converter is designed for a circuit of 2400A. 0.333 V output, (size - large). Dimensions 206 x 125 x 30, inner dimensions 146 x 63 mm, rated current IP 800 A. Accuracy class 1 in accordance with IEC 61869-2. Frequency range 50/60 Hz. Length of feed line 2.4 m.
